LED Double Density High Output Tape Lights 12V DC 16 ft or 100 ft Reel - Elumalight

LED Double Density High Output Tape Lights 12V DC 16 ft or 100 ft Reel

SKU EL-HO3-60K-16-12

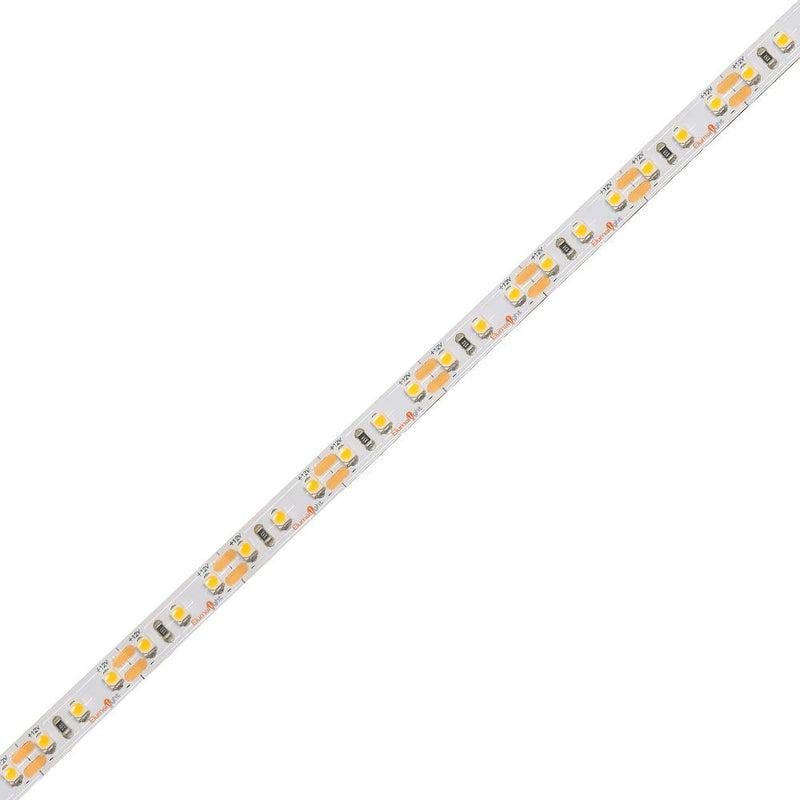

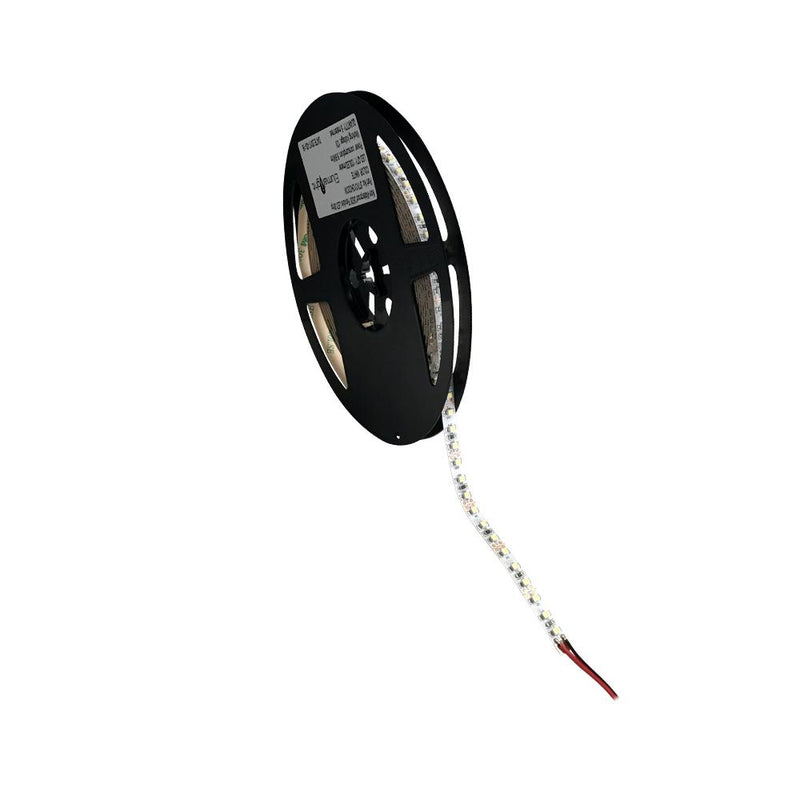

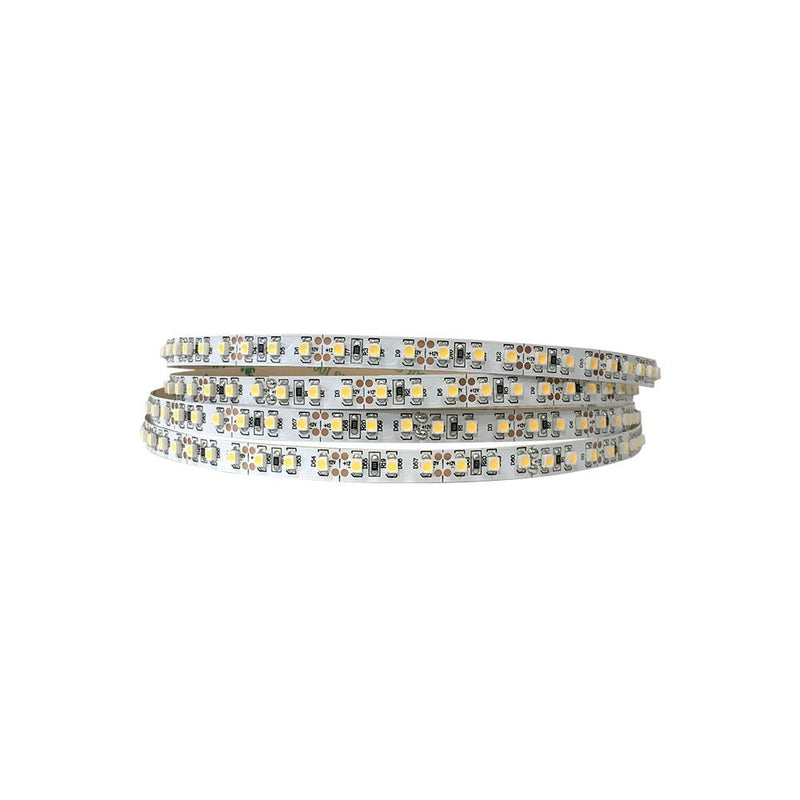

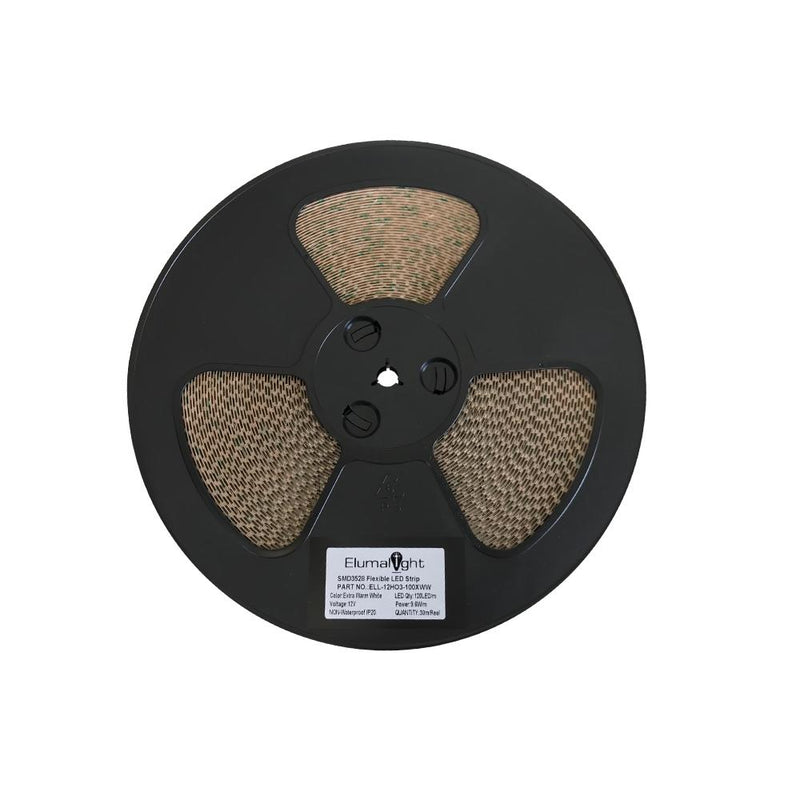

12V DC LED High Output Double Density Tape Lights are made with commercial-grade SMD 3528 Chipsets with 120 LED Chips per meter length. Featuring 90+ CRI with high output and even illumination and perfectly designed for tradeshow decoration, exhibition lighting, retail display lighting, back-lighting applications, and more. Available in 16.4 ft. or 100 ft. reels with various CCT options to choose from.

The Double Density LED Tape Light is fully dimmable when used with LED Dimmable Drivers. It is UL listed to ensure the durability and safety of the LED tape light's lifespan.

The LED Double Density Strip Lights are made with wire leads on the ends of each reel and can be cut every 1 inch at its cut marking points, allowing you to cut pieces to the length desired.

* Required: Requires a non-dimming or dimming 12 volt DC driver.

Key Features

  • Maintenance-free
  • Solid-State Construction
  • High shock and Vibration Resistance
  • SMD 3528 LED Chips are high intensity, ultra-bright, and energy-efficient
  • No RF interference
  • Up to 50,000 hours Lifespan
  • UL, ETL Listed

Applications

  • Decorative Lighting for Tradeshows, Exhibition, Retail Displays
  • Architectural lighting for corridors, canopies, archways, or windows
  • Downlighting or Uplighting Applications
  • Backlighting or Edge-Lighting
  • Under-cabinet, Under-Counter, or cove lighting
  • Custom DIY projects

Specifications

View Spec Sheet

Brightness 350 Lumens/ft
1148 Lumens/meter
Power (Watts) 3.2 watt/ft
10.5 watt/meter
Input Voltage 12V DC
LED CCT & Colors 6000K Cool White
4100K Natural White
3000K Warm White
2700K Extra Warm White
CRI 90+
IP Rating IP20
Environment Indoor Use - Dry Location
LED Beam Angle 120°
LED Density 36 LEDs/ft
600 LEDs/reel
LED Chip Size SMD 2835
LED Spacing 0.33 in / 8.35 mm
Length Options 16.4 ft / 5 meters long
100 ft / 30.5 meters long
Width 0.31 in / 8mm wide
Height 0.06 in / 1.6 mm thick
Cutting Increment 1 in / 25.4 mm
at cut marking
Adhesive Backing 3M Adhesive
Manufacturer Elumalight
Rating UL, ETL, RoHS
Avg. Lifetime ± 30,000 - 50,000 hours
Warranty 3 years limited
Power Supplies
 12V DC Drivers
Accessories LED Tape Light Accessories
