LED Angle 45 Aluminum Channel
SKU EL-CH-108-FR

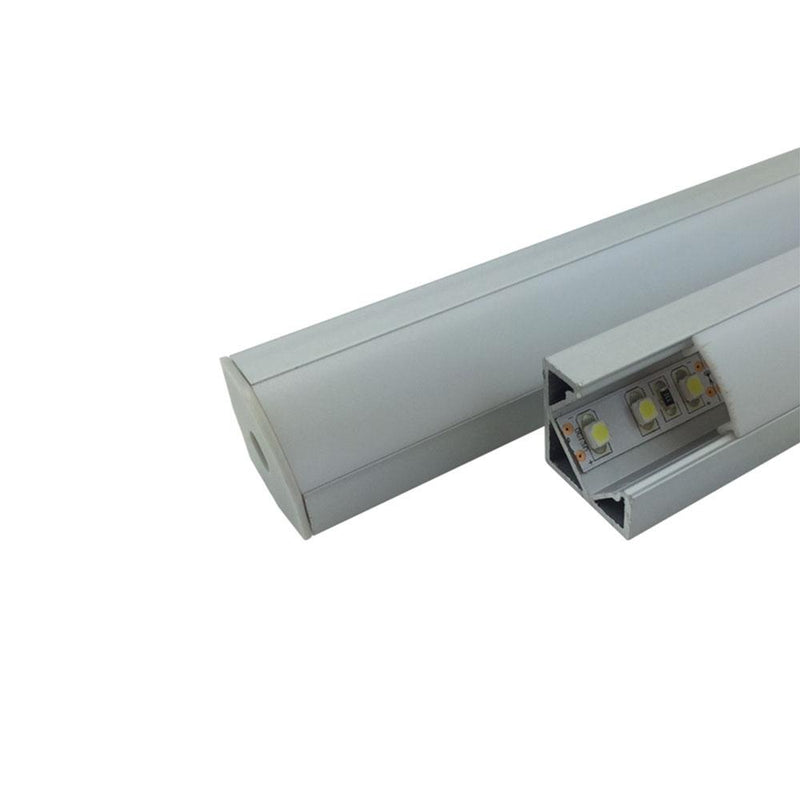

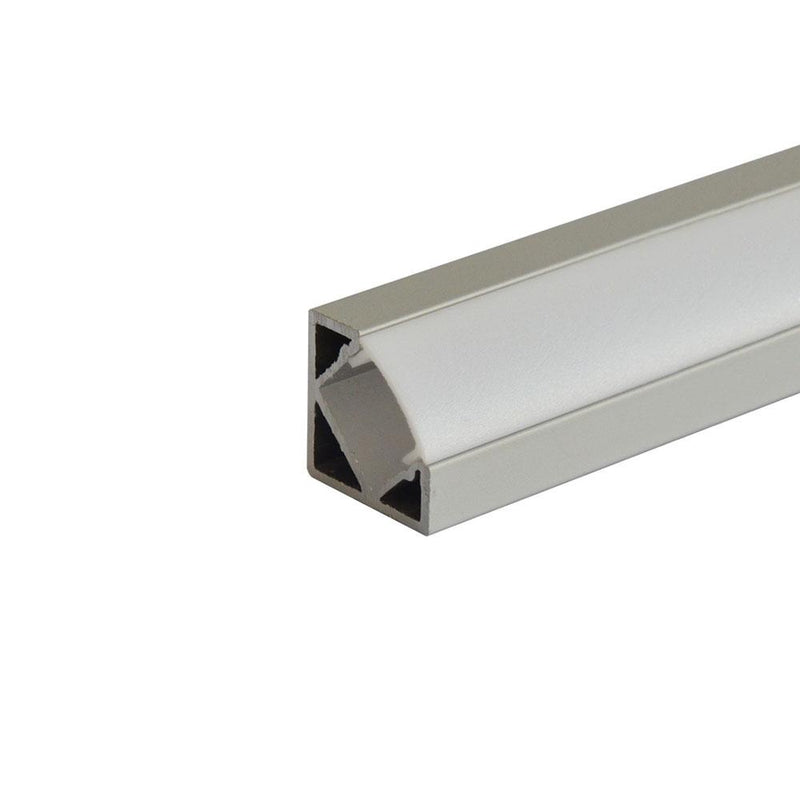

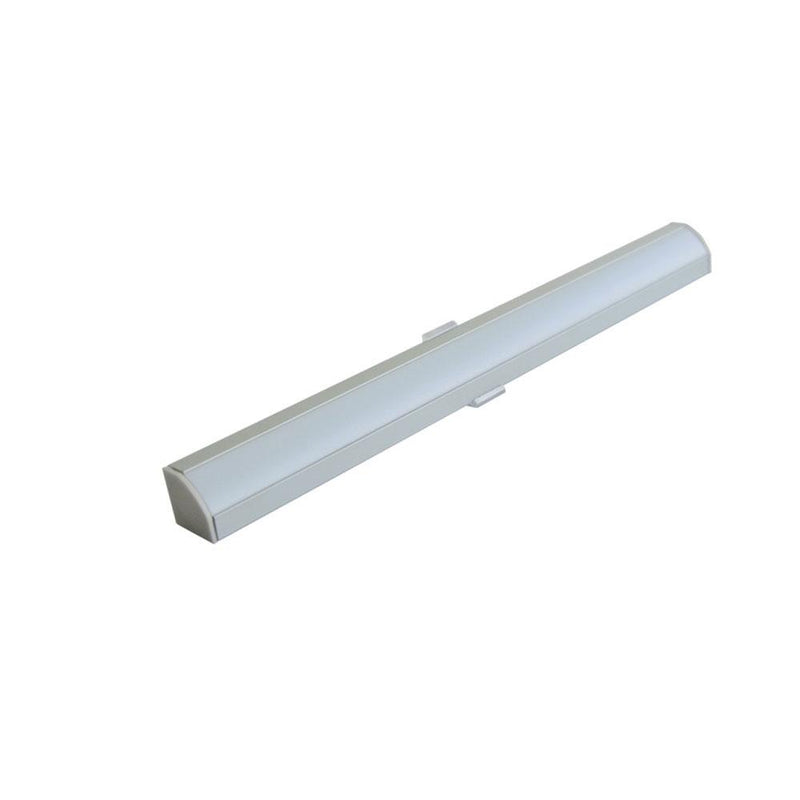

LED Angle 45 Aluminum Channel includes our v-shaped aircraft-grade aluminum channel and compatible frosted or opal white lens. Creating a rigid, modern, and sleek style LED strip light installation has never been easier.
Key Features
- It comes in 2-meters sections and can be custom cut to any length.
- 18.4 mm wide by 18.4 mm height.

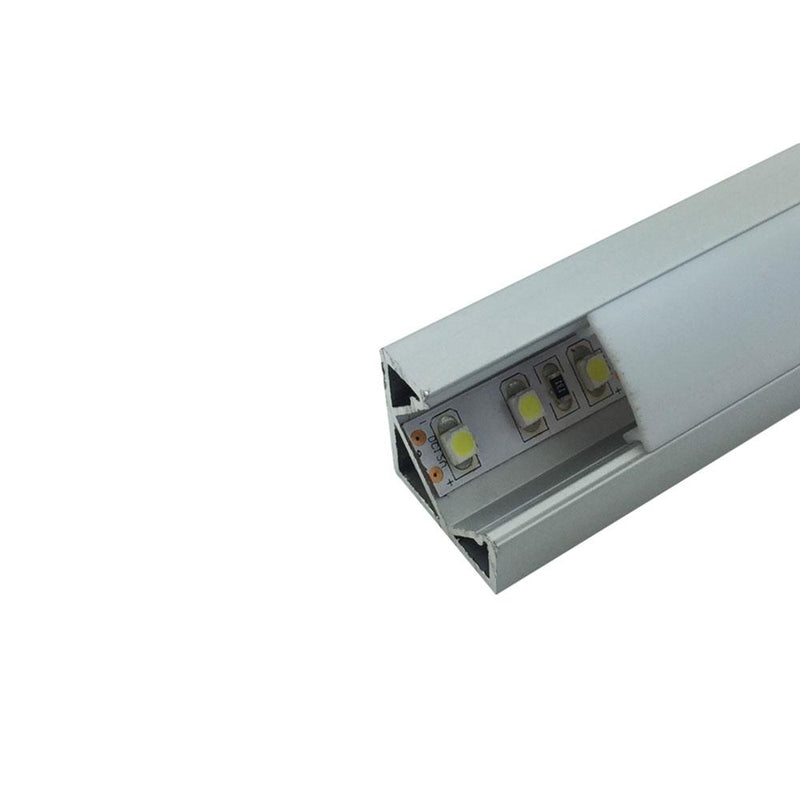

- Perfect for mounting LED Strip Light up to 12 mm in width.

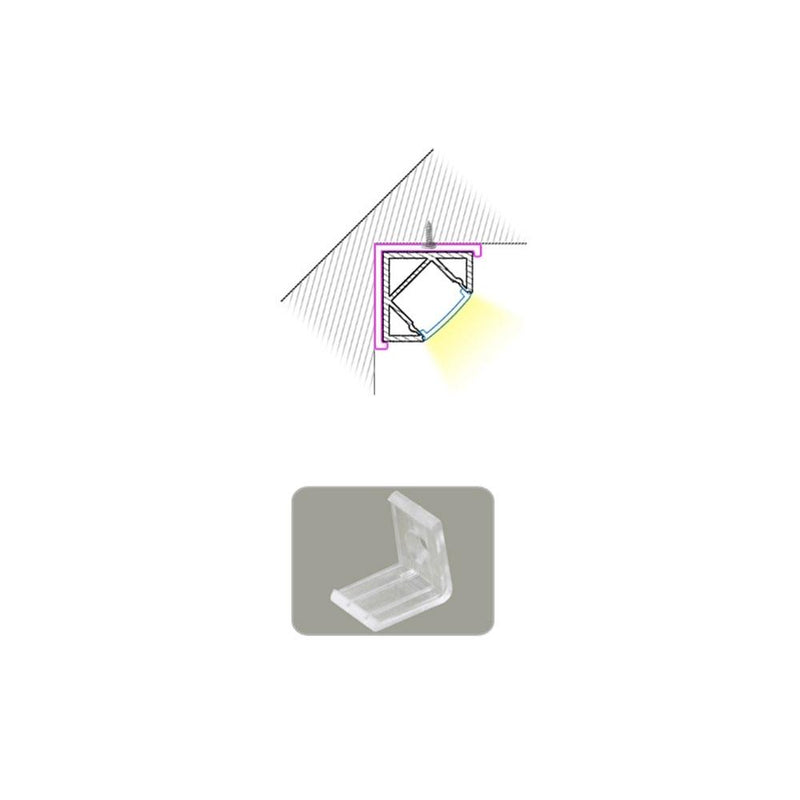

- V-shaped for angled or corner lighting applications.

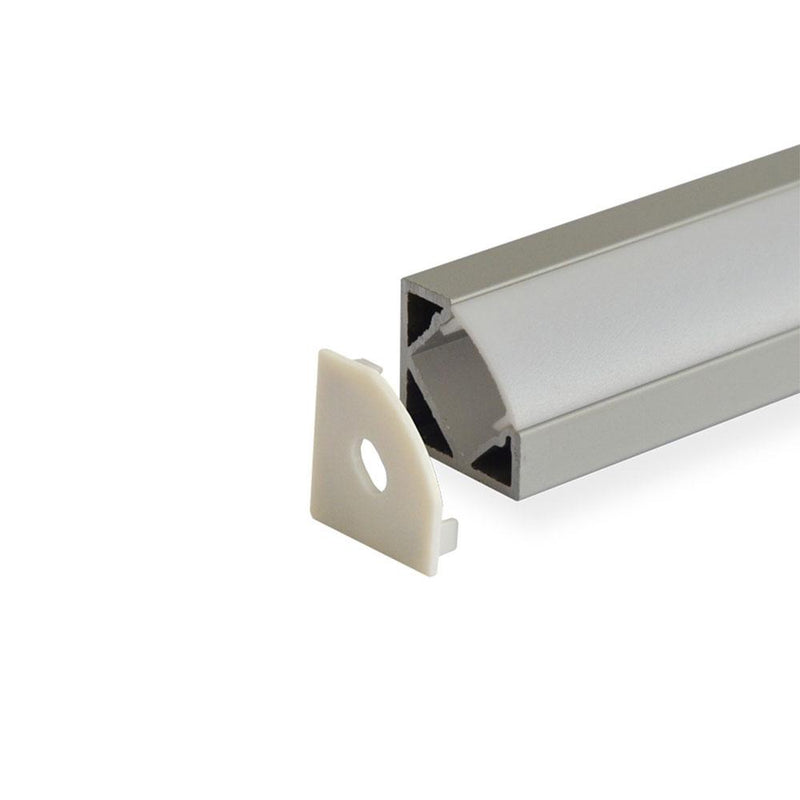

- Includes aluminum channel, diffuser, 2 mounting clips, and 2 end caps.
- The Channel lens protects LED strip light from the environment and creates diffused lighting effects. Easy to install, simply clip the diffuser lens into the aluminum channel.
- The rigid and dustproof channel can be mounted onto any flat surface.
- LED Aluminum Mounting Channels does not qualify for Free Standard Shipping offer. Additional shipping charges will be billed separately.
- Aluminum channels are not returnable due to the packaging and shipping costs.
Applications
- For use with LED Strip lights up to 12 mm in width.
Specifications

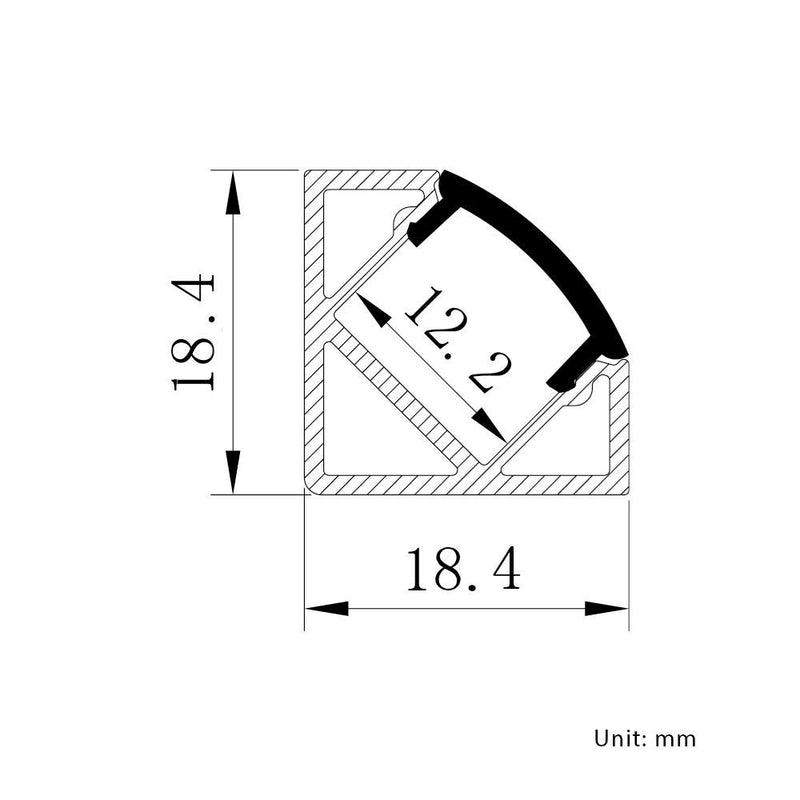

| Channel Height | 0.71 in / 18.4 mm thick |
|---|---|
| Inside Width | 0.48 in / 12.2 mm wide |
| Outside Width | 0.71 in / 18.4 mm wide |
| Length | 78 in / 2 meters long |
| LED Strip Width | 12 mm |
| Lens Finish | Clear Frost or Opal White |
| Environment | Indoor Use - Dry Location |
| Channel Finish | Aluminum |
| Manufacturer | Elumalight |
