LED Regular Mini Slim Aluminum Channel

SKU EL-CH-103-4
Original price $12.56 - Original price $27.48
Original price
$12.56
$12.56 - $27.48
Current price $12.56

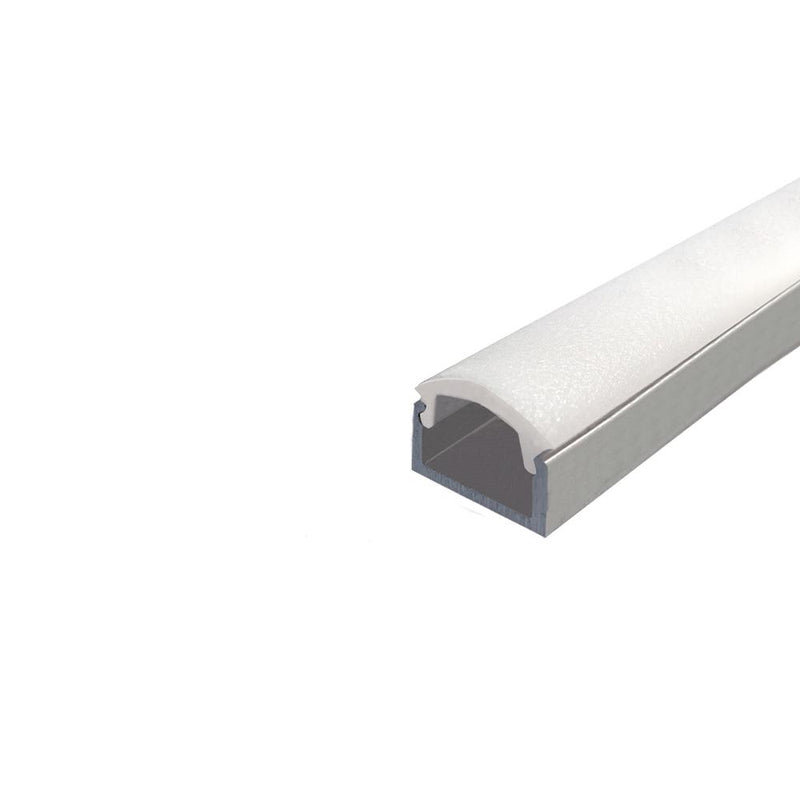

LED Regular Mini Slim Aluminum Channel includes our aircraft grade aluminum channel and compatible curve-shaped white lens.  It can help to create a sleek and modern style for completely customized LED tape lighting applications.

Key Features

  • It comes in 1.22-meter (4 ft) or 2.44-meter (8 ft) sections and can be custom cut to any length.
  • 12.5 mm wide by 8.89 mm height.
  • Perfect for mounting LED Strip Light up to 10 mm in width.
  • Rigid and dustproof housing can be recessed or surface mounted.
  • Includes aluminum channel, and white diffuser.
  • The Channel lens protects LED strip light from the environment and creates diffused lighting effects. Easy to install, simply clip the diffuser lens into the aluminum channel.
  • LED Aluminum Mounting Channels does not qualify for Free Standard Shipping offer. Additional shipping charges will be billed separately.
  • Aluminum channels are not returnable due to the packaging and shipping costs.

Applications

  • For use with LED Strip lights up to 10 mm in width.

Specifications

View Spec Sheet

Channel Height 0.35 in / 8.89 mm thick
Inside Width 0.39 in / 10 mm wide
Outside Width 0.49 in / 12.5 mm wide
Length 48 or 96 in (1.22 or 1.44 m) Long
LED Strip Width 10 mm
Lens Finish Opal White
Environment Indoor Use - Dry Location
Channel Finish Aluminum
Manufacturer Elumalight
