LED Slim Surface Aluminum Channel

SKU EL-CH-102-FR
Original price $15.00 - Original price $15.00
Original price
$15.00
$15.00 - $15.00
Current price $15.00

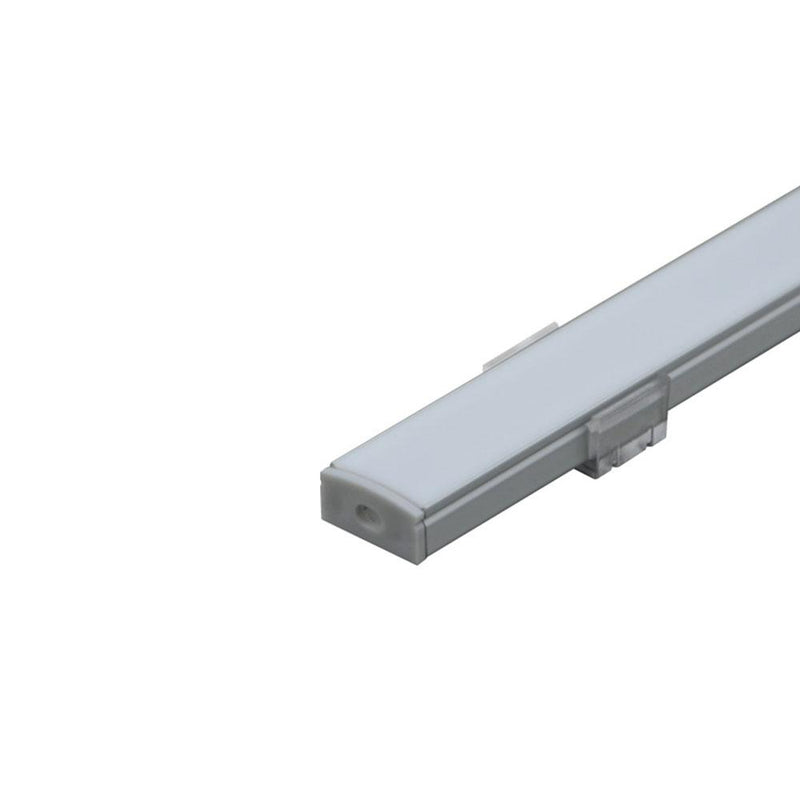

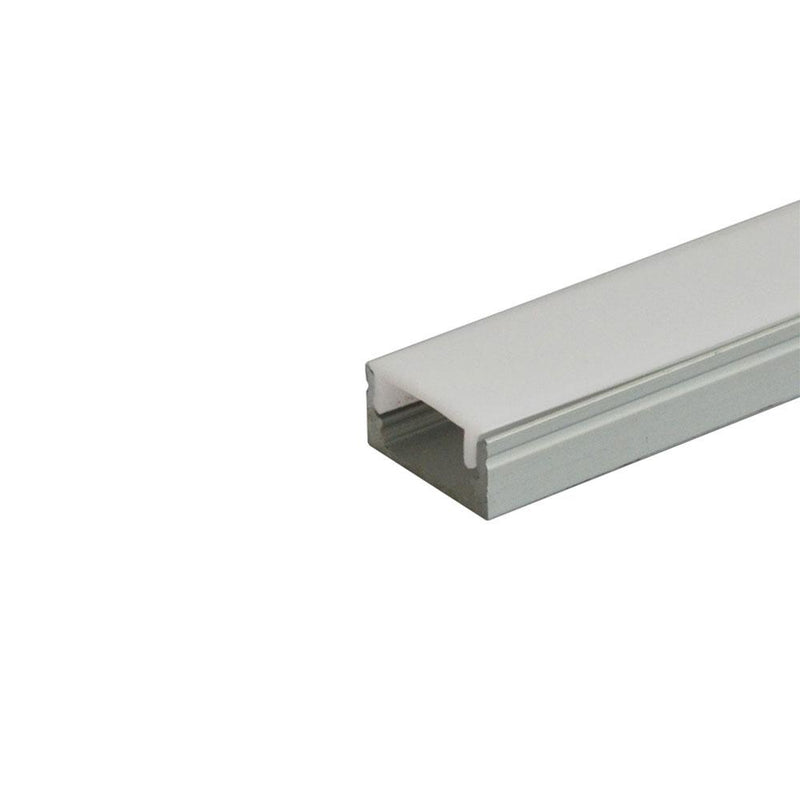

LED Slim Surface Aluminum Channel includes our aircraft grade aluminum channel and compatible frosted lens. Creating a rigid, modern, and sleek style LED strip light installation has never been easier.

Key Features

  • It comes in 2-meter sections and can be custom cut to any length.
  • 17.02 mm wide by 8.89 mm height.
  • Perfect for mounting LED Strip Light up to 10 mm in width.

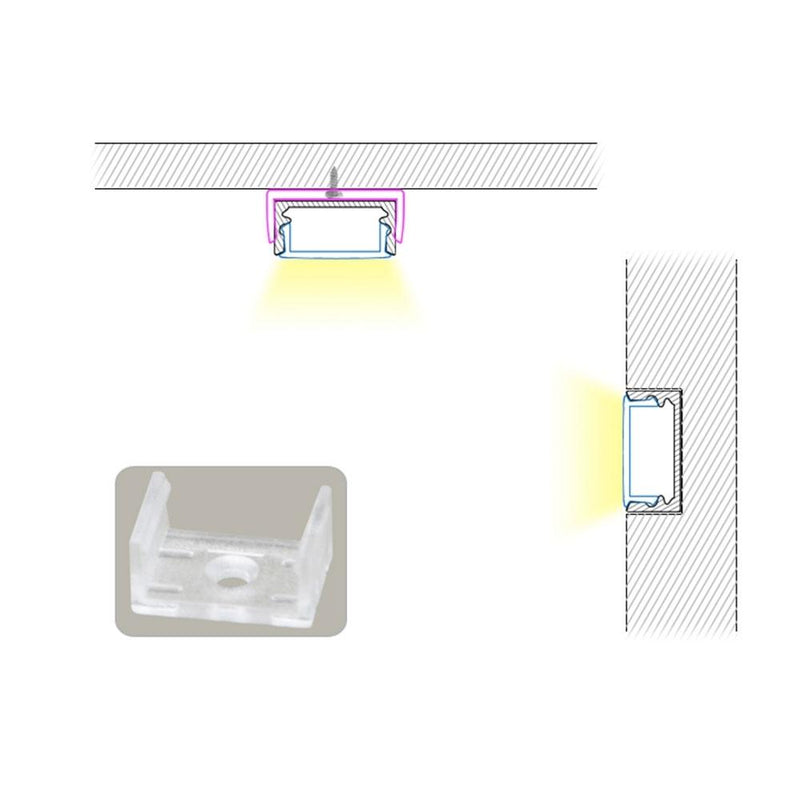

  • Rigid and dustproof housing can be recessed or surface mounted.

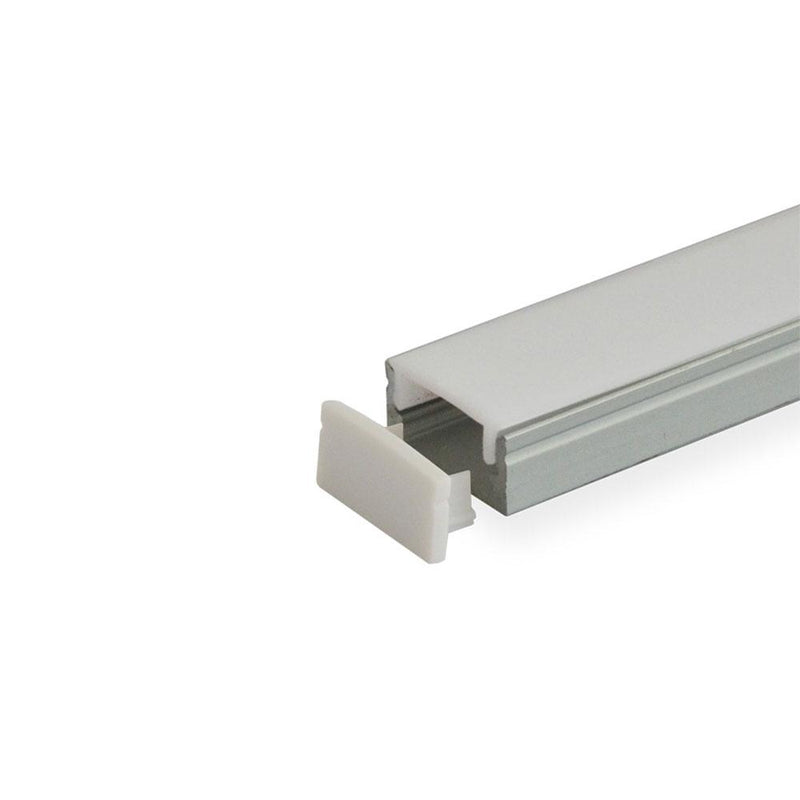

  • Includes aluminum channel, diffuser, 2 mounting clips, and 2 end caps.
  • The Channel lens protects LED strip light from the environment and creates diffused lighting effects. Easy to install, simply clip the diffuser lens into the aluminum channel.
  • LED Aluminum Mounting Channels does not qualify for Free Standard Shipping offer. Additional shipping charges will be billed separately.
  • Aluminum channels are not returnable due to the packaging and shipping costs.

Applications

  • For use with LED Strip lights up to 10 mm in width.

Specifications

View Spec Sheet

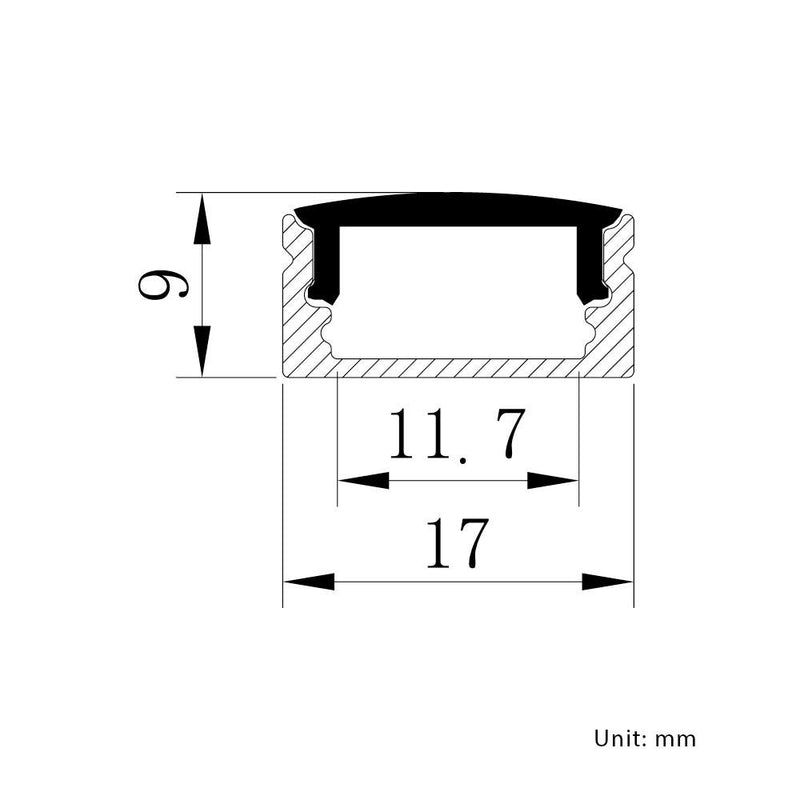

Channel Height 0.35 in / 8.89 mm thick
Inside Width 0.46 in / 11.7 mm wide
Outside Width 0.67 in / 17.02 mm wide
Length 78.74 in / 2 meters long
LED Strip Width 10 mm
Lens Finish Frosted or Opal White
Environment Indoor Use - Dry Location
Channel Finish Aluminum
Manufacturer Elumalight
