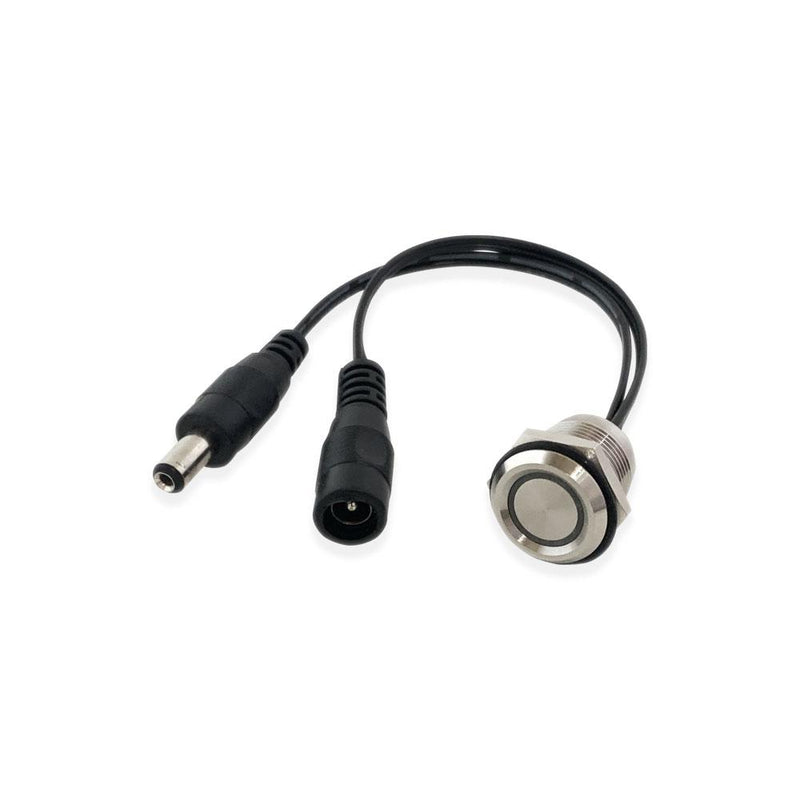

LED Inline Touch Dimmer Switch 12 or 24V 6A

SKU EL-RL-DIM
Original price $26.25 - Original price $26.25
Original price
$26.25
$26.25 - $26.25
Current price $26.25

This 6A LED Light dimmer uses PWM dimming and touch-sensitive technology to dim single color 12 or 24V DC LED Lights. It has a smooth 5-100% dimming range and can be used in a variety of applications such as cabinet lighting, craft projects, lightboxes, retail display, and exhibit lighting control.

Simply connect the 5.5 x 2.1 mm male and female barrel connectors to the power input and LED output.

Need help with your LED lighting applications? Our lighting experts are here to help! Contact us today for assistance with lighting plan or installation instructions.

Key Features

  • Short touch to turn On/Off, Long touch for dimming
  • 6 Amp peak max load
  • 12V or 24V DC max output to protect LEDs
  • Male and Female DC barrel plug for easy installation

Applications

  • Trade Show & Exhibit Lighting
  • Retail Display Lighting
  • Architectural Lighting
  • Hotels, Casinos, and Clubs
  • Custom Lighting

Specifications

  • Input Voltage: 12 or 24V DC
  • Output Channels: 1
  • Input Connection: 2.1 mm Female DC barrel plug (Positive +, Negative -)
  • Output Connection: 2.1 mm Male DC barrel plug (Positive +, Negative -)
  • Max Load: 6 amp, 72 Watts (12V DC), 144 Watts (24V DC),
  • Environment: Dry Location
  • IP Rating: IP20
  • Power Cord Length: 5.5 in. from each connector to switch
  • Cut out size:  16 mm diameter x 18 mm depth
  • Finish: Black cord with Satin Nickel Switch
  • Warranty: 1 Year Limited
