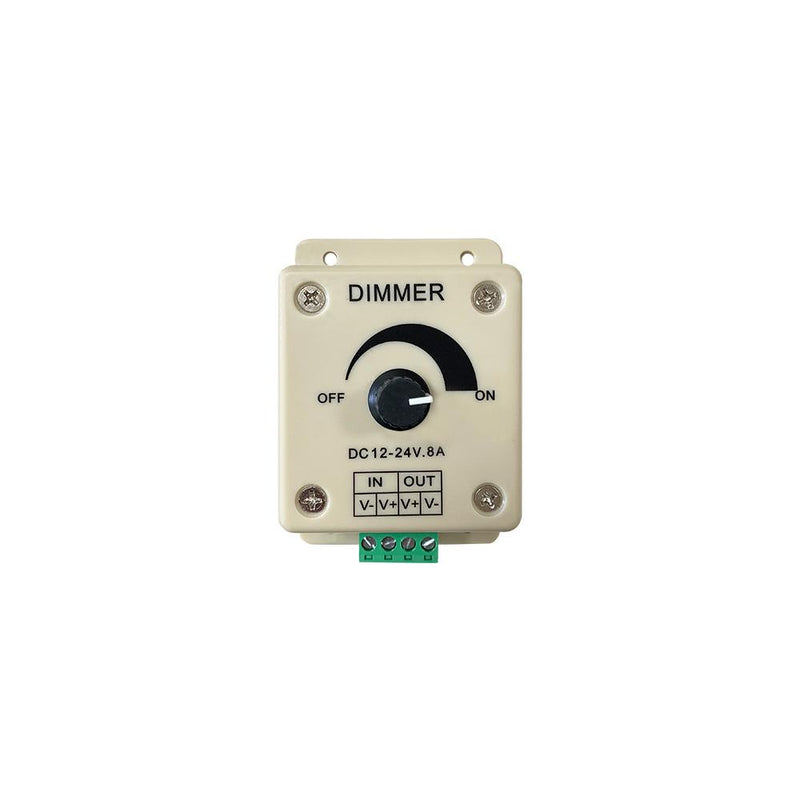

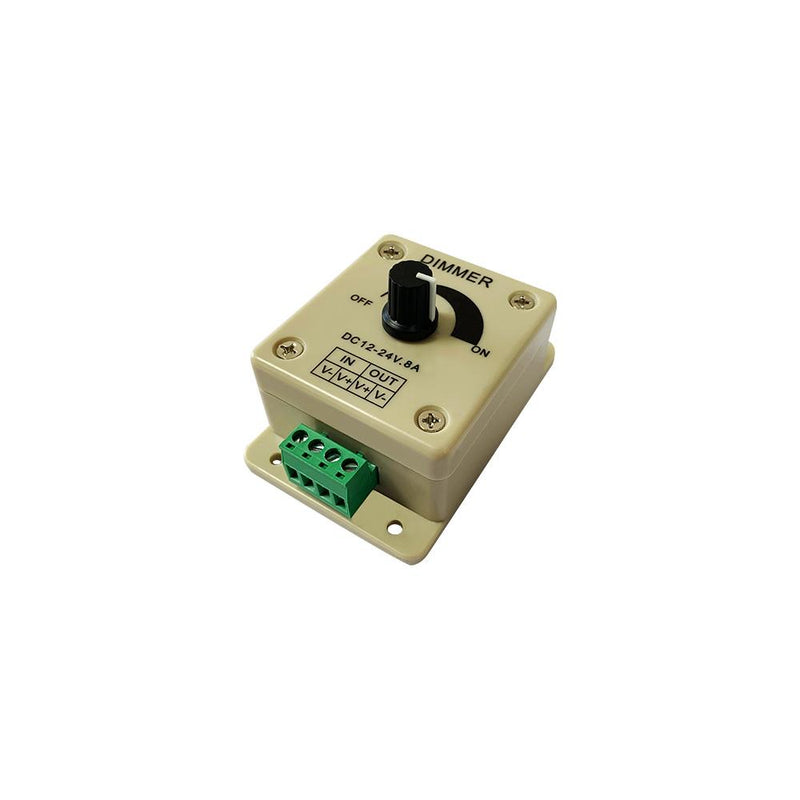

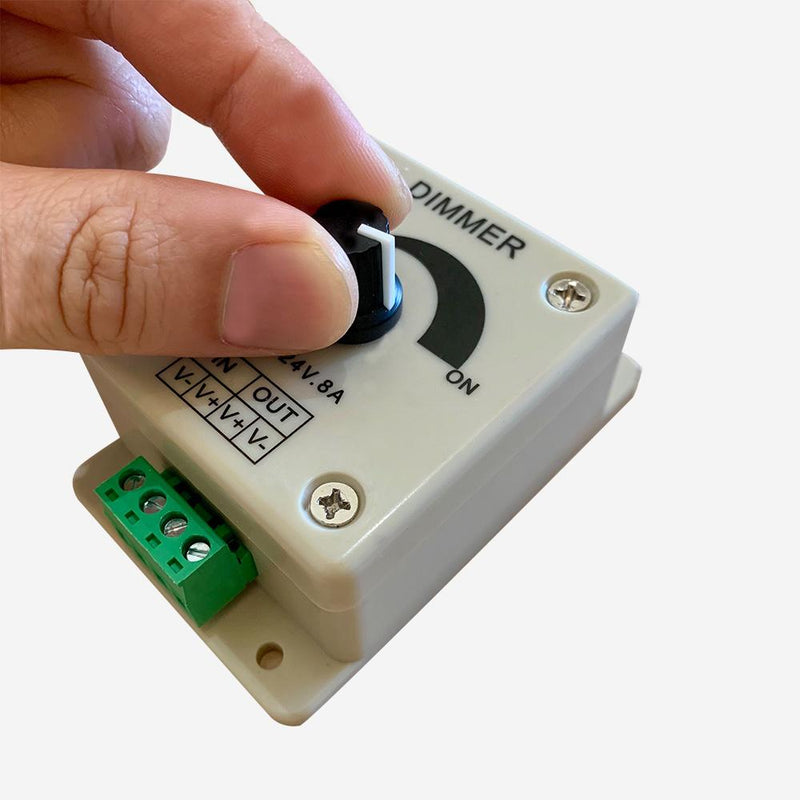

LED Rotary Knob Dimmer Switch 12 or 24V
SKU EL-R-DIM12-24
Original price
$8.68
-
Original price
$8.68
Original price
$8.68
$8.68
-
$8.68
Current price
$8.68

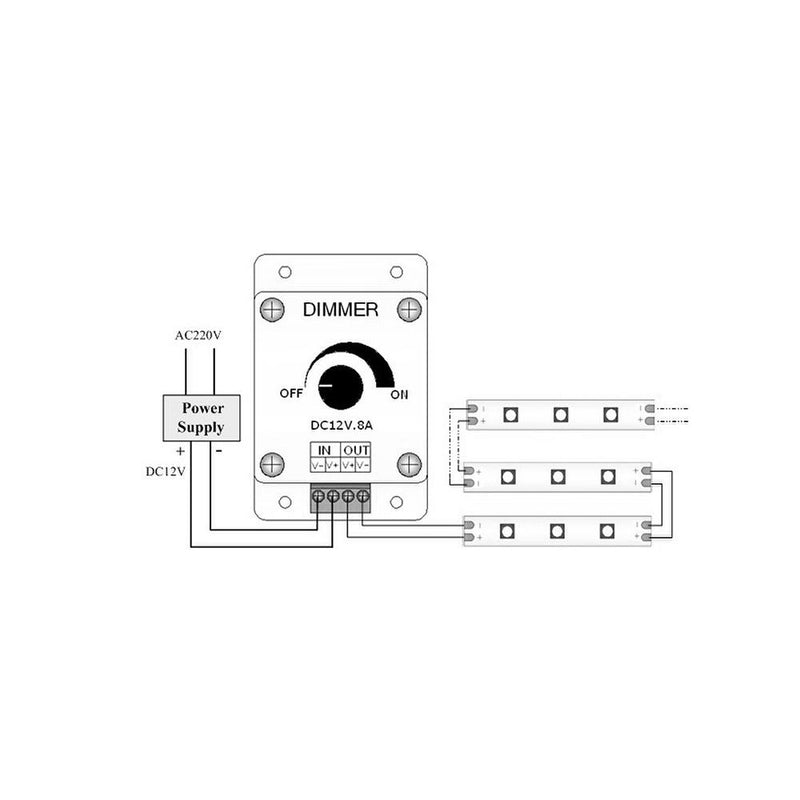

The LED Rotary Knob Dimmer Switch is used for our 12 or 24V LED lighting. It features high quality and 100% brightness adjustable dimming. They are easy to install and adjust the lighting smoothly without any flickering.
Need help with your LED lighting applications? Our lighting experts are here to help! Contact us today for assistance with the lighting plan or installation instructions.
Key Features
- High freq. pulse dimming ensures no flicker (~690 Hz)
- Easy to Install and Use
- ~8 Amp peak max load
- 12V or 24V DC max output to protect LED
- Input and output screw-down terminal block connections
- Screw tabs for easy mounting
Applications
- Trade Show & Exhibit Lighting
- Retail Display Lighting
- Architectural Lighting
- Hotels, Casinos, and Clubs
- Custom Lighting Shows
- Stage Lighting
Specifications
View Spec Sheet- Input Voltage: 12 or 24V DC
- Output Channels: 1

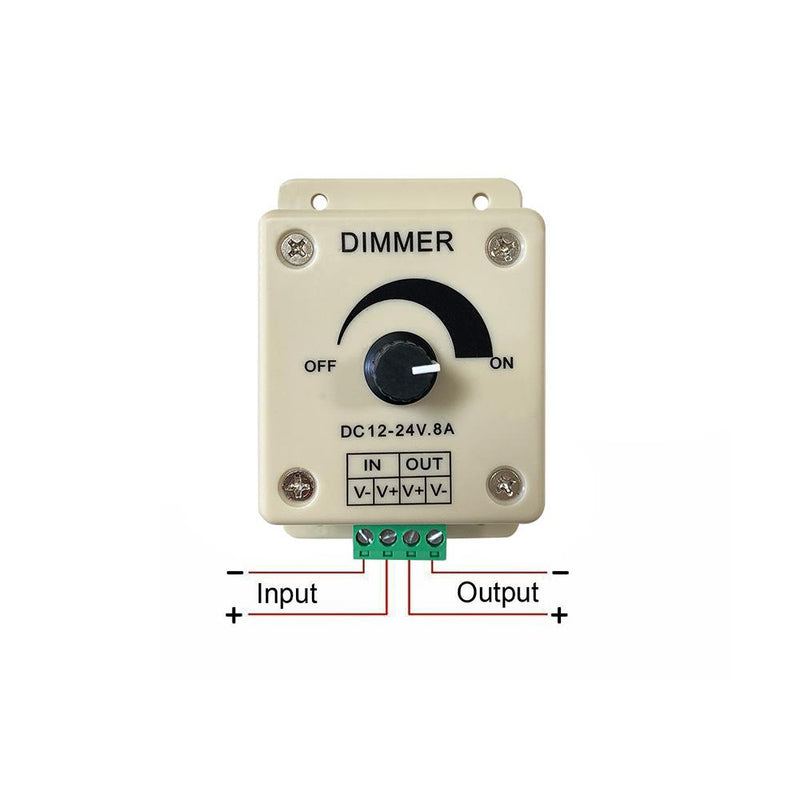

- Input Connection: 2 Wire (Positive + / Negative -)
- Output Connection: 2 Wire (Positive + / Negative -)
- Max Load: 8 amp, 72 Watts (12V DC), 144 Watts (24V DC),
- Working Temperature: -20 to 60 °C
- Environment: Dry Location
- IP Rating: IP20
- Controller Dimensions: 3.5 in. L x 2.3 in. W x 1.37 in. H
- Controller Dimensions (metric): 89 mm L x 59 mm W x 35 mm H
-
Warranty: 1 Year Limited
