LED Grid Light Panels


LED Grid Light Panels can be used where any continuous light source is needed. With a profile of less than 0.125 in. thick, these ultra-low-profile LED Grids to allow installers to utilize them in areas less than 2 inches deep and go where traditional fluorescent light sources can not.

The LED Grid Light Panels will enhance the aesthetics of any display. For example, large scale fabric displays, lightboxes, menu boards, under the counter and countertop lighting, or wherever a cool to the touch, the non-UV light source is essential. Mounting is effortless with screws, 3M double-sided tape, or silicone-based adhesive.

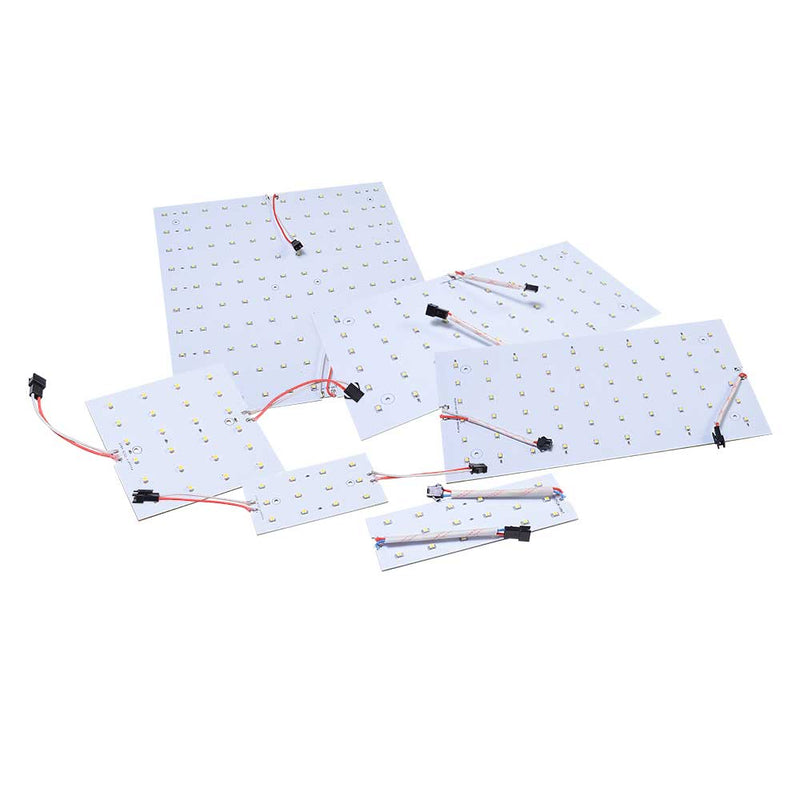

Powers easily by daisy-chaining with integral push-in connectors. The Grid Panel Lights are rigid and not cuttable. Available in 5000K LED CCT and various size options.

Need help with your LED lighting applications? Our lighting experts are here to help! Contact us today for assistance with lighting plan or installation instructions.

Required: Requires a non-dimming or dimming 24 volt DC driver36 in. length Power Feed, and optional 18 in. length Jumper. Sold separately.

Key Features

  • Commercial grade LED Grid Panel lights creates a uniform and linear illumination
  • Easy installation in any minimal size application
  • Versatile mounting options: 3M-construction adhesive or screw down
  • Can be installed in either exposed or fully enclosed spaces
  • Fully dimmable with 24V DC dimmable driver
  • Energy-efficient and low heat operation
  • Non-UV light source, no hot spots or dark spots


  • Lighting for Tradeshows, Exhibition, Retail Displays
  • Retail Stores, Restaurants, Casinos, Lounges, and Residential Homes
  • Backlighting Graphics or Signage
  • Custom DIY projects


View Spec Sheets

Brightness 100 Lumens
4 x 4 in. - 250 Lumens
6 x 2 in. - 200 Lumens
12 x 6 in. - 550 Lumens
12 x 12 in. - 1100 Lumens
Power (Watts) 4 x 2 in. - 1 watt
4 x 4 in. - 1.8 watt
6 x 2 in. - 1.4 watt
12 x 6 in. - 3.8 watt
12 x 12 in. - 7.5 watt
Input Voltage 24V DC
LED CCT 5000K Cool White
CRI 90+
LED Chip Size
SMD 2835
Amount of LED Chips
4 x 2 in. - 12 LEDs
4 x 4 in. - 24 LEDs
6 x 2 in. - 18 LEDs
12 x 6 in. - 60 LEDs
12 x 12 in. - 120 LEDs
Yes, with compatible dimmer
IP Rating IP20
Environment Indoor Use - Dry Location
LED Beam Angle 105°

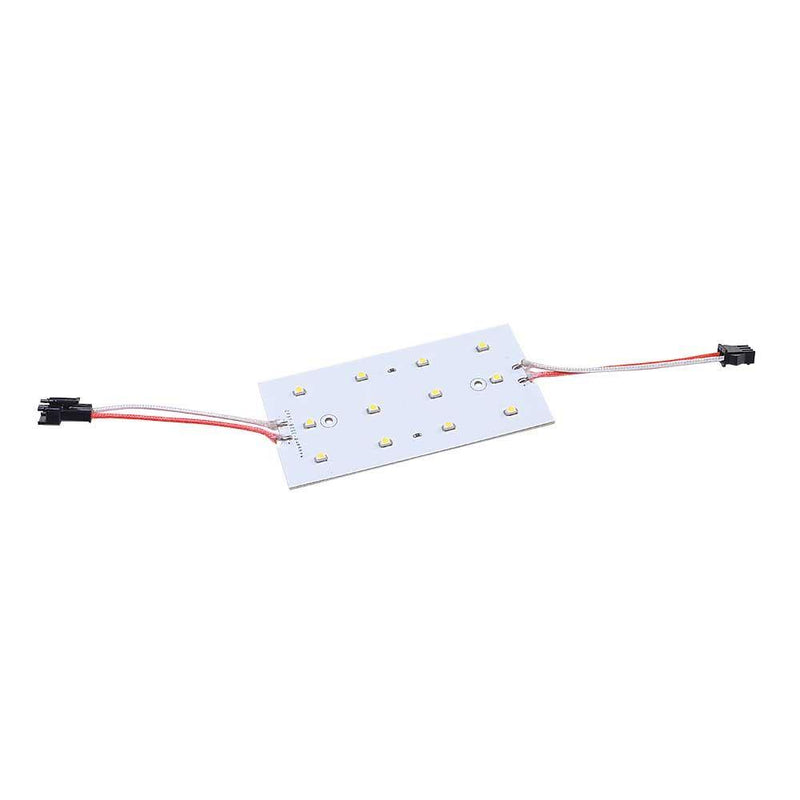

Panel Sizes (L x W x H) 4 x 2 x 0.125 in.

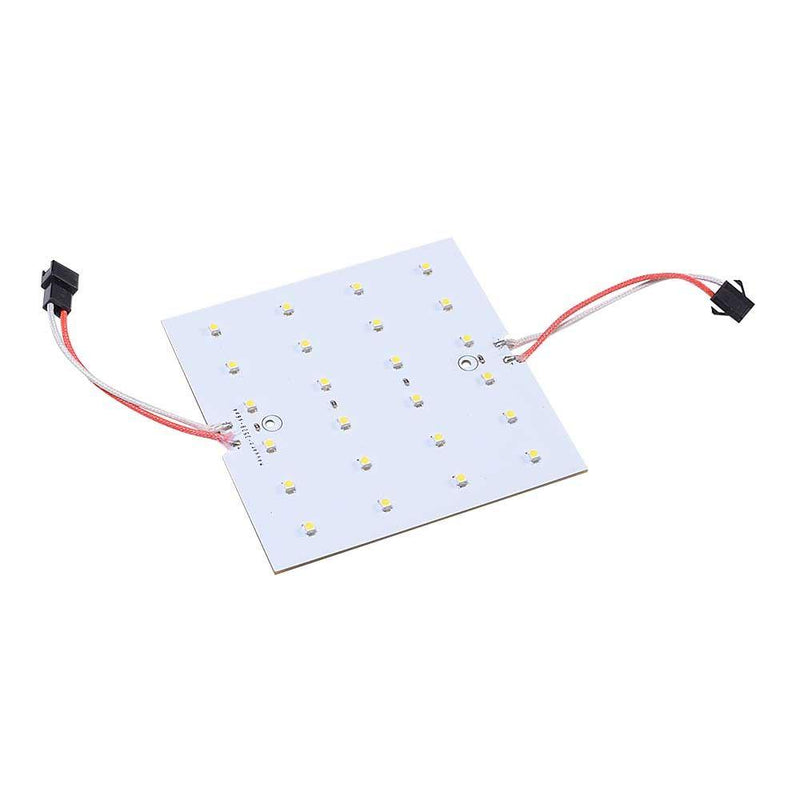

4 x 4 x 0.125 in.

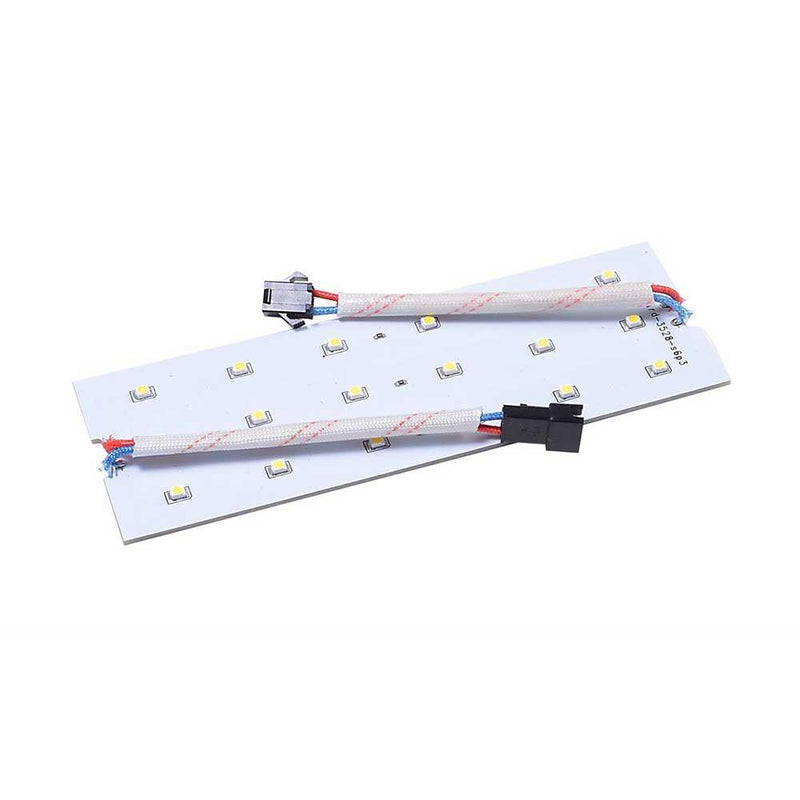

6 x 2 x 0.125 in.

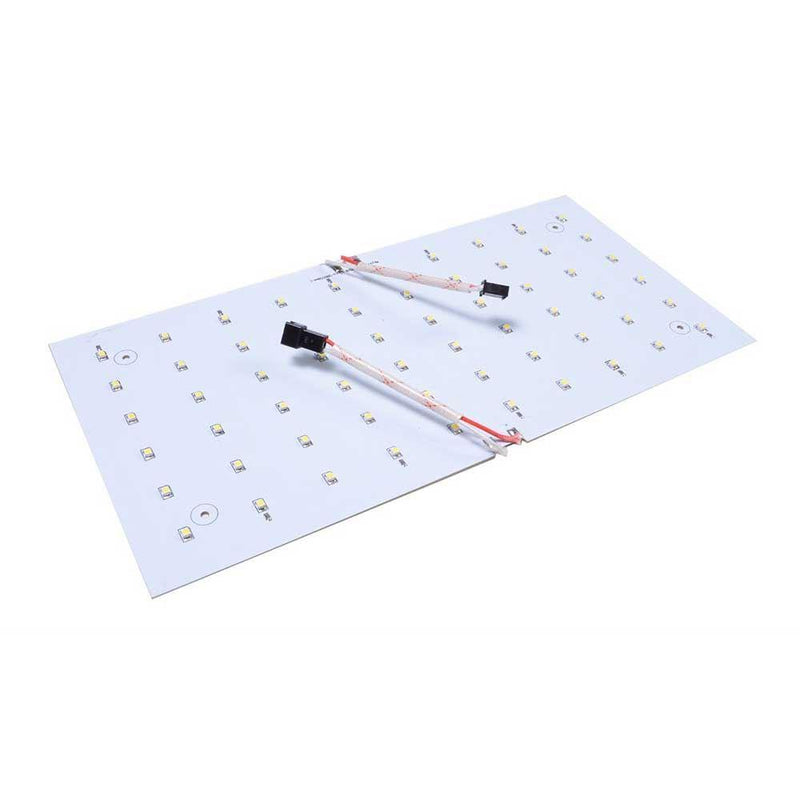

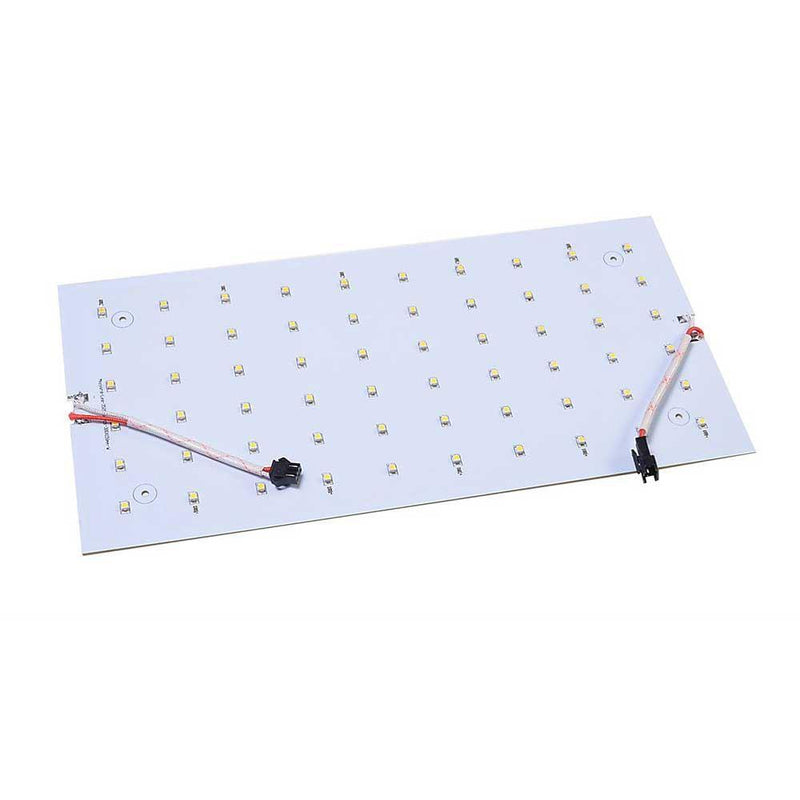

12 x 6 x 0.125 in.

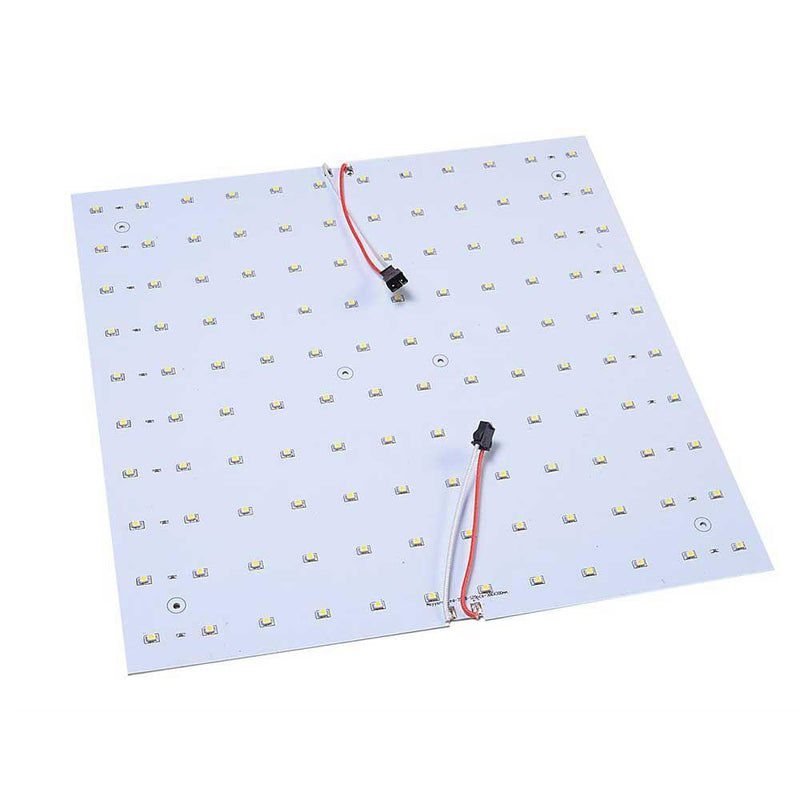

12 x 12 x 0.125 in.
Required Power Supply
24V DC LED Drivers
Required Accessories
36 in. Power Feed EL-GP-36-PF
18 in. Jumper EL-GP-18-JMP
Manufacturer Elumalight
Rating ETL Listed
Avg. Lifetime ± 30,000 - 50,000 hours
Warranty 3 years limited
