LED RGBCW-WW Flex Grid Light Sheet

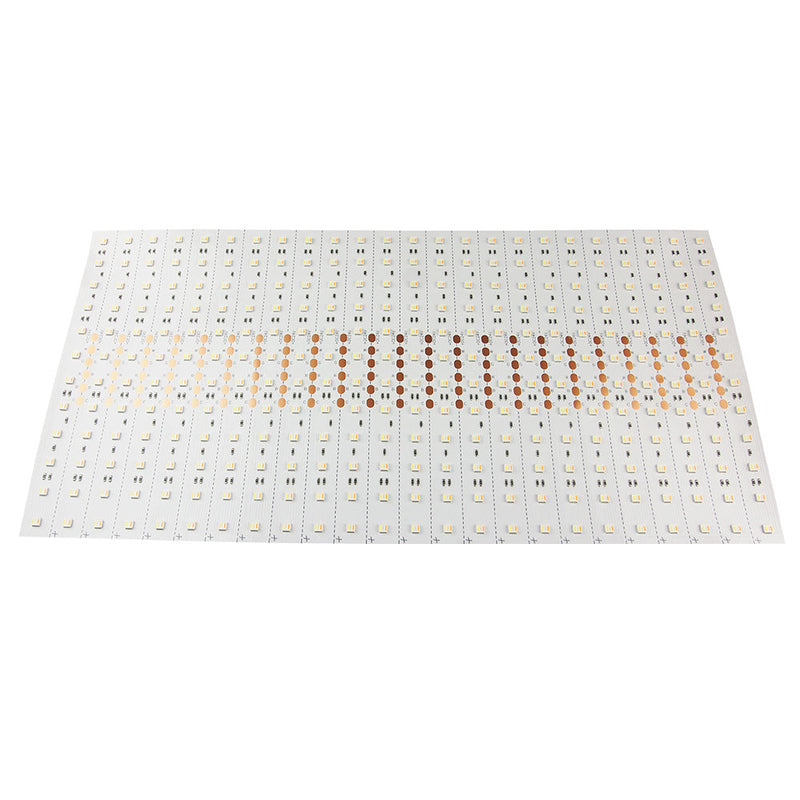

The RGBCW-WW Flex Grid Light is a fully customizable and color-changing flexible LED sheet. It is perfect for backlighting displays, light boxes, letters, logos, billboards, translucent materials, and more. The high density of RGBCW-WW SMD5050 LEDs, 288 LEDs per sheet, provides vibrant, bright, and smooth illumination free of hotspots. Easily link light sheets together by using onboard connectors or soldering.
Please refer to our specified cutting recommendations. When cutting the LED sheets, it is important to cut only along the pre-marked cut lines on the sheet to maintain electrical contact.
Need help with your LED lighting applications? Our lighting experts are here to help! Contact us today for assistance with the lighting plans or installation instructions.

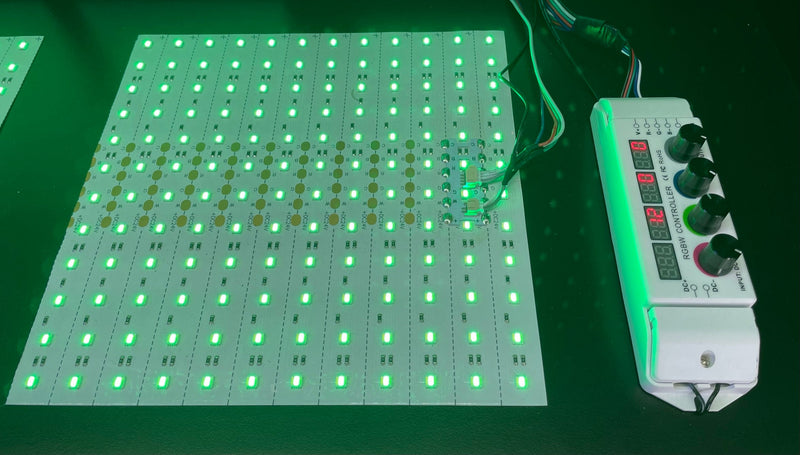

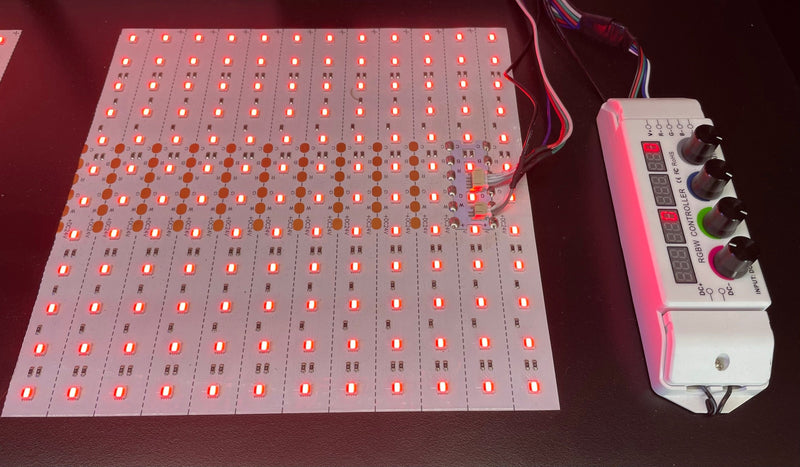

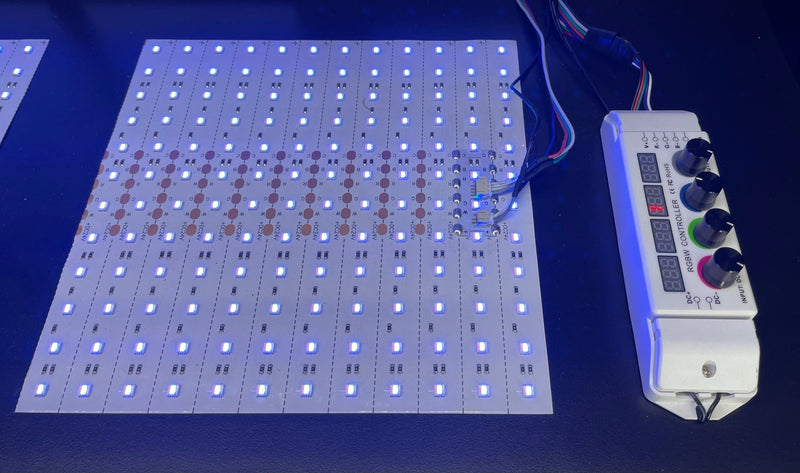

Requires LED RGBW Controller and a 24-volt DC driver.
Key Features
- Cuttable segments every 9.44 x 0.78 in
- 12 LEDs per segment
- 6 solder points per segment
- Dimmable with dimming controllers

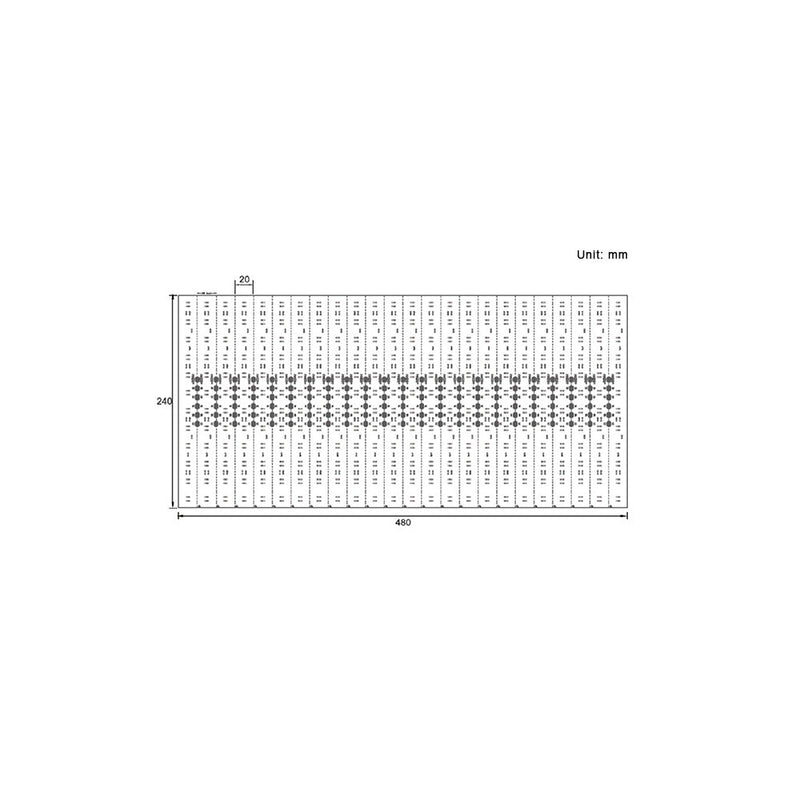

- Dimensions: 18.89 in x 9.45 in
- Thickness: 0.08 in (2mm)
- Wire Length: 22 AWG power wires
- IP20 rated for dry environments
- 30000-50000 hours L70 lifespan
- 24V DC input
- CE-certified, RoHS
Applications
- Architectural Features and Facades
- Backlighting
- Displays
- Translucent Materials
- Showcases
- Custom DIY Projects
Specifications
| Brightness |
Red: (540-559 Lm) Green: (1300-1400 Lm) Blue: (400-410 Lm) Warm White: (1800-1900 Lm) Cool White: (2000-2100 Lm) |
|---|---|
| LED Colors |

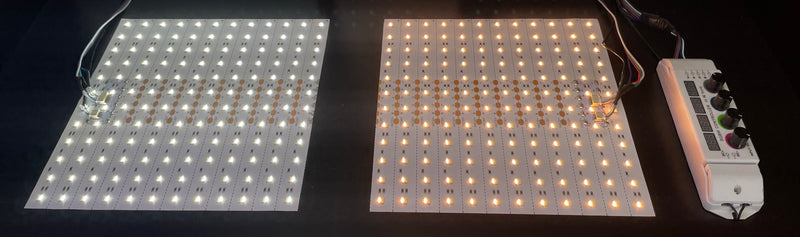

2400K Warm White Red/Green/Blue 6000K Cool White |
| Power (Watts) | 115W per sheet |
| Input Voltage | 24V DC |
| LED Chip Size |
SMD 5050 |
| Amount of LED Chips |
288 per sheet |
| Dimmable |
Yes, with a dimmer |
| IP Rating | IP20 |
| Environment | Indoor Use - Dry Location |
| LED Beam Angle | 120° |
| Length | 18.89 in / 480 mm long |
| Width |
9.45 in / 240 mm wide |
| Thickness |
2 mm |
| Required Power Supply |
24V DC LED Drivers |
| Manufacturer | Elumalight |
| Avg. Lifetime | ± 30,000 - 50,000 hours |
