LED Ladder Lights 12V DC
LED Ladder Lights are designed to provide the best quality lumen outputs for applications such as backlighting illuminated signs, SEG fabric displays, and any projects that require the highest value and cost-efficiency. The LED Ladder Lights are versatile and can be easily fitted into sign boxes and indoor or outdoor lightboxes.

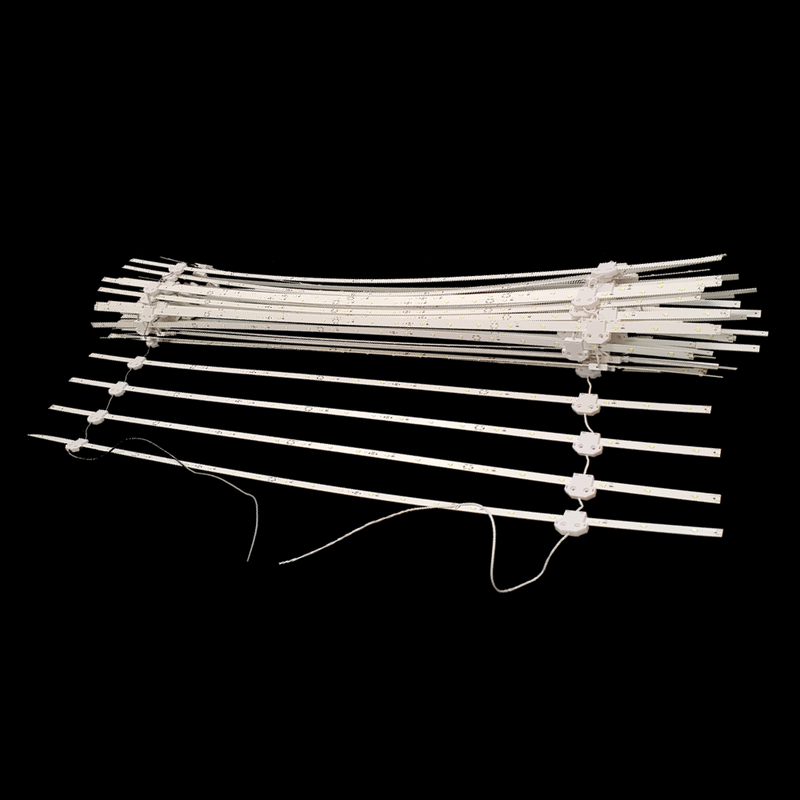

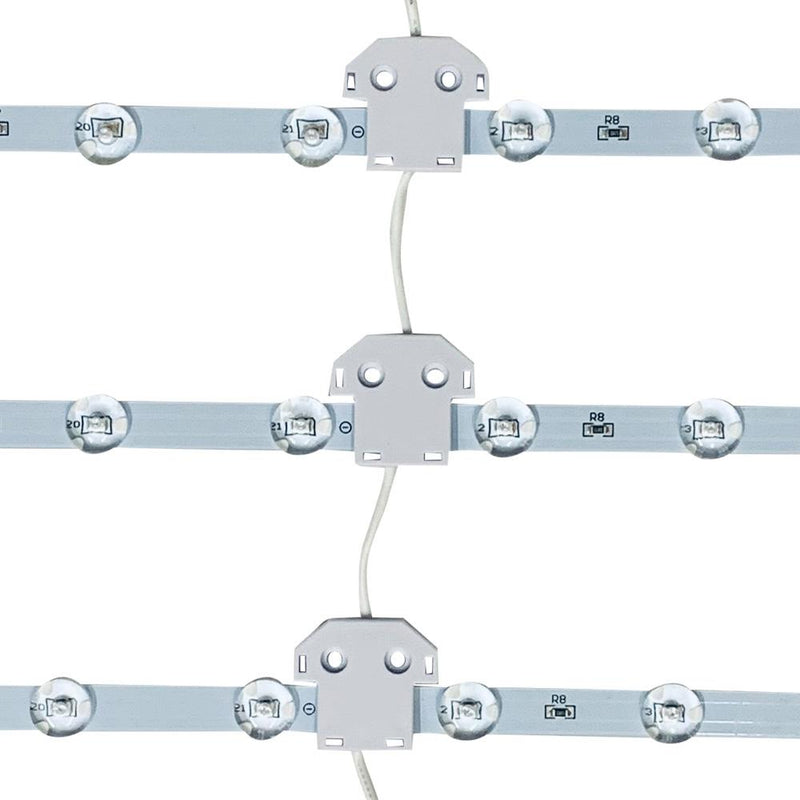

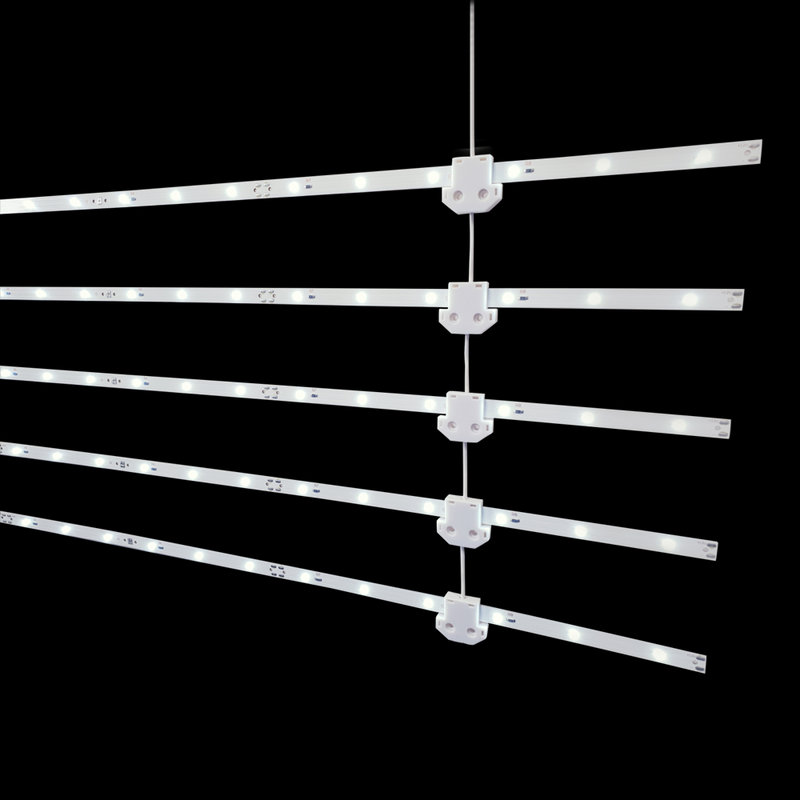

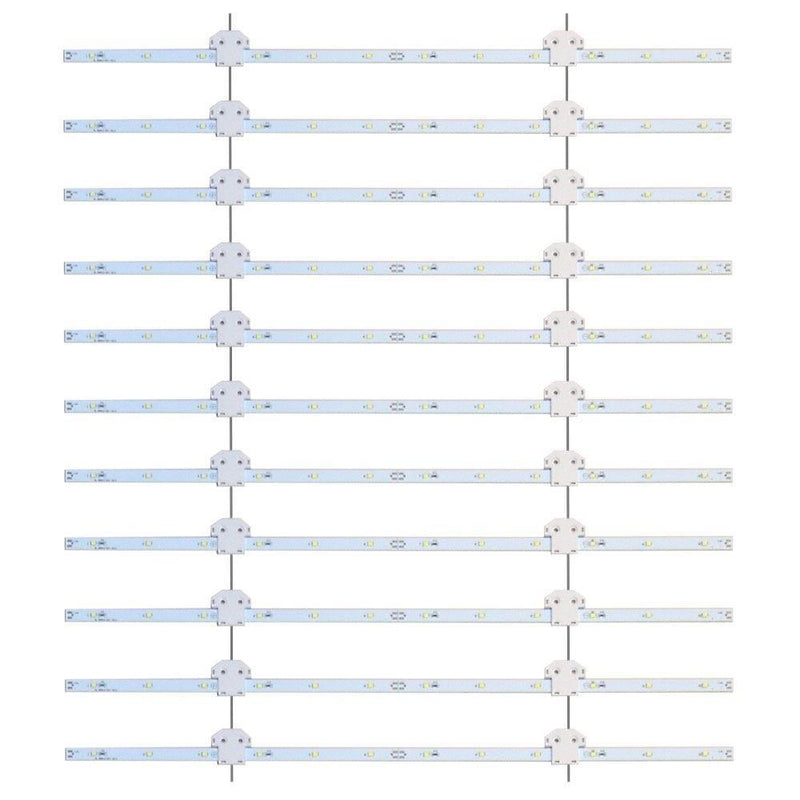

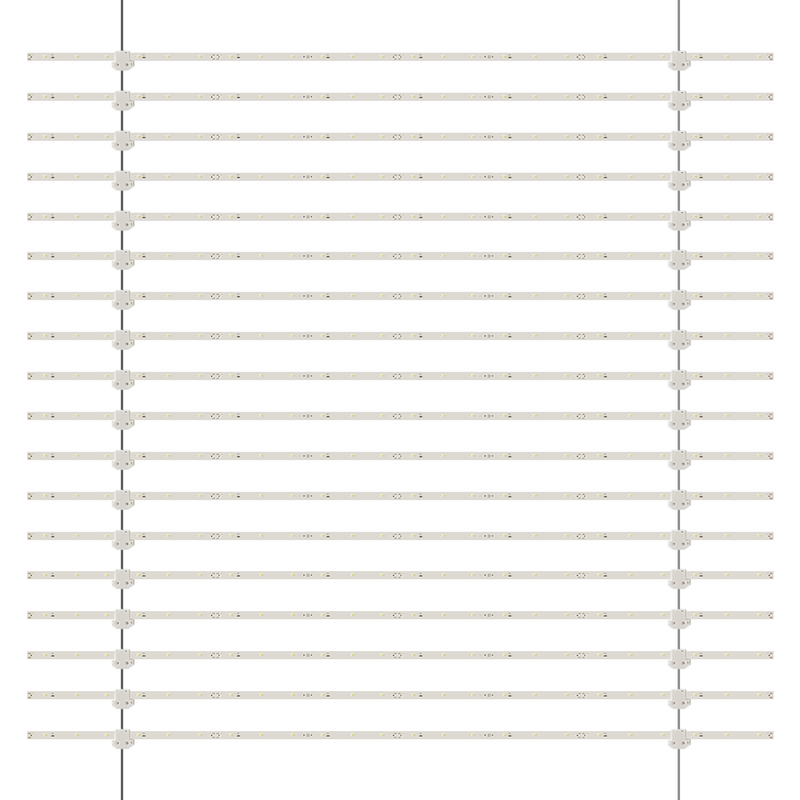

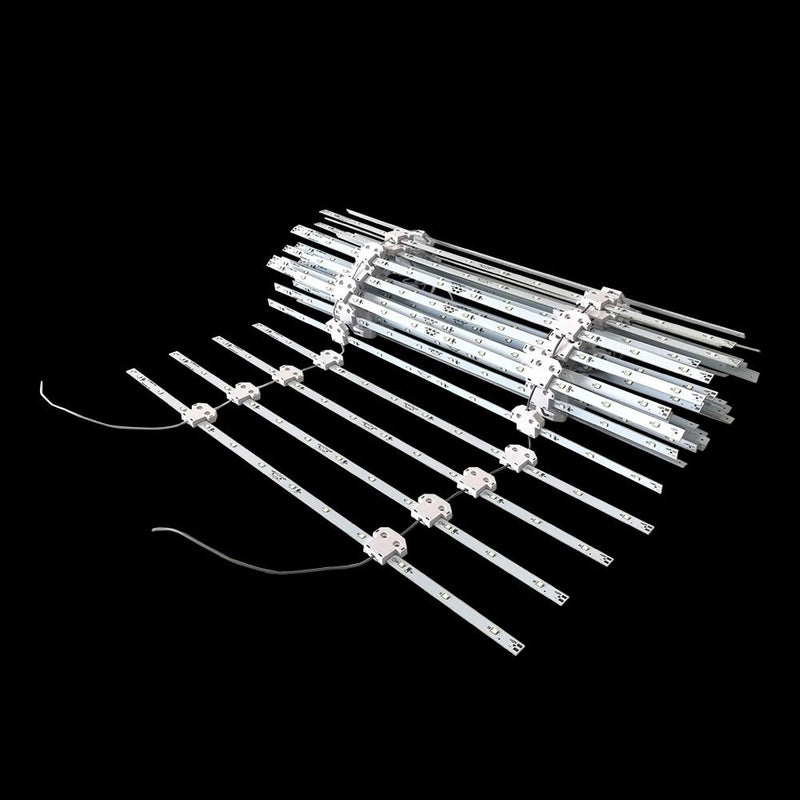

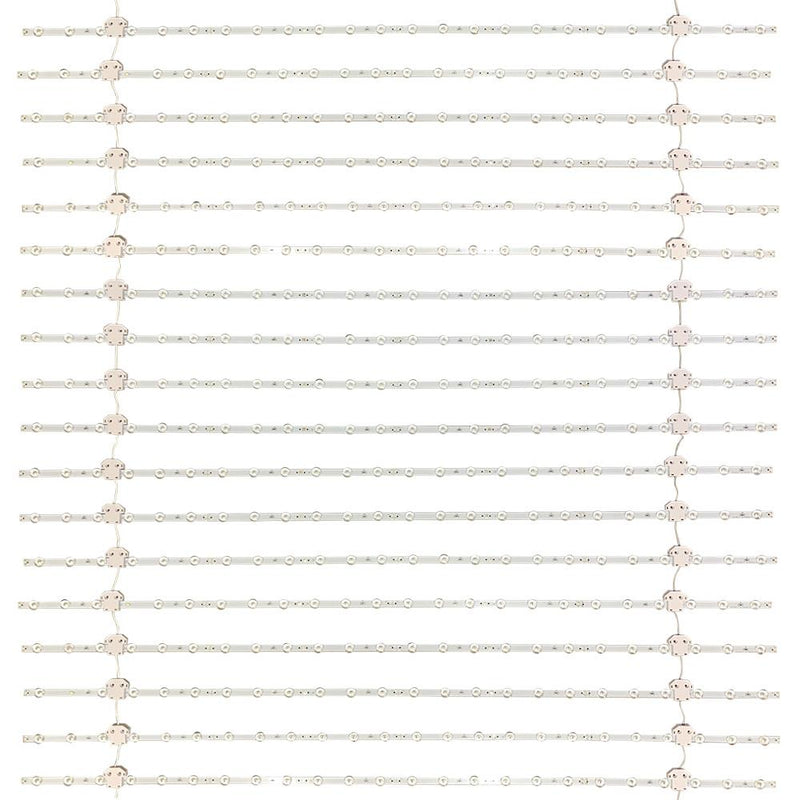

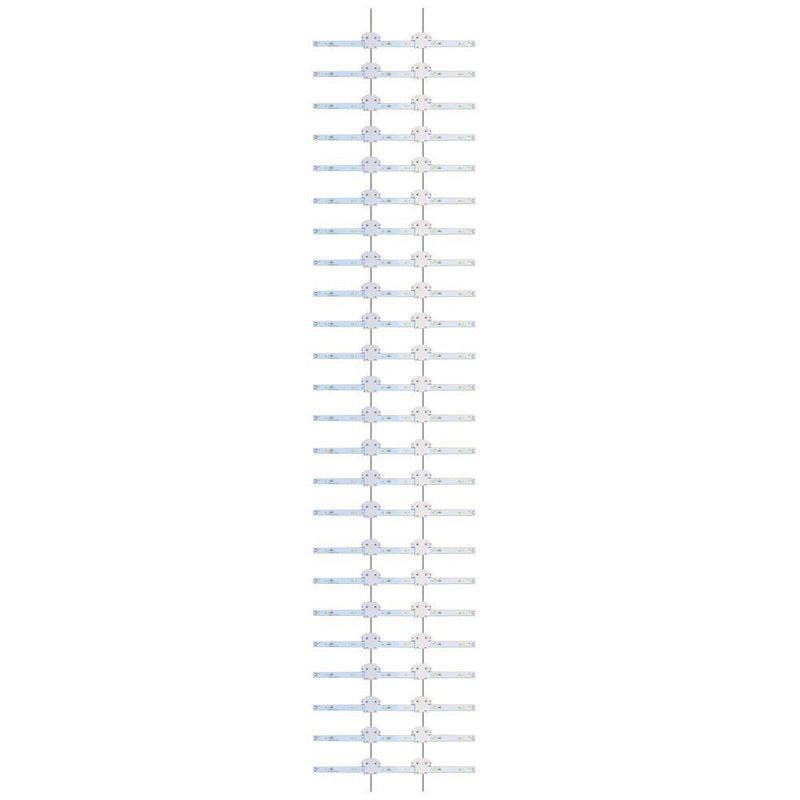

Each LED Ladder Light is made of many rows of rigid LED PCB Lightbars pre-wired together for easy installation. The ultra-flexible wiring between each lightbar allows the LED Lattice to be wrapped around corners or columns and spacing between bars can be adjusted to custom fit to your application.
The wires between each LED lightbar can be cut horizontally at any point to divide it into single lightbars or smaller segments to fit into smaller spaces.
The 12V DC LED Ladder lights are available to order in 92 in x 10 in, 92 in x 20 in, or 92 in x 39 in size options in 6000K Cool White LED CCT.
Need help with your LED lighting applications? Our lighting experts are here to help! Contact us today for assistance with lighting plan or installation instructions.
* Required: Requires a non-dimming or dimming 12 volt DC driver.
Key Features
- No hotspots & uniform illumination
- Reliable and predictable lighting results
- Maintenance-free & Cost-effective light source
- LED Chipsets are high intensity, ultra-bright, and energy-efficient
- No RF interference
- Easy Installation
- Up to 50,000 hours Lifespan
- UL Listed
Applications
- Retail Display
- SEG Graphic Display Light Boxes
- Back-lit Graphics
- Wall or Ceiling Lighting
- Custom DIY project
Specifications
View EL-LAD-92X10-140K-12 Spec Sheet
View EL-LAD-92X20-140K-12 Spec Sheet
View EL-LAD-92X39-140K-12 Spec Sheet
| Brightness (per bar) | 92X10 in. - 120 Lumens 92X20 in. - 360 Lumens 92X39 in. - 720 Lumens |
|---|---|
| Brightness (per roll) | 92X10 in. - 4800 Lumens 92X20 in. - 14400 Lumens 92X39 in. - 28800 Lumens |
| Power (per bar) | 92X10 in. - 1.2 Watt 92X20 in. - 3 Watt 92X39 in. - 6 Watt |
| Power (per roll) | 92X10 in. - 48 Watt 92X20 in. - 120 Watt 92X39 in. - 240 Watt |
| Roll Sizes & Order SKUs |
92X10 in. EL-LAD-92X10 92X20 in. EL-LAD-92X20 92X39 in. EL-LAD-92X39 |
| Number of LED Chips (per bar) | 92X10 in. - 6 92X20 in. - 12 92X39 in. - 24 |
| Number of LED Chips (per roll) | 92X10 in. - 240 92X20 in. - 480 92X39 in. - 960 |
| Number of LED Bars (per roll) |
92X10 in. - 40 Bars 92X20 in. - 40 Bars 92X39 in. - 40 Bars |
| Input Voltage | 12V DC |
| LED CCT | 6000K Cool White |
| CRI | 90+ |
| IP Rating | IP20 |
| Environment | Indoor Use - Dry Location |
| LED Beam Angle | 120° |
| Bar Lengths | 10 in., 20 in., or 39 in. long |
| Bar Width |
0.4 in / 10.16 mm wide |
| Bar-to-Bar Spacing |
2 in / 50.8 mm |
| Working Temperature | -20°C - 50°C |

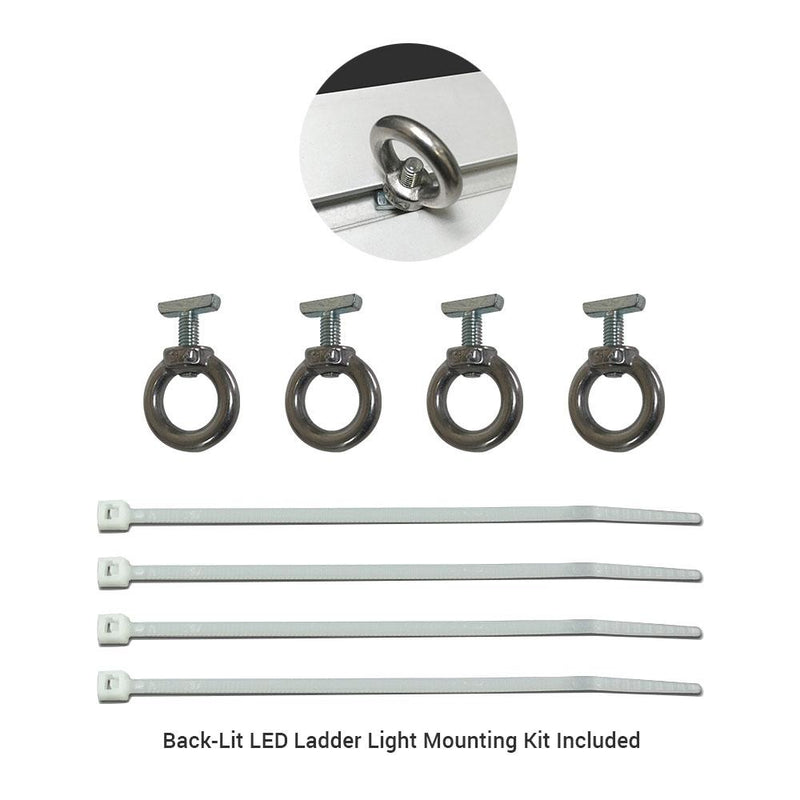

| Mounting | Hanging with supplied Ring Nuts or use Surface mounting tabs for mechanically fastening with screws |
| Wiring |
~11 inches long 16 AWG stranded lead wires at top and bottom of each roll |
| Manufacturer | Elumalight |
| Rating | UL Listed |
| Avg. Lifetime | ± 30,000 - 50,000 hours |
| Warranty | 3 years limited |
| Remarks | *Not to exceed 80% of LED Driver Capacity. |
