LED RGB Ladder Lights 12V DC

SKU EL-LAD-80X10-RGB-12
Original price $141.75 - Original price $236.25
Original price
$141.75
$141.75 - $236.25
Current price $141.75

12V DC LED Color Changing RGB Ladder Lights are designed to provide the best quality lumen outputs with vibrant colors for applications such as backlighting illuminated signs, SEG fabric displays, and any projects that require the highest value and cost-efficiency. The RGB LED Ladders are versatile and can be easily fitted into sign boxes and indoor or outdoor lightboxes.

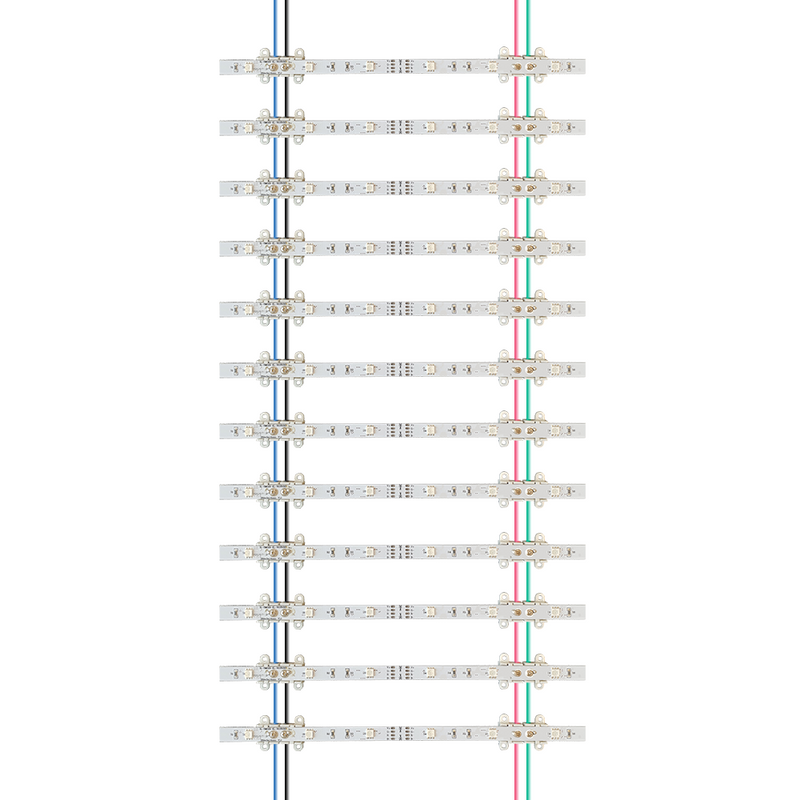

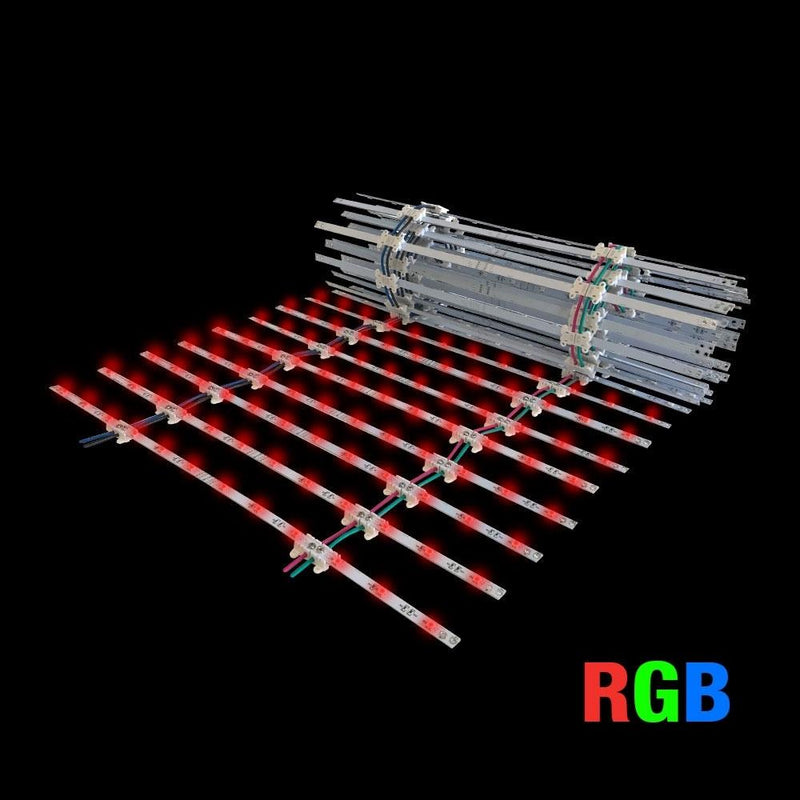

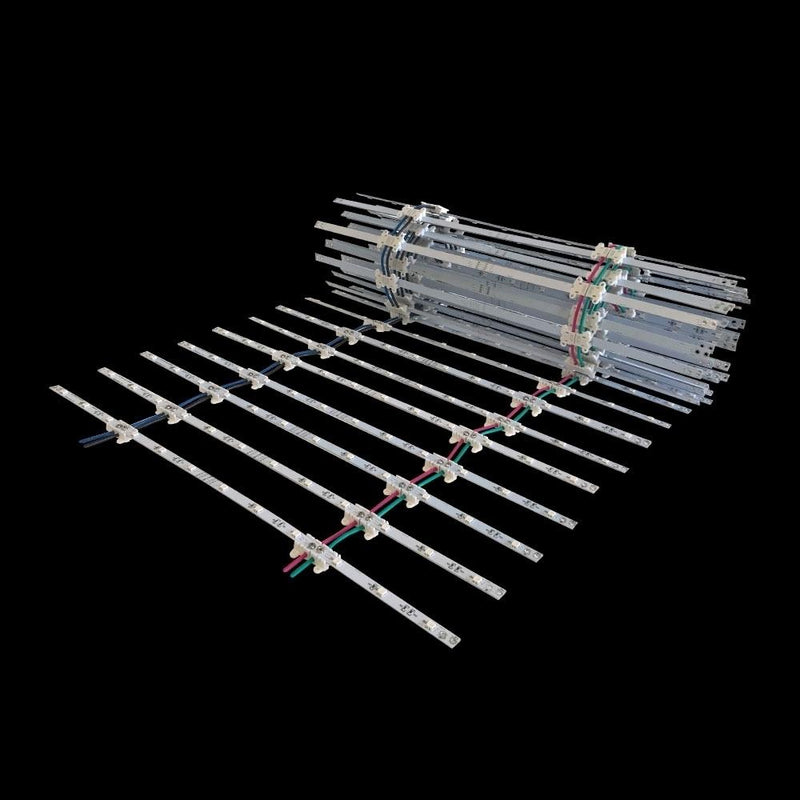

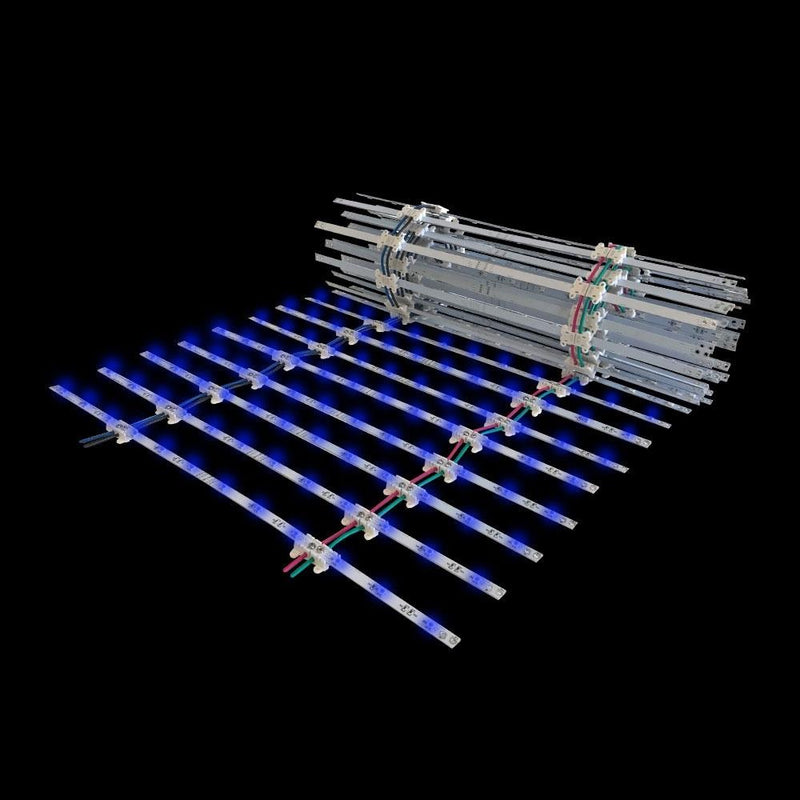

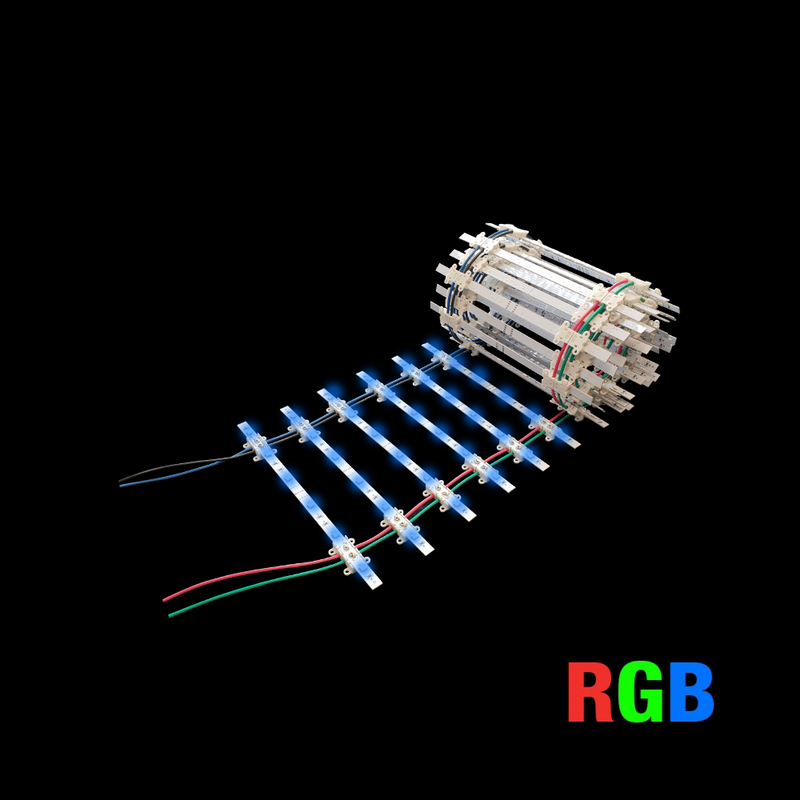

Each RGB LED Ladder Light is made of many rows of rigid LED RGB PCB Lightbars pre-wired together for easy installation. The ultra-flexible wiring between each lightbar allows the LED Lattice to be wrapped around corners or columns and spacing between bars can be adjusted to custom fit to your application.

The wires between each RGB LED lightbar can be cut horizontally at any point to divide it into single lightbars or smaller segments to fit into smaller spaces.

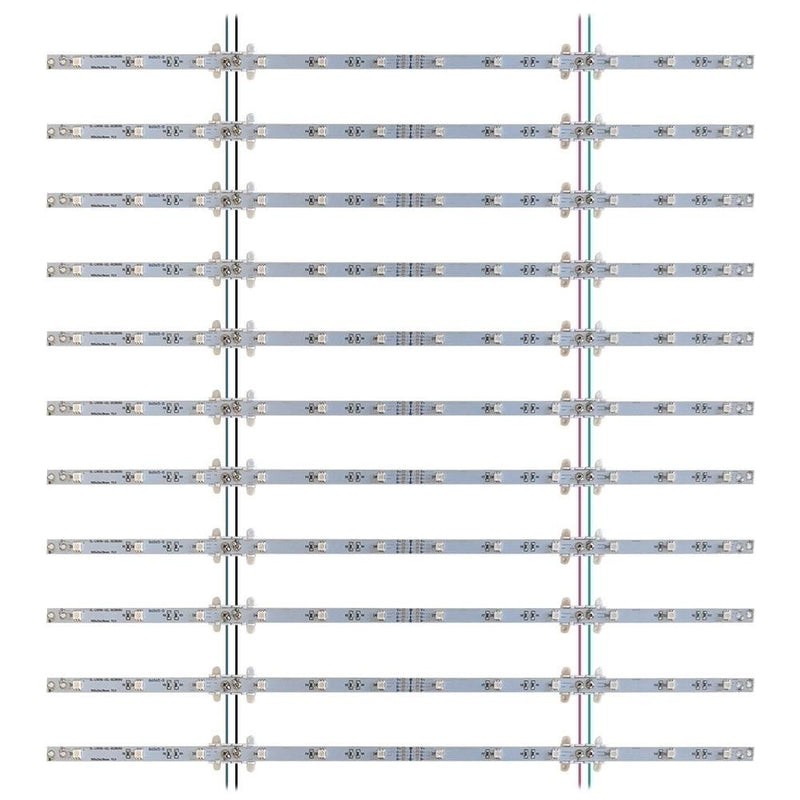

The 12V DC LED Ladder lights are available to order in 80 in x 10 in or 80 in x 20 in size options.

Need help with your LED lighting applications? Our lighting experts are here to help! Contact us today for assistance with lighting plan or installation instructions.

* Required: Requires an RGB Controller and 12 volt DC driver. Sold separately.

Key Features

  • No hotspots & uniform illumination
  • Reliable and predictable RGB lighting results
  • Maintenance-free & Cost-effective light source
  • LED Chipsets are high intensity, ultra-bright, and energy-efficient
  • No RF interference
  • Easy Installation
  • Up to 50,000 hours Lifespan
  • UL Listed

Applications

  • Retail Display
  • SEG Graphic Display Light Boxes
  • Back-lit Graphics
  • Wall or Ceiling Lighting
  • Custom DIY projects

Specifications

View EL-LAD-80X10-RGB-12 Spec Sheet

View EL-LAD-80X20-RGB-12 Spec Sheet

Brightness (per bar) 80X10 in. - ~45 Lumens
80X20 in. - ~90 Lumens
Brightness (per roll) 80X10 in. - ~1800 Lumens
80X20 in. - ~3600 Lumens
Power (per bar) 80X10 in. - 1.2 Watt
80X20 in. - 2.4 Watt
Power (per roll) 80X10 in. - 48 Watt
80X20 in. - 96 Watt
Roll Sizes & Order SKUs 80X10 in. EL-LAD-80X10-RGB-12
80X20 in. EL-LAD-80X20-RGB-12
Number of LED Chips (per bar) 80X10 in. - 6
80X20 in. - 12
Number of LED Bars (per roll) 80X10 in. - 40 Bars
80X20 in. - 40 Bars
Input Voltage 12V DC ± 0.5V
LED Color RGB (Red, Green, Blue)
IP Rating IP20
Environment Indoor Use - Dry Location
LED Beam Angle 120°
Bar Lengths 10 in. or  20 in. long
Bar Width
0.4 in / 10.16 mm wide
Bar-to-Bar Spacing
1.5 in / 38.1 mm
Working Temperature -20°C - 50°C

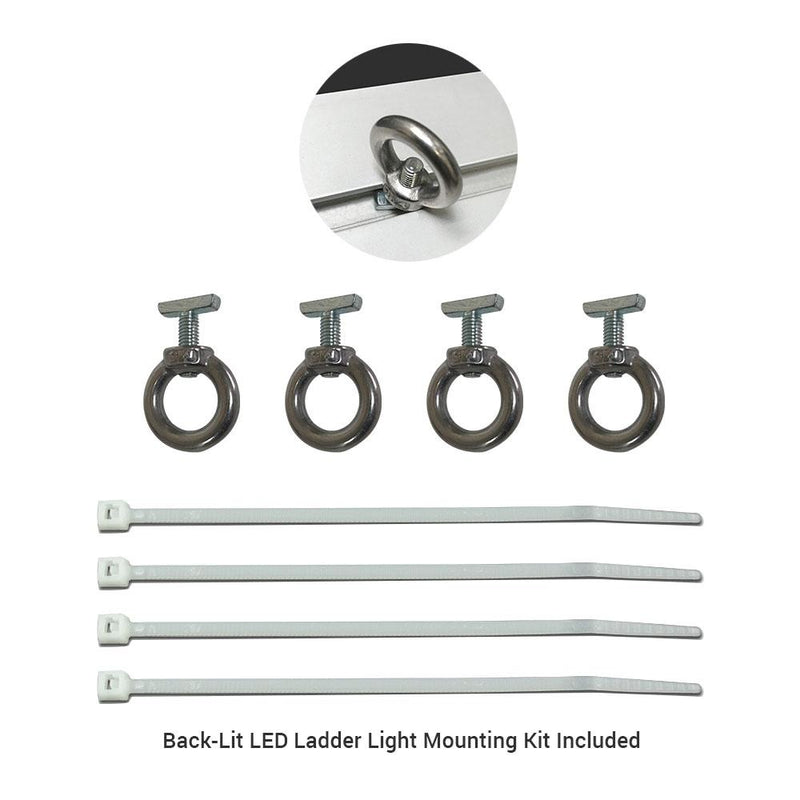

Mounting Hanging with supplied Ring Nuts or use Surface mounting tabs for mechanically fastening with screws
Wiring
~11 inches long 16 AWG stranded lead RGB wires at top and bottom of each roll
Manufacturer Elumalight
Rating UL Listed
Avg. Lifetime ± 30,000 - 50,000 hours
Warranty 3 year limited
Remarks *Not to exceed 80% of LED Driver Capacity.
