LED CCT Selectable Alpha Dimmable Light Bars 120V AC

LED CCT Selectable Alpha Dimmable Light Bars are ideal for displays, exhibitions, under-cabinet, cove lighting applications. It combines energy efficiency and modern style with its ultra-premium diffuser, eliminating hot spots for a uniform, smooth beam of light.

They are energy efficient with uniform illumination output. You can utilize our LED Alpha Dimmable Light Bar to create a soft, warm, and ambient glow with its fully dimmable feature. It is fully dimmable when used with compatible LED dimmers.

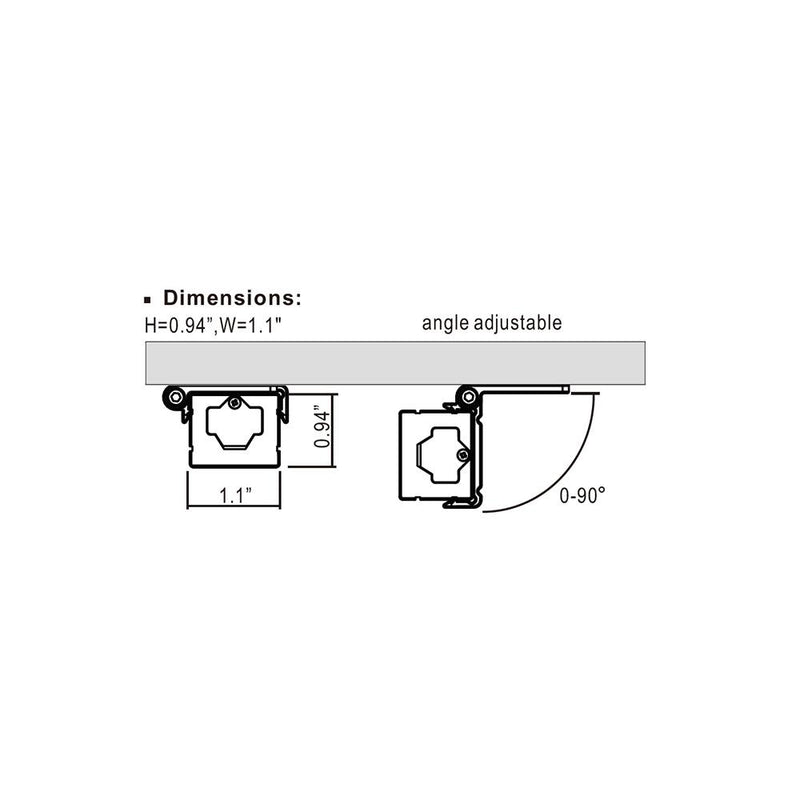

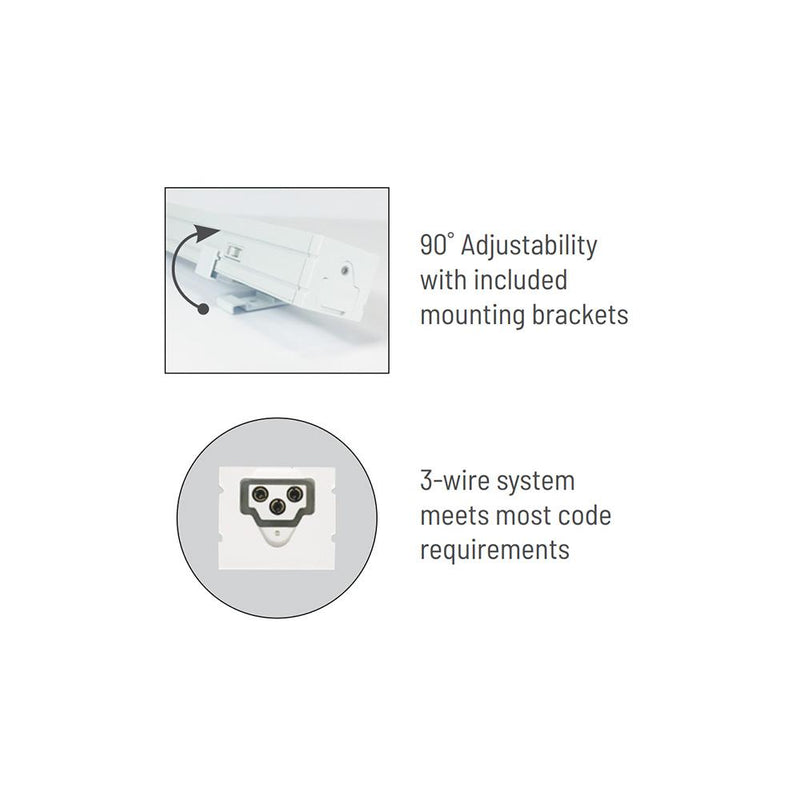

The max run of Alpha LED Light Bar is up to 400 watts of linked fixtures. Each LED Dimmable Linear Light Bar includes 2 adjustable angle brackets (0 to 90 degrees), and one end-to-end connector for seamless end-to-end transitions. It is UL listed to ensure the durability and safety of its lifespan. Order power feed cord and accessories separately for easy plug-n-play install.

Note: Two mounting clips are included with each LED CCT Alpha Dimmable Light Bars.

The EL-L series Power Cord or EL-L series Hardwire Power Feed is required to connect power to the LED CCT Alpha Light Bars. Sold Separately.

Optional: EL-L Male to Female Jumper, End to End Connectors, Hardwire Junction Box, Junction Box with Switch, and Occupancy Sensor Box with Switch are available. Sold Separately.

Key Features

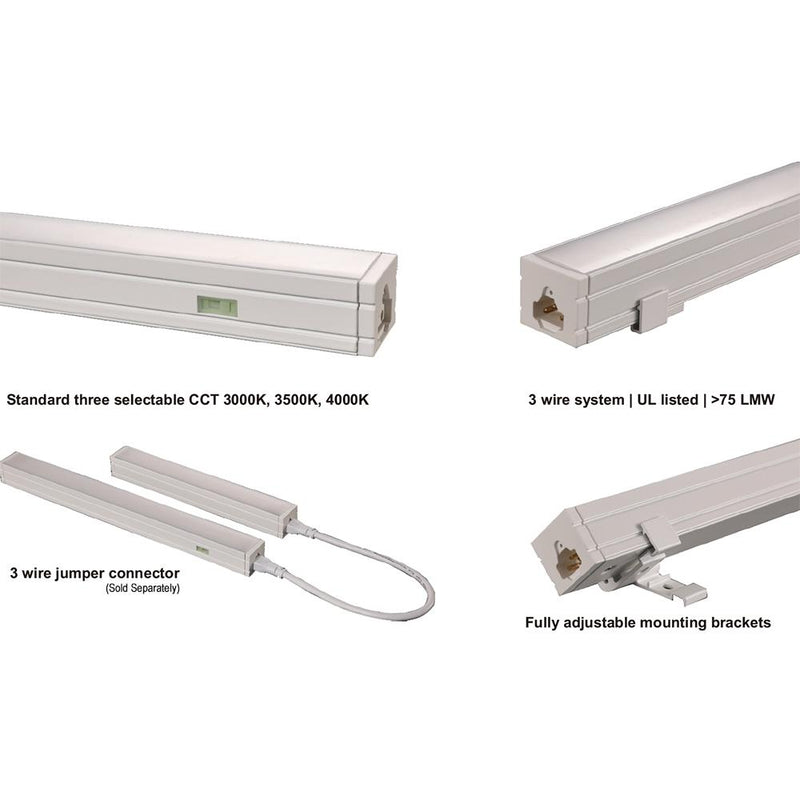

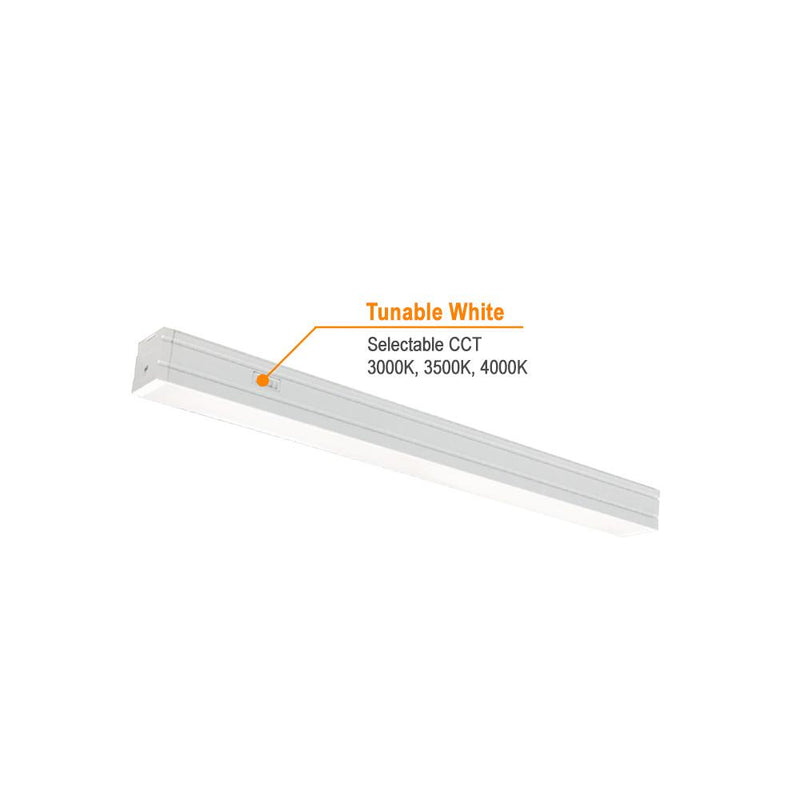

• Standard 3 Selectable LED CCT 3000K, 3500K, 4000K

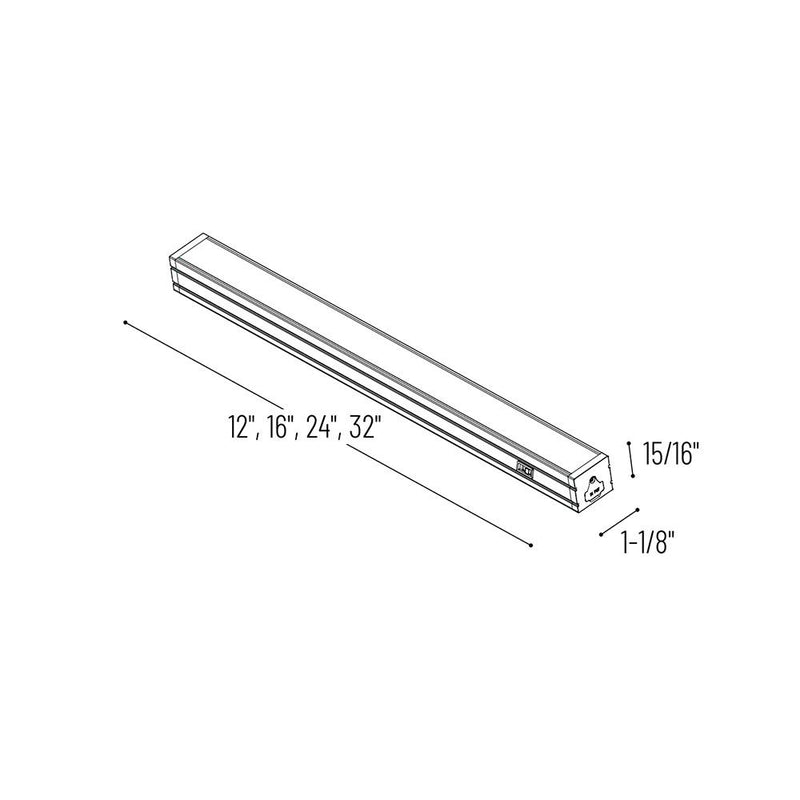

• 4 Difference Length Dimmable Linear LED fixtures
• 75 Lumens per Watt
• Fully Adjustable Mounting Brackets Included
• UL 1598, UL 153 listed, *JA10, JA8
• Dimmable (with Compatible Dimmer and Driver)
• Linkable up to 400 watt
• Comply with Energy Star certifications.

Applications

• Decorative Lighting for Tradeshows, Exhibition, Retail Displays
• Architectural lighting for corridors, canopies, archways, or windows
• Downlighting or Uplighting Applications
• Backlighting or Edge-Lighting
• Under-cabinet, Under-Counter, or cove lighting

Specifications

 View Spec Sheet
