LED LumaStrip Light Modules IP20

SKU EL-LUM-MOD-60K-5-24
Original price $27.00 - Original price $27.00
Original price
$27.00
$27.00 - $27.00
Current price $27.00

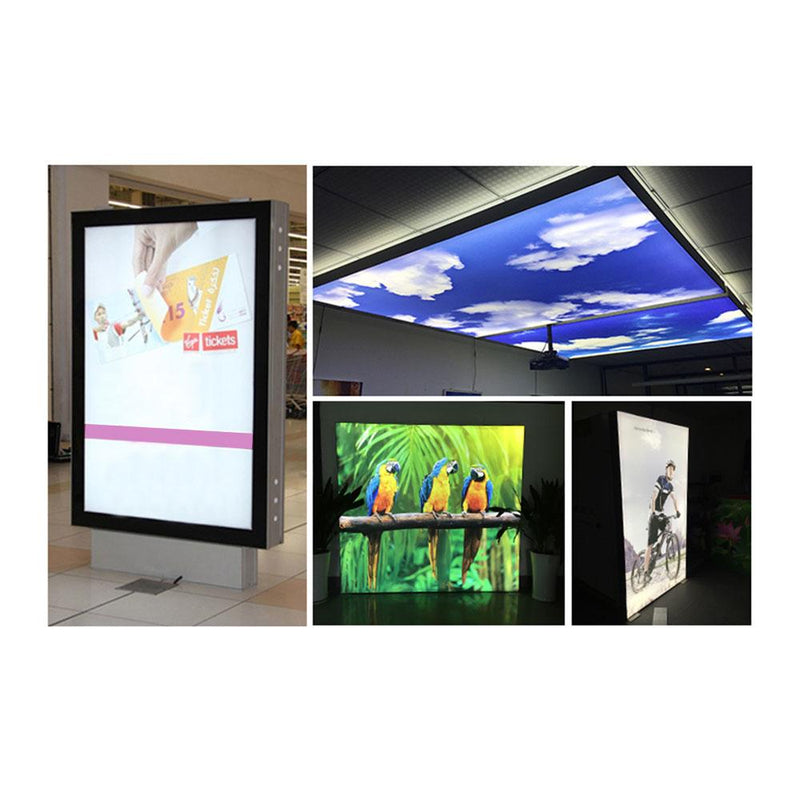

24V DC LED LumaStrip Light Modules IP20 are designed to provide the superior-quality lighting outputs. They are great for large retail displays and graphic lightboxes. We have designed the LED LumaStrip Light Modules that give you the best performance and versatility.

LED Lumastrip Light Modules are energy efficient, frameless, and low profile. It gives you the flexibility of spacing each module closer together and the ability to light up tight corners. By simply placing these fixtures on the interior of any extrusion, Lumastrip will effectively showcase your graphic or product evenly illuminating the entire display.

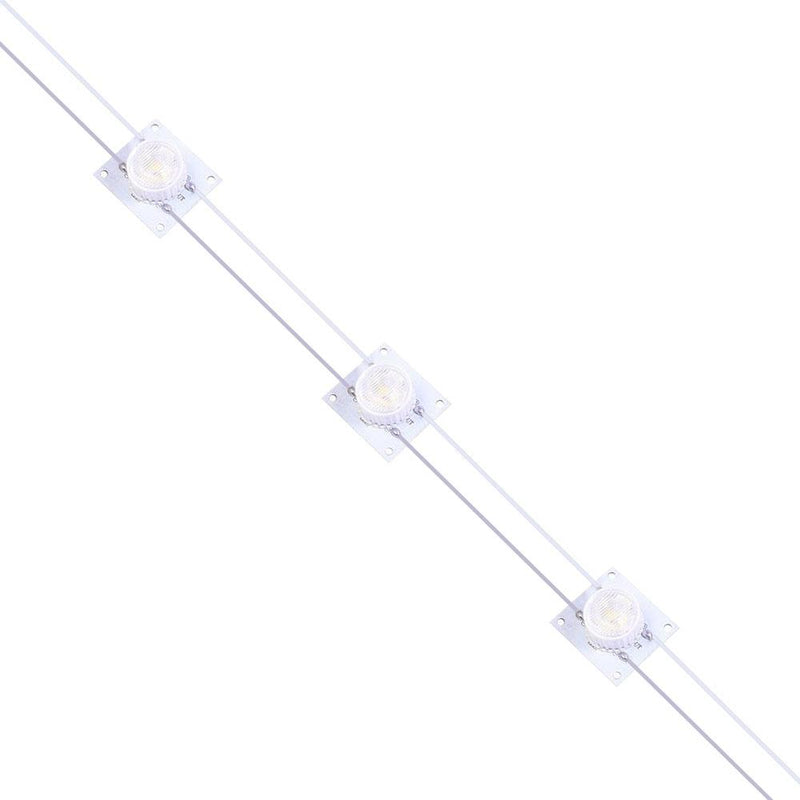

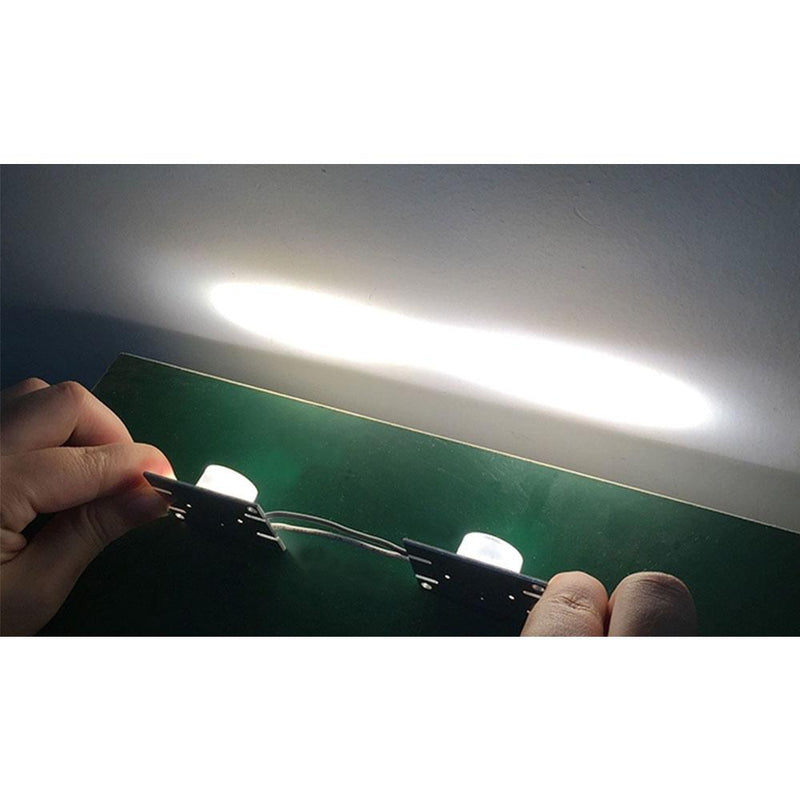

Each of the LED LumaStrip Light Modules utilizes a diffuser lens around the LED chipset to distribute lights evenly at a beam angle of 60°. This allows it to illuminate shallow lightboxes with virtually no hot spots. Available with 6 modules per strip (7 ft long) in 6000K Cool White LED CCT.

Need help with your LED lighting applications? Our lighting experts are here to help! Contact us today for assistance with lighting plan or installation instructions.

*Required: Requires 24V DC LED Power Supply and optional Female DC Barrel Plug. Sold Separately.

Key Features

  • No hotspots & uniform illumination
  • Maintenance-free & Cost-effective light source
  • LED Chipsets are high intensity, ultra-bright, and energy-efficient
  • No RF interference
  • Easy Installation
  • Up to 50,000 hours Lifespan
  • UL Listed

Applications

  • Retail Display
  • SEG Graphic Display Light Boxes
  • Back-lit Graphics
  • Custom DIY project

Specifications

View Spec Sheet

Brightness 160 Lumens/module
950 Lumens/strip
Power (Watts) 3 watt/module
18 watt/ 6 pcs module strip
Input Voltage 24V DC
LED CCT & Colors 6000K Cool White
CRI 90+
IP Rating IP20
Environment Indoor Use - Dry Location
LED Beam Angle 60°
Strip Length 5 ft long
Module Length
1.3 in / 33.02 mm long
Module Width 1.5 in / 38.1 mm wide
Module Height 0.50 in / 12.7 mm thick
Wire Length (between modules)
7.5 in / 190.5 mm long
Mounting Screw through pre-drilled holes on each module, screws not included
Included

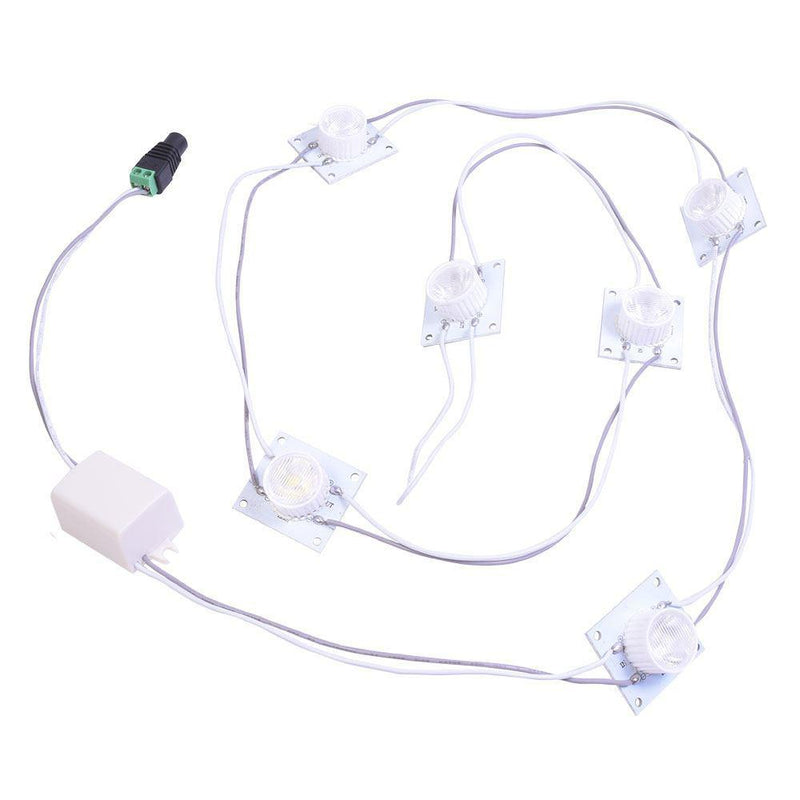

6 pcs LED Modules wired to DC Converter
Manufacturer Elumalight
Rating UL Listed
Avg. Lifetime ± 30,000 - 50,000 hours
Warranty 3 years limited
