LED RGB LumaStrip Module Light 19 in IP20

SKU EL-LUM-RGB-IP20
Original price $43.12 - Original price $43.12
Original price
$43.12
$43.12 - $43.12
Current price $43.12

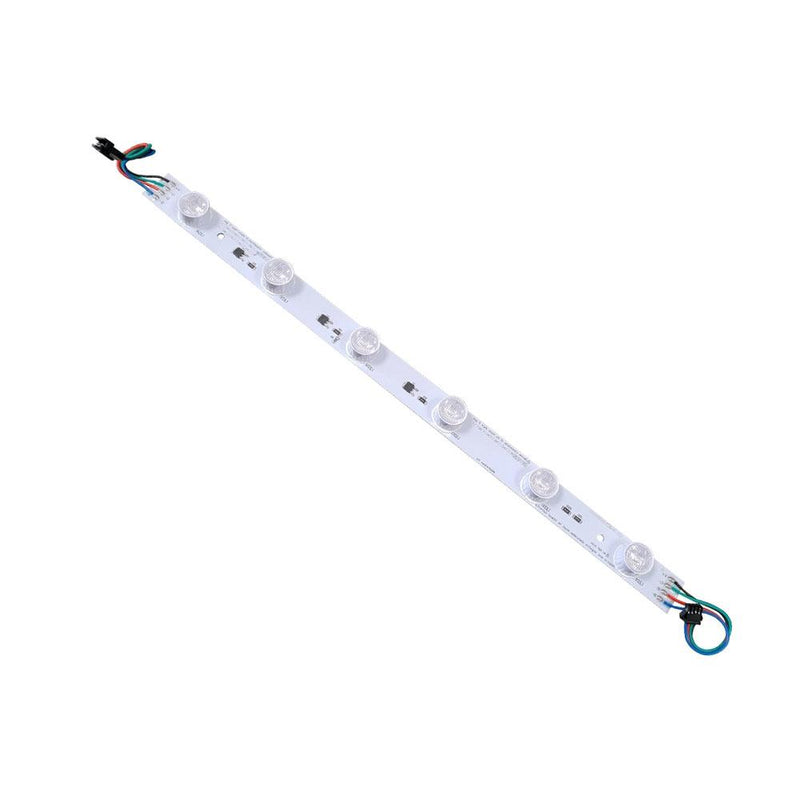

The 19 inches long 24V DC RGB LED LumaStrip Light is designed to provide the superior-quality lighting outputs with vibrant colors. They are great for large retail displays and graphic lightboxes. We have designed the RGB LED LumaStrip Light that gives you the best performance and versatility.

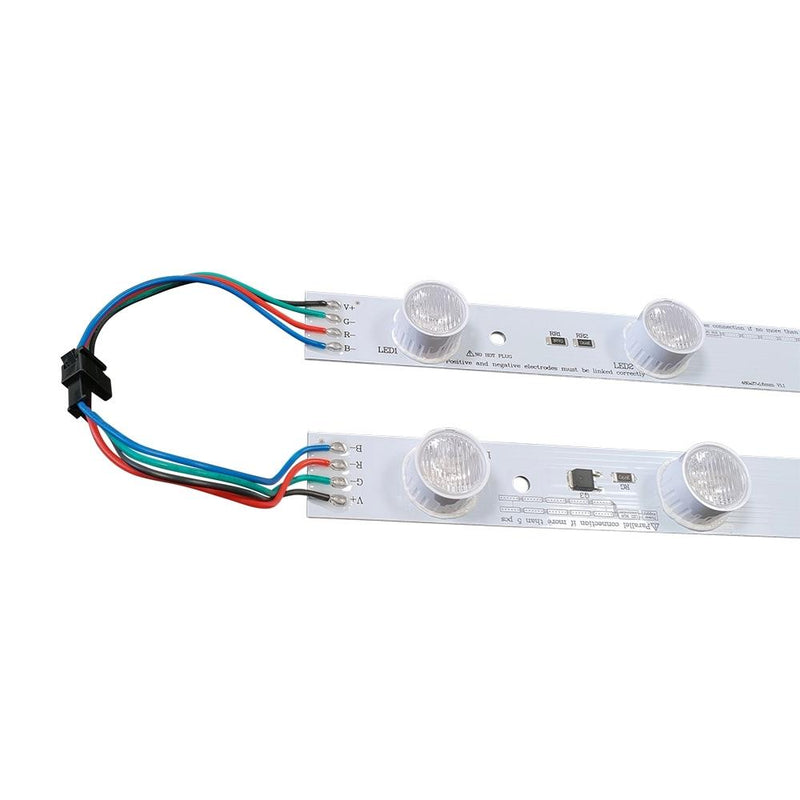

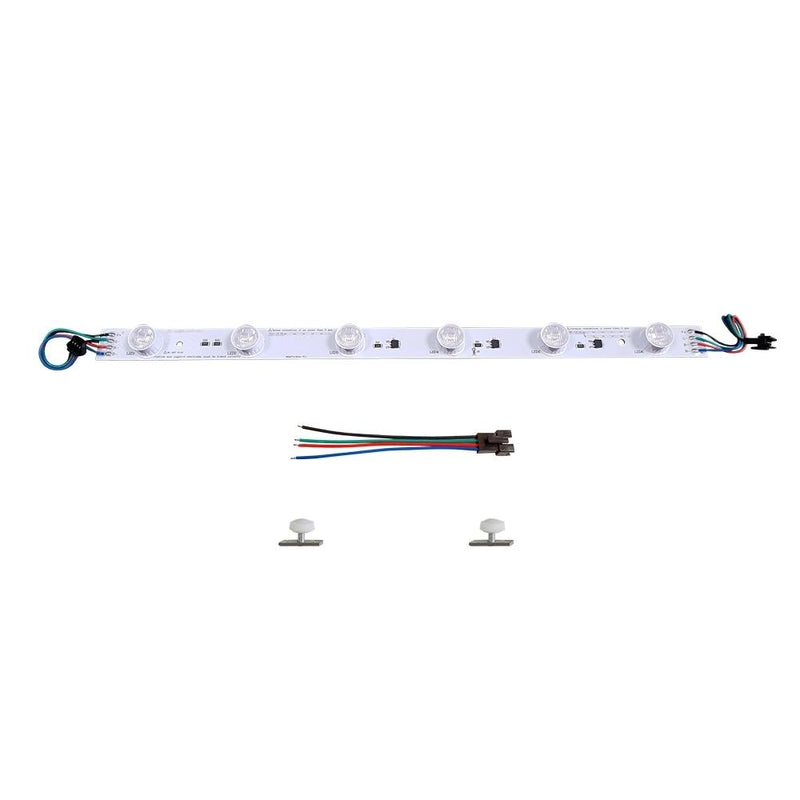

Color Changing RGB LED Lumastrip Lights are energy efficient, frameless, and low profile. Each RGB Lumastrip Lights can be linked together with supplied connectors for continuous run. By simply placing these fixtures on the interior of any extrusion, Lumastrip will effectively showcase your graphic or product evenly illuminating the entire display.

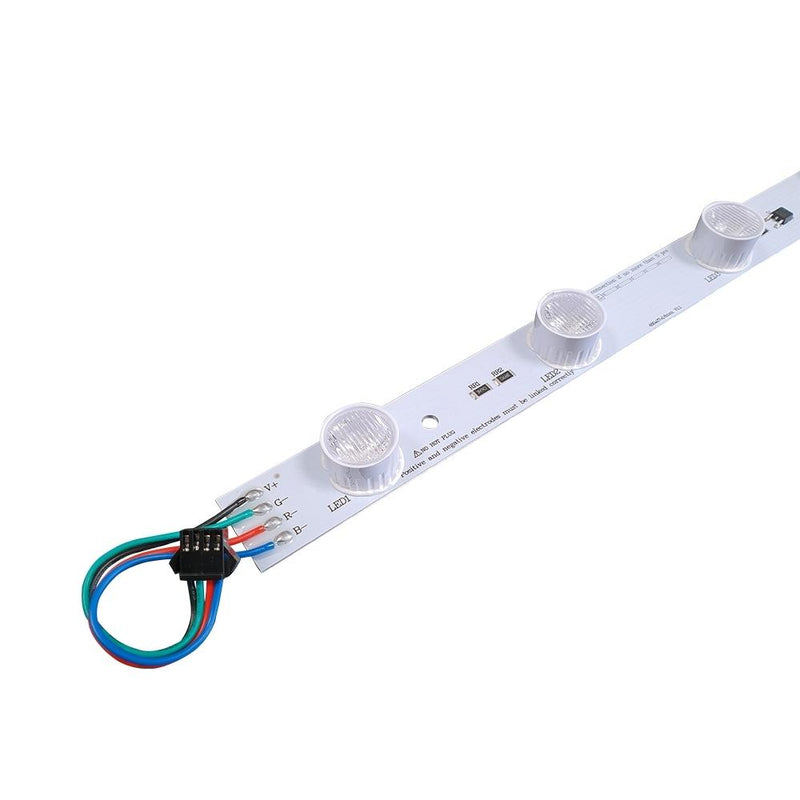

Each of the LED RGB LumaStrip Light Modules utilizes a diffuser lens around the LED chipset to distribute colorful lights evenly at a beam angle up to 60°. This allows it to illuminate shallow lightboxes with virtually no hot spots.

Need help with your LED lighting applications? Our lighting experts are here to help! Contact us today for assistance with lighting plan or installation instructions.

* Required: Requires 24V DC LED Power Supply and RGB Controller. Sold Separately

Key Features

  • No hotspots & uniform illumination
  • Maintenance-free & Cost-effective light source
  • RGB LED Chipsets are colorful, ultra-bright, and energy-efficient
  • No RF interference
  • Easy Installation
  • Up to 50,000 hours Lifespan
  • UL Listed

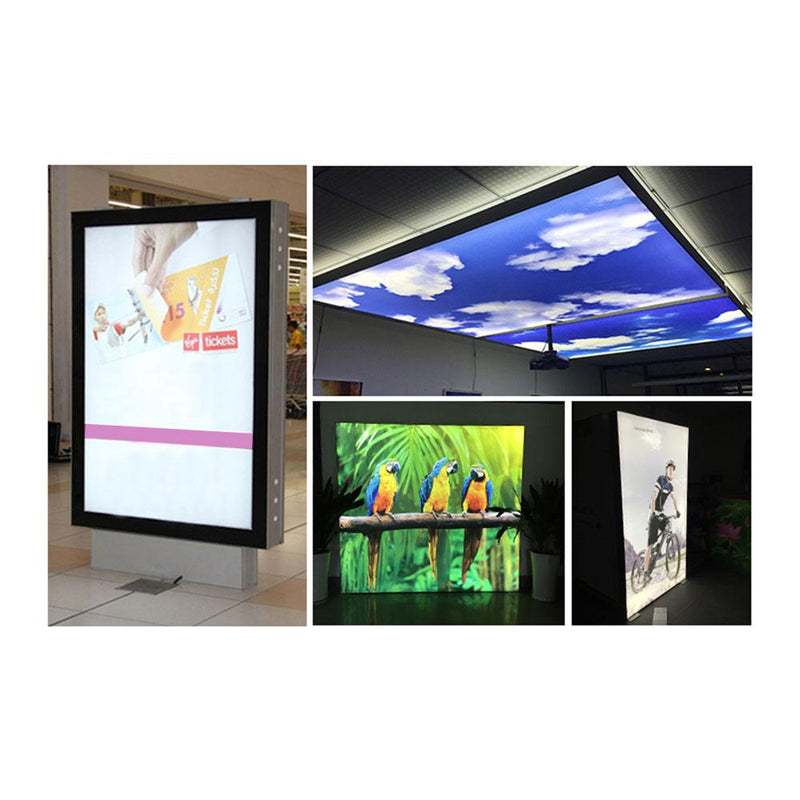

Applications

  • Retail Display
  • SEG Graphic Display Light Boxes
  • Back-lit Graphics
  • Custom DIY project

Specifications

View Spec Sheet

Brightness ~600 Lumens
Power (Watts) 18 Watt
Input Voltage 24V DC
LED Colors RGB - Red, Green, Blue
IP Rating IP20
Environment Indoor Use - Dry Location
LED Beam Angle 60°
LumaStrip Length 19 in long
Module Width 1 in / 25.4 mm wide
Module Height 0.5 in / 12.7 mm thick
Mounting Screw through pre-drilled holes on each module
Manufacturer Elumalight
Rating UL Listed
Avg. Lifetime ± 30,000 - 50,000 hours
Warranty 3 years limited
Remarks *Not to exceed 80% of LED Driver Capacity. Not recommended to be surface mounted directly onto wooden surfaces.
