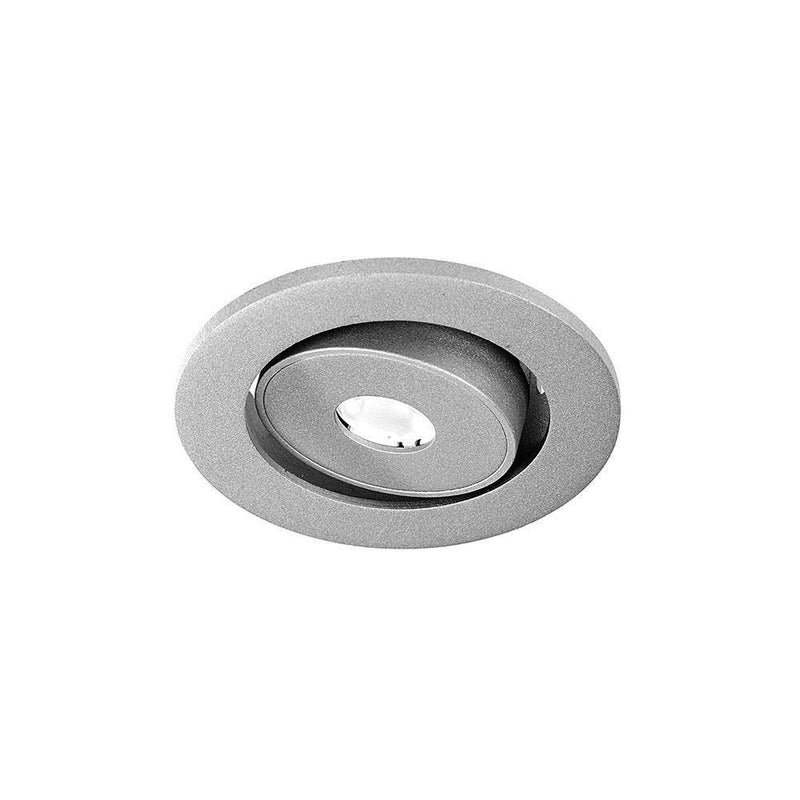

LED Swivel Downlight 1.2-3 Watt
The 1.2-3 Watt LED Swivel Downlight is one of our most powerful and efficient recessed fixtures. It is a fully recessed LED light that adds brightness, focused illumination to any space.
The EL-SWI1 fits into walls, ceilings, cabinetry, under countertops, bars, display cases, home entertainment centers, and retail window displays. The LED Swivel fixture is made of cast aluminum and features an adjustable gimbal design for directed lighting with 15° axial swivels.
The LED recessed gimbal light can fit into tight spaces for easy installation. It is adjustable as a spotlight and can swivel to the beam directions desired. Available in 3000K Warm White or 5000K Cool White LED CCT options.
Need help with your LED lighting applications? Our lighting experts are here to help! Contact us today for assistance with lighting plan or installation instructions.
* Required: The LED Swivel Downlight requires 350mA or 700mA LED Power Supply, optional power cord, 350mA or 700mA Connection block if connecting more than one fixture in an area, and 350mA or 700mA Closed Loop if not using all ports in connection block. Sold separately.
Key Features
- Maintenance-free
- Solid-State Construction
- No IR or UV radiation
- Suitable for flat ceiling or under-cabinet installations
- Easy to mounting and install with tension spring clamps
- LEDs Chipsets are high intensity, ultra-bright, and energy-efficient
- No RF interference
- Long lifespan: Up to 50,000 hours
Applications
- Decorative Lighting for Tradeshows, Exhibition, Retail Displays
- Architectural lighting for corridors, canopies, archways,
- Downlighting or Uplighting Recessed Applications
- Under-cabinet, Under-Counter, or accent lighting
Specifications
Brightness | 200 Lumens |
---|---|
Power (Watts) | 1.2 Watt - 350 mA 3 Watt - 700 mA |
Input Voltage | 350 mA / 700 mA |
LED CCT | 3000K or 5000K |
IP Rating | IP20 |
Environment | Indoor Use - Dry Location |
LED Beam Angle | 15 - 40° |
LED Density | 1 LED |
Cut-out Diameter |
1.81 in / 45.97 mm |
Gimbal Diameter |
2.06 in / 52.32 mm |
Gimbal Depth |
1 in / 25.4 mm |
Finish | Black, White, Satin Nickel, Bronze |
Manufacturer | Elumalight |
Rating | UL, ETL Listed |
Avg. Lifetime | ± 30,000 - 50,000 hours |
