LED RGBW Sign Module Light 12V DC

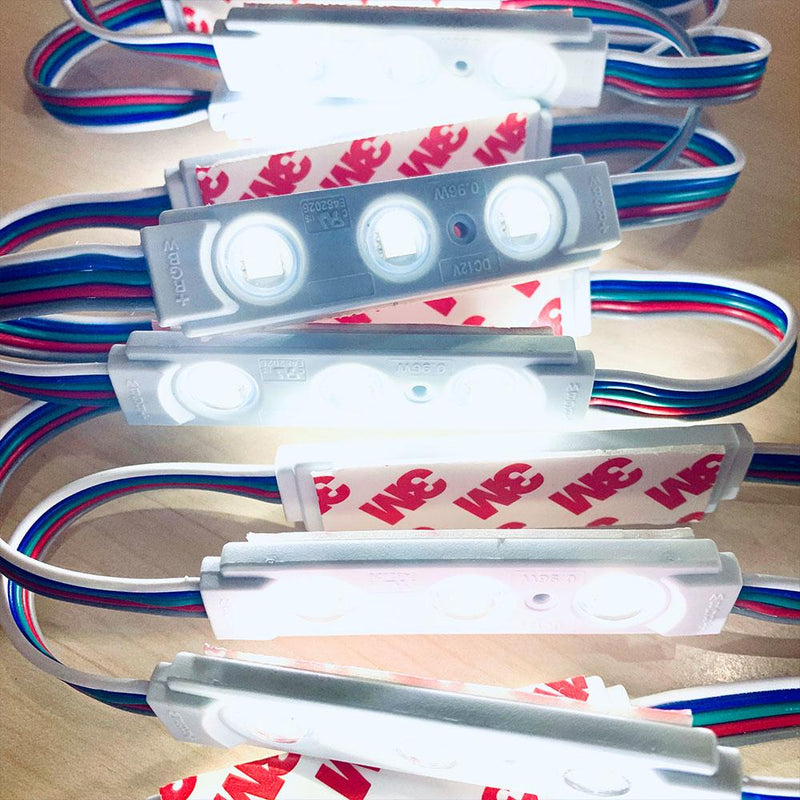

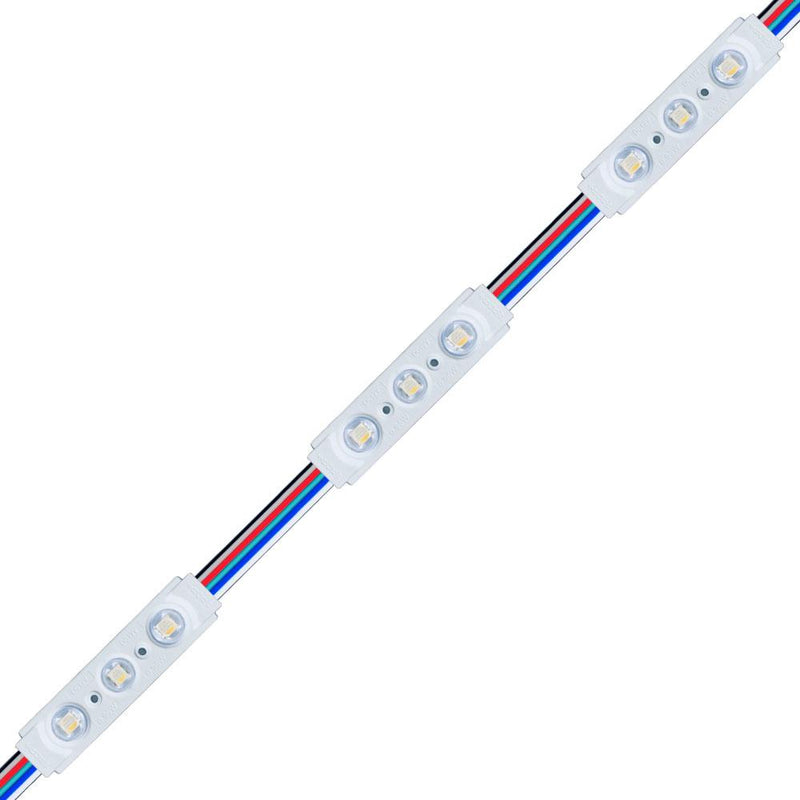

12V DC Color Changing RGBW LED Sign Module lights are rated IP65 for outdoor or indoor lighting applications. They come with flexible wires and easy to install. Because the wires are flexible, you can easily arrange your LED modules around your installation as desired. It contains 3 energy-efficient RGB LED Chipsets per module for a 140° beam angle. Each LED module is made with an injection-molded PVC plastic housing that is rigid and lightweight.

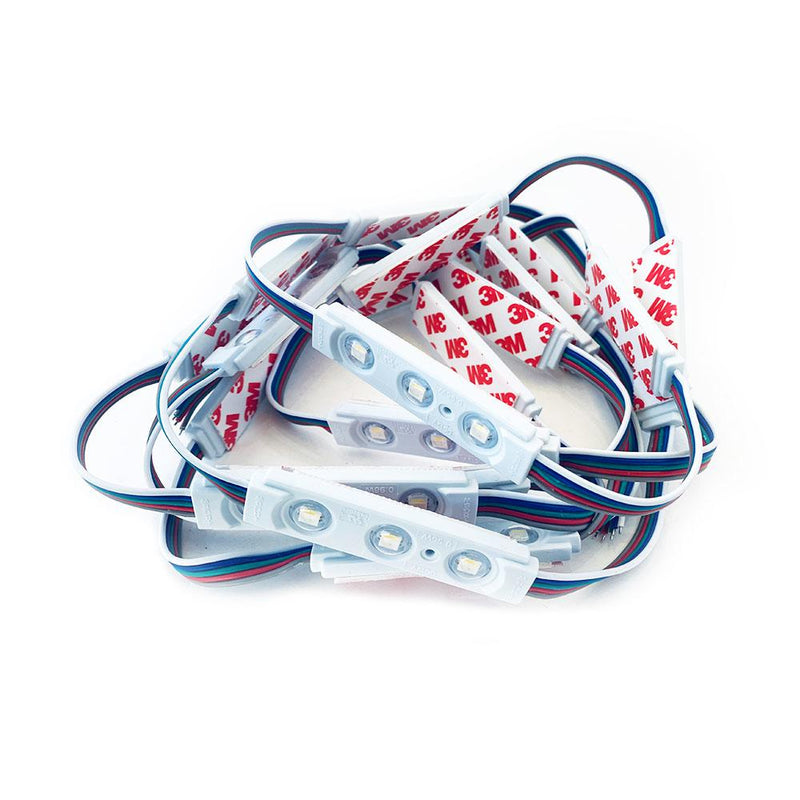

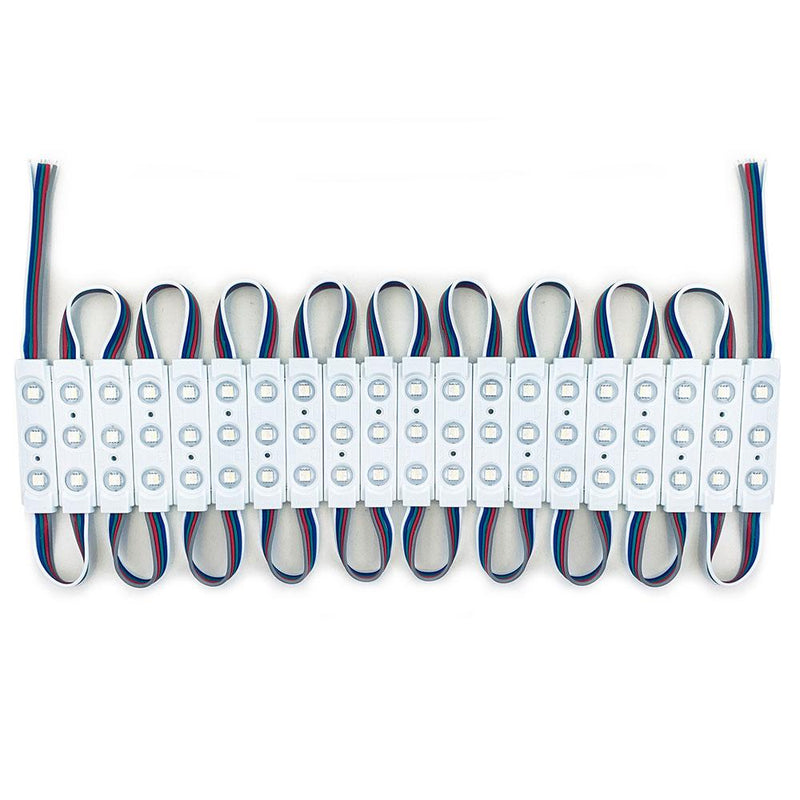

About 3.25 inches of wire between the RGBW LED modules. 2 modules per 1 ft. length. Each set comes with 20 modules per string. Priced per module. To purchase a full set of LED sign modules, enter 20 units in the quantity box.

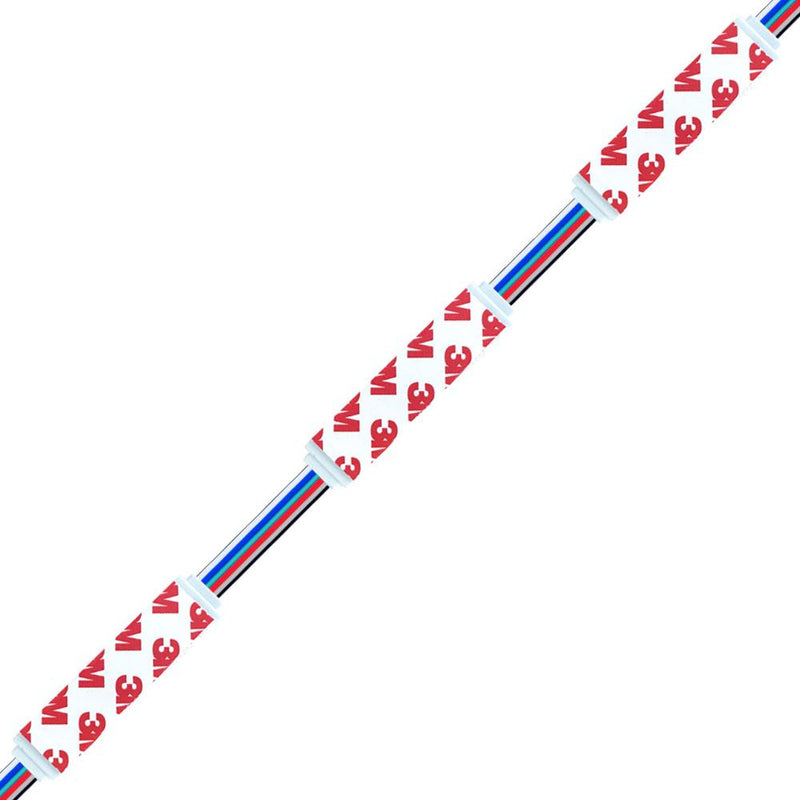

Each LED RGBW sign module comes with double-sided 3M foam tape on its back. Simply peel and stick the LED module to the position desired.

They are dimmable if used with compatible RGBW controller and drivers. LED RGBW controllers and drivers are sold separately. Cut LED modules are not returnable. Use with DMX Operating Control Board for custom lighting scene.

Need help with your LED lighting applications? Our lighting experts are here to help! Contact us today for assistance with lighting plan or installation instructions.

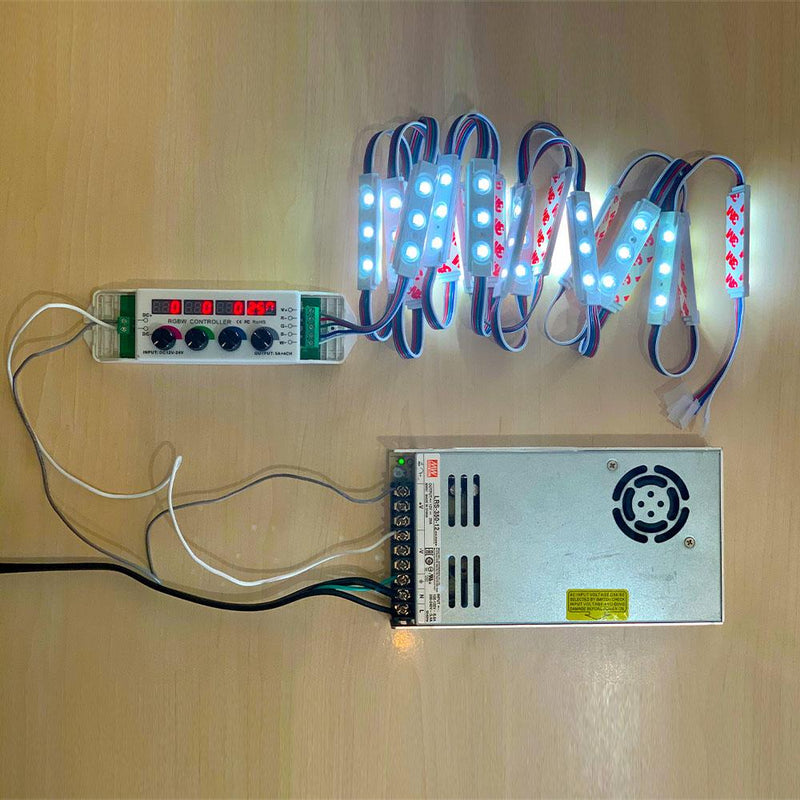

 * Required: Requires RGBW Controller and non-dimming or dimming 12 volt DC driver.

Key Features

  • Rated IP65 for Indoor or Outdoor Environments
  • Easy to Install with 3M tape backing

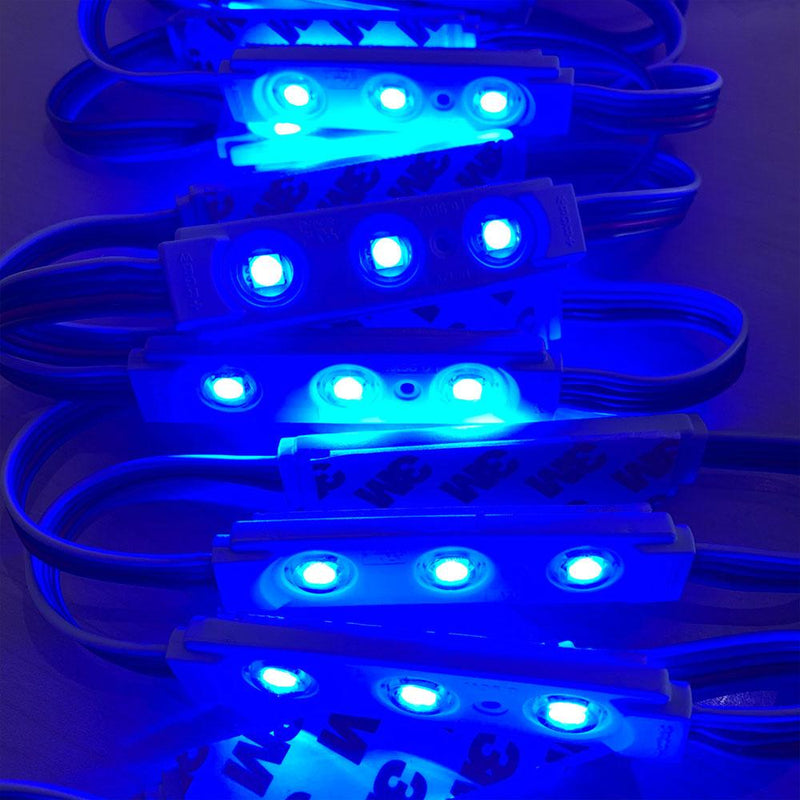

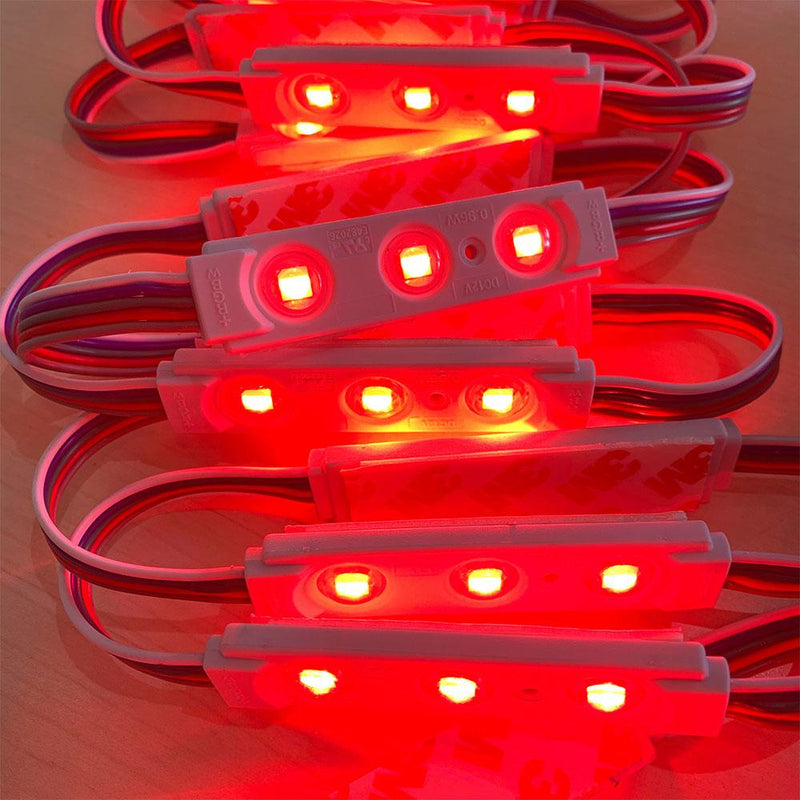

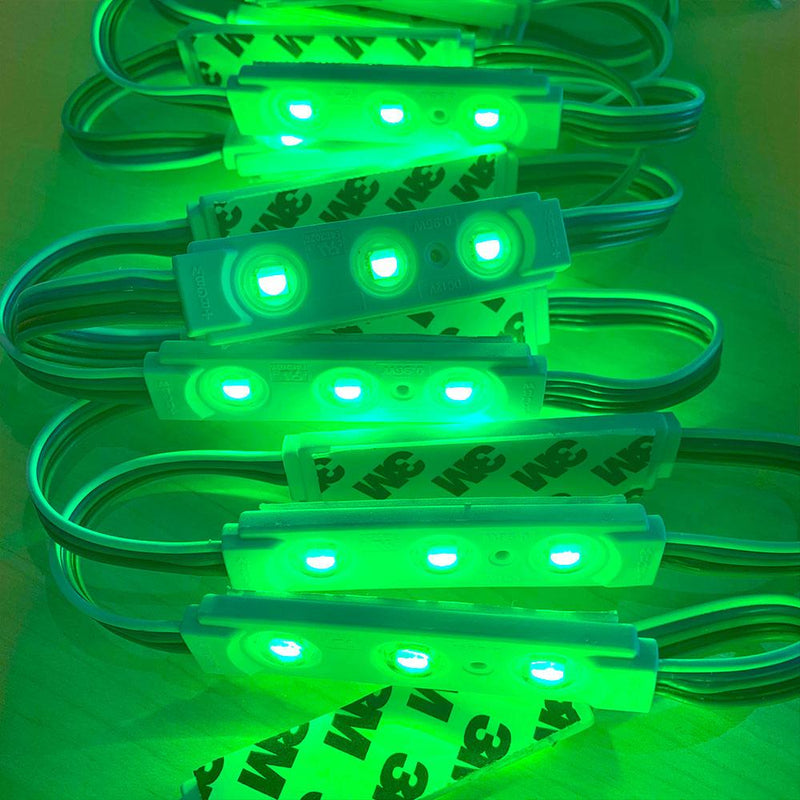

  • Vibrant RGBW (Red, Green, Blue, White) LED Color
  • Maintenance-free
  • Solid-State Construction
  • High shock and Vibration Resistance
  • Low power consumption
  • Up to 50,000 hours Lifespan
  • UL, ETL Listed


  • Decorative Lighting for Tradeshows, Exhibition, Retail Displays
  • Retail Stores, Restaurants, Casinos, Lounges, and Residential Homes
  • Architectural lighting for corridors, canopies, archways, or windows
  • Downlighting or Uplighting Applications
  • Backlighting or Edge-Lighting
  • Under-cabinet, Under-Counter, or cove lighting
  • Custom DIY projects


View Spec Sheet

Brightness ~100 Lumens/module
Power (Watts) 0.96 watt/module
Input Voltage 12V DC
LED Colors RGBW (Red, Green, Blue, 6000K Cool White)
LED Chip Size 5050
IP Rating IP65
Environment Outdoor Use - Wet Location
LED Beam Angle 140°
Module Length 2.91 in / 73.91 mm long
Module Width 0.70 in / 17.78 mm wide
Module Height 0.19 in / 4.83 mm thick
Wire Length (between modules)
3.25 in / 82.55 mm
Adhesive Backing 3M Adhesive
Manufacturer Elumalight
Rating UL, ETL Listed
Avg. Lifetime ± 30,000 - 50,000 hours
Warranty 3 years limited
