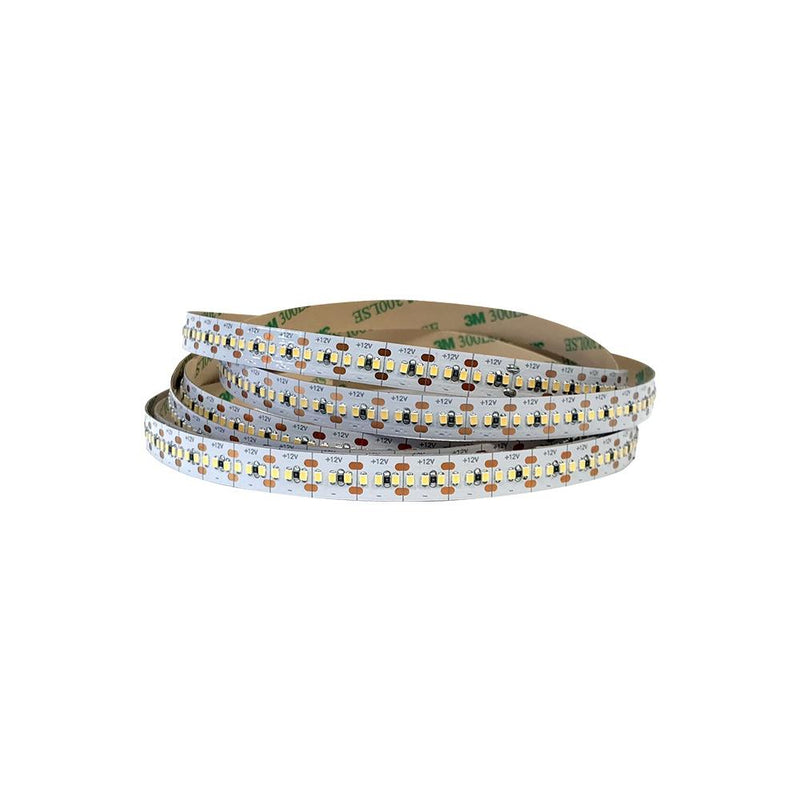

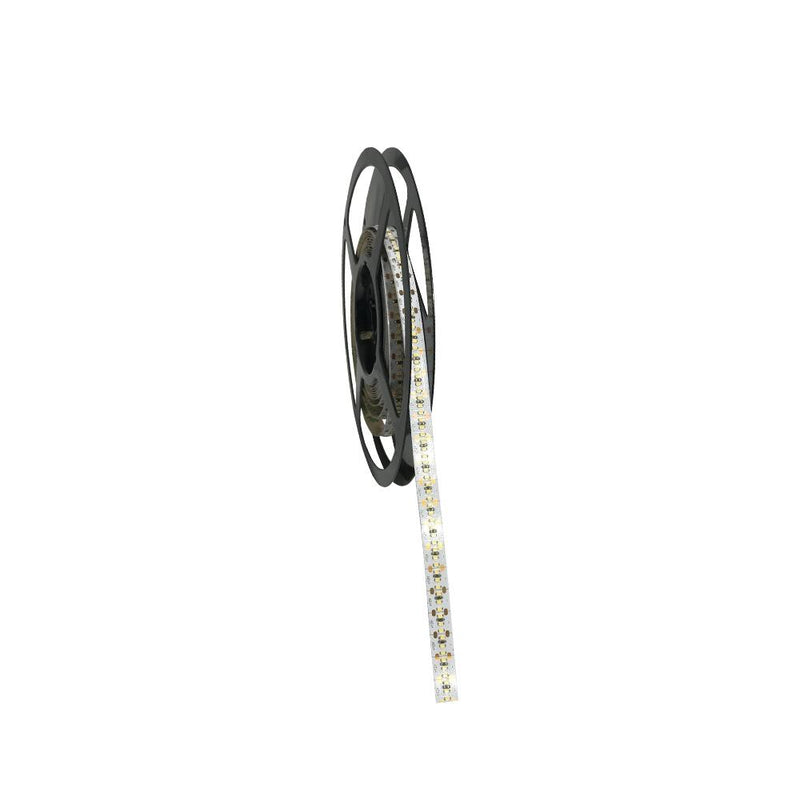

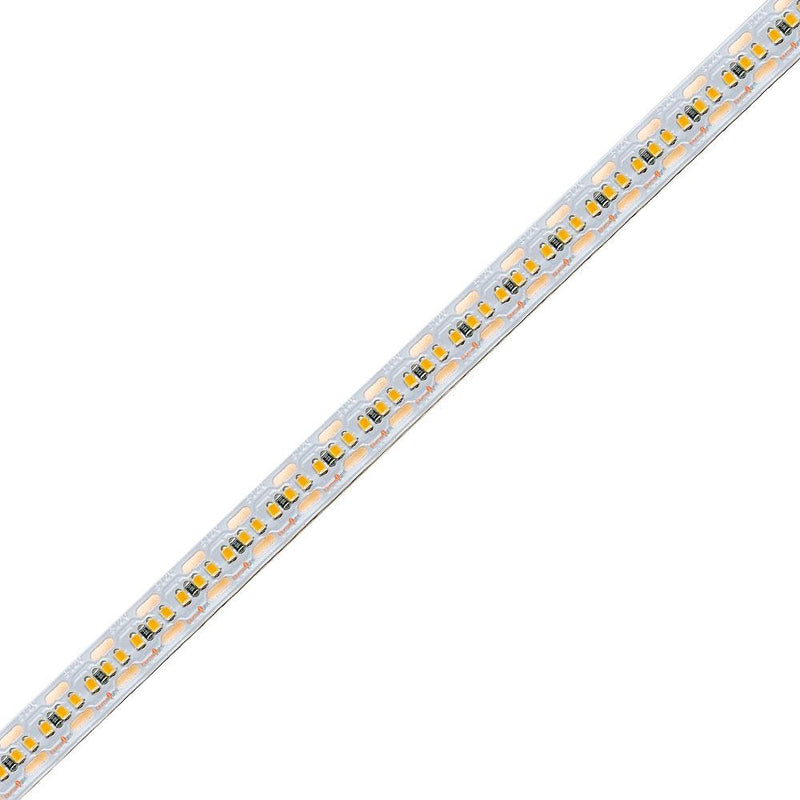

LED Ultra Density Tape Light 12V DC 16 ft Reel
12V DC LED Ultra Density Tape Light is made with commercial-grade SMD 2216 Chipsets with 100 LED Chips per foot length. Featuring 90+ CRI with high output and even illumination and perfectly designed for tradeshow decoration, exhibition lighting, retail display lighting, back-lighting applications, and more.
The Ultra Density LED Tape Light is fully dimmable when used with LED Dimmable Drivers. It is UL listed to ensure the durability and safety of the LED tape light's lifespan.

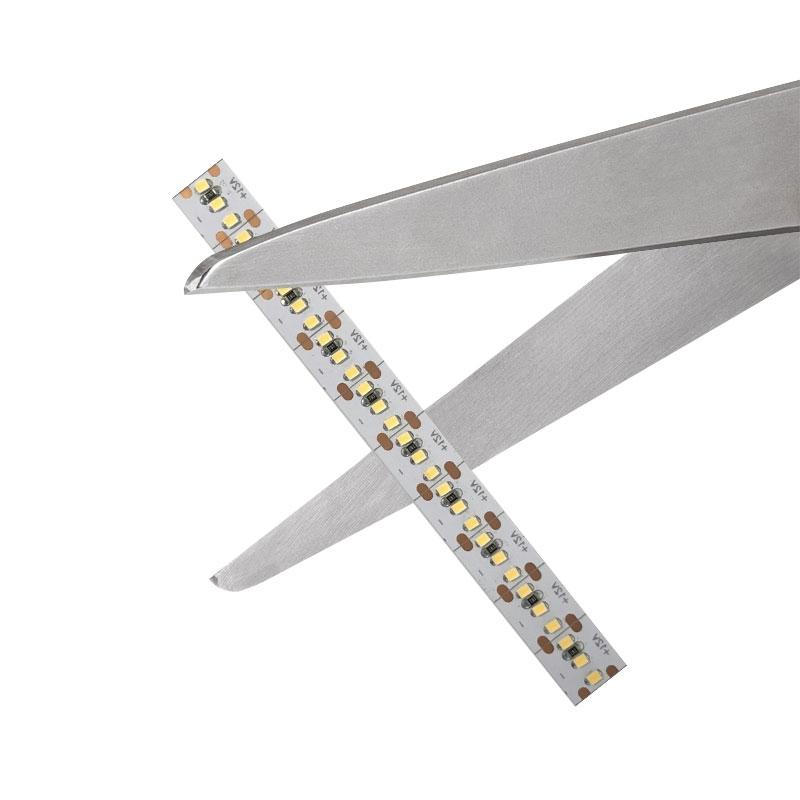

The LED Ultra Density Strip Light is made with wire leads on the ends of each reel and can be cut every 0.39 inch at its cut marking points, allowing you to cut pieces to the length desired. Hard-wiring and soldering upon installation.
* Required: Requires a non-dimming or dimming 12 volt DC driver.
Key Features
- Maintenance-free
- Solid-State Construction
- High shock and Vibration Resistance
- SMD 2216 LED Chips are high intensity, ultra-bright, and energy-efficient
- No RF interference
- Up to 50,000 hours Lifespan
- UL, ETL Listed
Applications
- Decorative Lighting for Tradeshows, Exhibition, Retail Displays
- Architectural lighting for corridors, canopies, archways, or windows
- Downlighting or Uplighting Applications
- Backlighting or Edge-Lighting
- Under-cabinet, Under-Counter, or cove lighting
- Custom DIY projects
Specifications
Brightness | 860 Lumens/ft 2821 Lumens/meter |
---|---|
Power (Watts) | 8 watt/ft 26.24 watt/meter |
Input Voltage | 12V DC |
LED CCT & Colors | 3000K Warm White |
CRI | 90+ |
IP Rating | IP20 |
Environment | Indoor Use - Dry Location |
LED Beam Angle | 180° |
LED Density | 100 LEDs/ft ~1600 LEDs/reel |
LED Chip Size | SMD 2216 |
LED Spacing | 0.13 in / 3.33 mm |
Length | 16.4 ft / 5 meters long |
Width | 0.39 in / 10mm wide |
Height | 0.039 in / 1 mm thick |
Cutting Increment | 0.39 in / 10 mm at cut marking |
Adhesive Backing | 3M Adhesive |
Manufacturer | Elumalight |
Rating | UL, ETL, RoHS |
Avg. Lifetime | ± 30,000 - 50,000 hours |
Warranty | 3 years limited |
