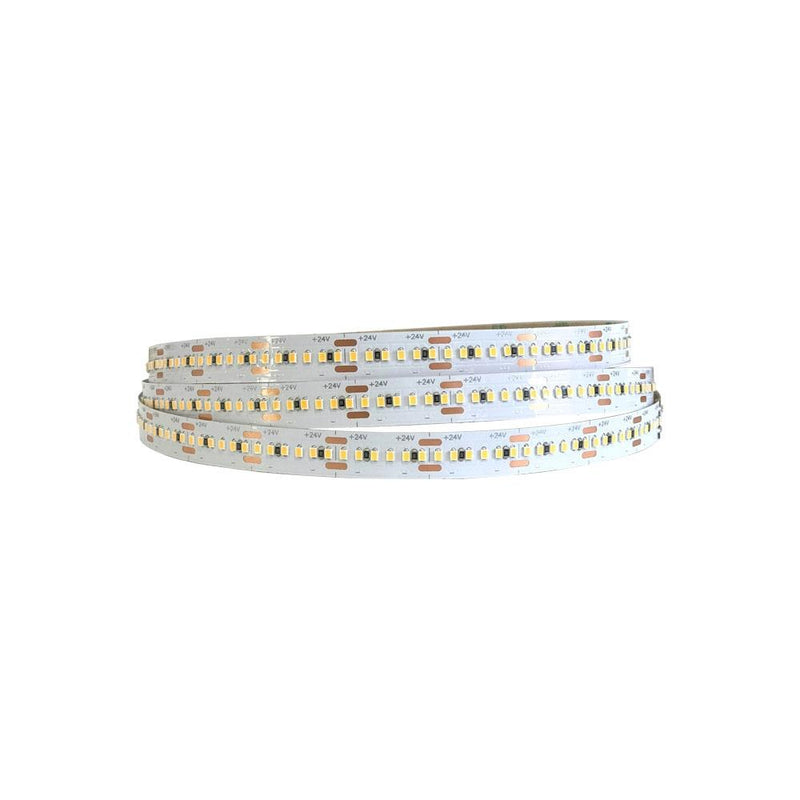

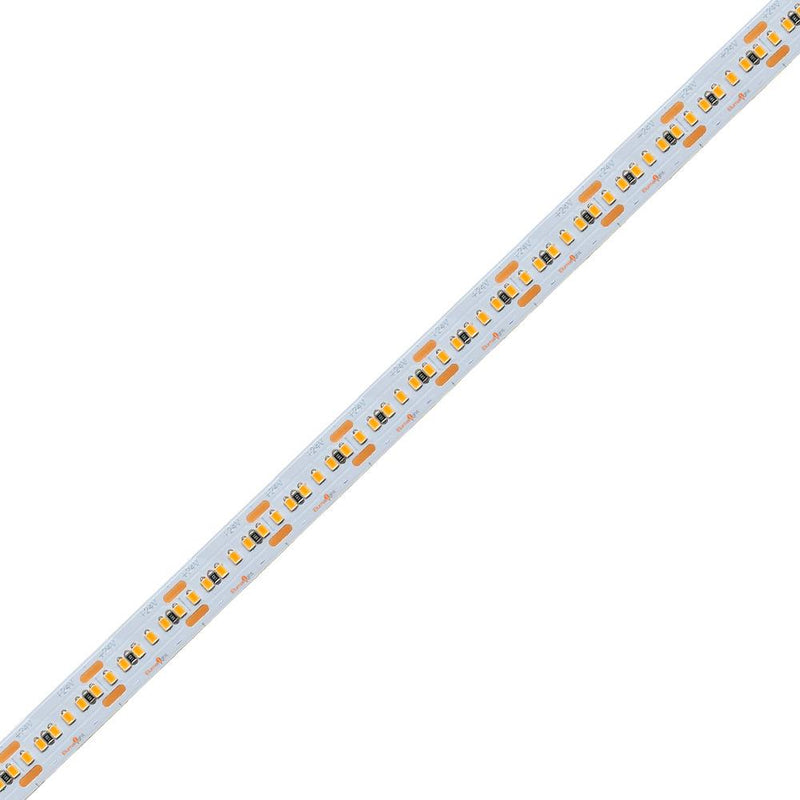

LED Ultra Density Tape Lights 24V DC 16 ft Reel

SKU EL-HO8-27K-16-24
Original price $54.00 - Original price $54.00
Original price
$54.00
$54.00 - $54.00
Current price $54.00

24V DC LED Ultra Density Tape Lights are made with commercial-grade SMD 2216 Chipsets with 100 LED Chips per foot length. Featuring 90+ CRI with high output and even illumination and perfectly designed for tradeshow decoration, exhibition lighting, retail display lighting, back-lighting applications, and more.

The 24V DC Ultra Density LED Tape Light is fully dimmable when used with LED Dimmable Drivers. It is UL listed to ensure the durability and safety of the LED tape light's lifespan.

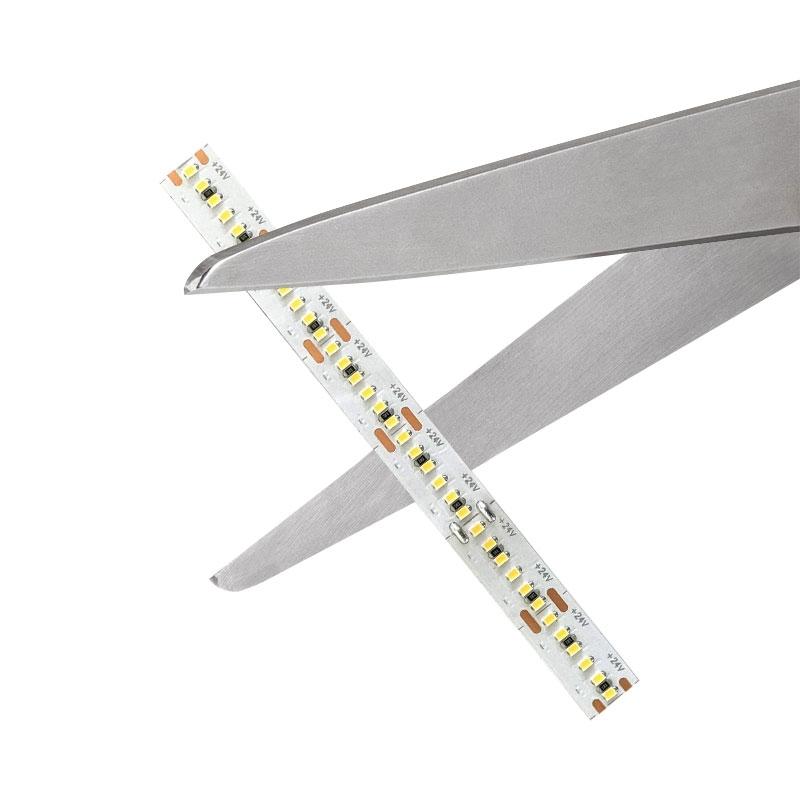

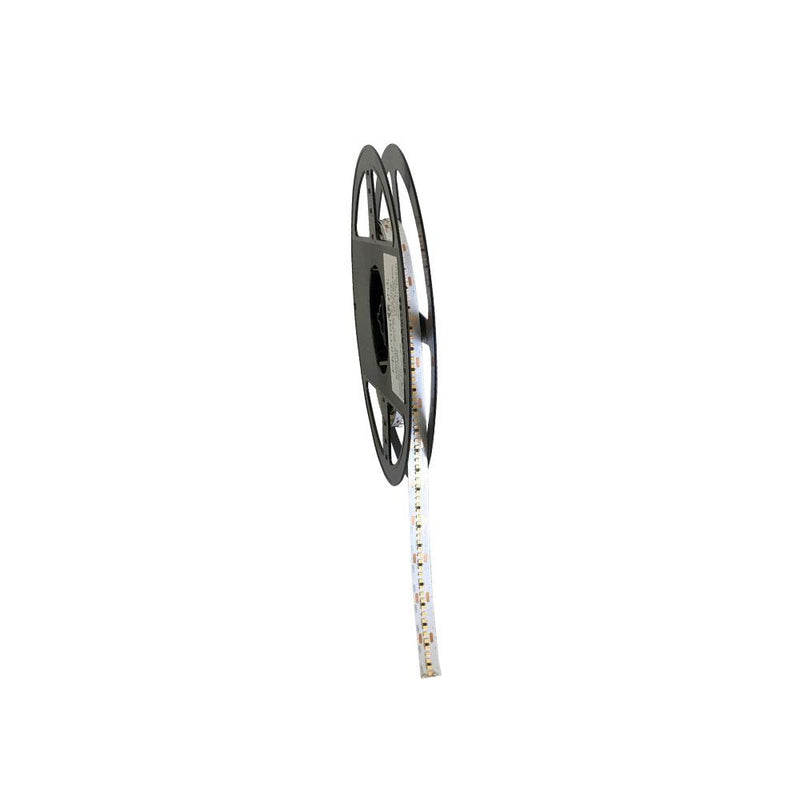

The LED Ultra Density Tape Lights are made with wire leads on the ends of each reel and can be cut every 0.79 inches (20 mm) at its cut marking points, allowing you to cut pieces to the length desired. Available in 4000k Natural White or 3000K Warm White CCT options. Sold in 16 ft reels. Hard-wiring and soldering upon installation.

* Required: Requires a non-dimming or dimming 24 volt DC driver.

Key Features

  • Maintenance-free
  • Solid-State Construction
  • High shock and Vibration Resistance
  • SMD 2216 LED Chips are high intensity, ultra-bright, and energy-efficient
  • No RF interference
  • Up to 50,000 hours Lifespan
  • UL, ETL Listed

Applications

  • Decorative Lighting for Tradeshows, Exhibition, Retail Displays
  • Architectural lighting for corridors, canopies, archways, or windows
  • Downlighting or Uplighting Applications
  • Backlighting or Edge-Lighting
  • Under-cabinet, Under-Counter, or cove lighting
  • Custom DIY projects

Specifications

View Spec Sheet

Brightness 860 Lumens/ft
2821 Lumens/meter
Power (Watts) 8 watt/ft
26.24 watt/meter
Input Voltage 24V DC
LED CCT & Colors 4100K Natural White
3000K Warm White
CRI 90+
IP Rating IP20
Environment Indoor Use - Dry Location
LED Beam Angle 180°
LED Density 100 LEDs/ft
~1600 LEDs/reel
LED Chip Size SMD 2216
LED Spacing 0.13 in / 3.33 mm
Length 16.4 ft / 5 meters long
Width 0.39 in / 10mm wide
Height 0.039 in / 1 mm thick
Cutting Increment 0.79 in / 20 mm
at cut marking
Adhesive Backing 3M Adhesive
Manufacturer Elumalight
Rating UL, ETL, RoHS
Avg. Lifetime ± 30,000 - 50,000 hours
Warranty 3 years limited
Power Supplies
24V DC Drivers
Accessories LED Tape Light Accessories
