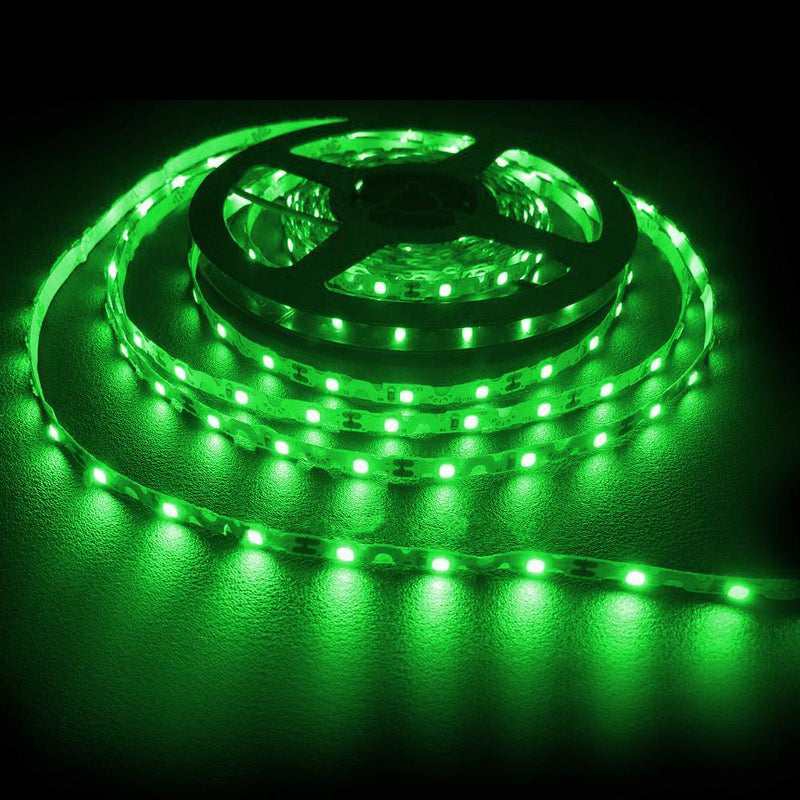

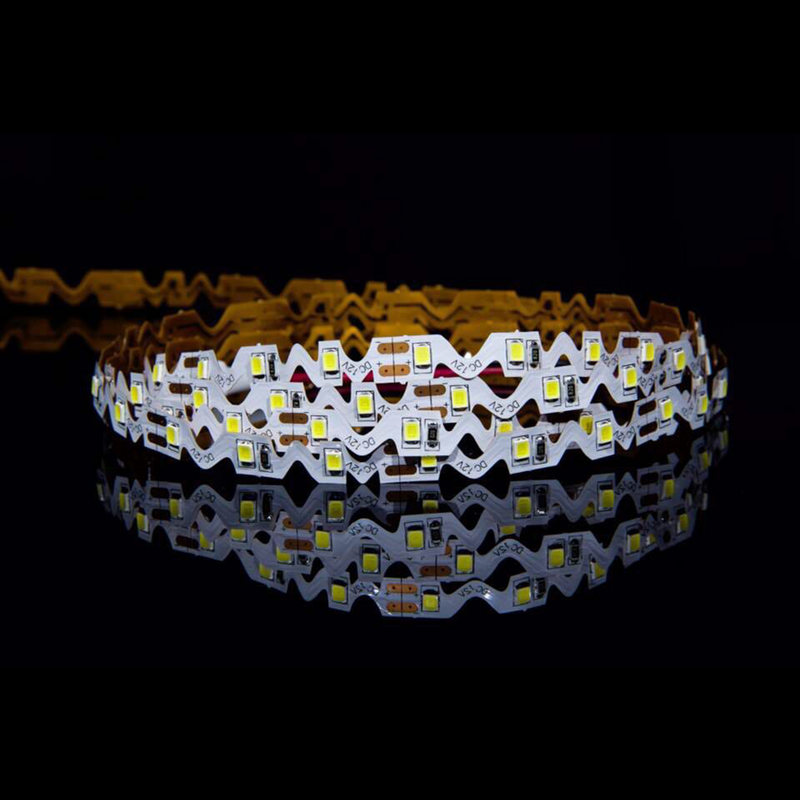

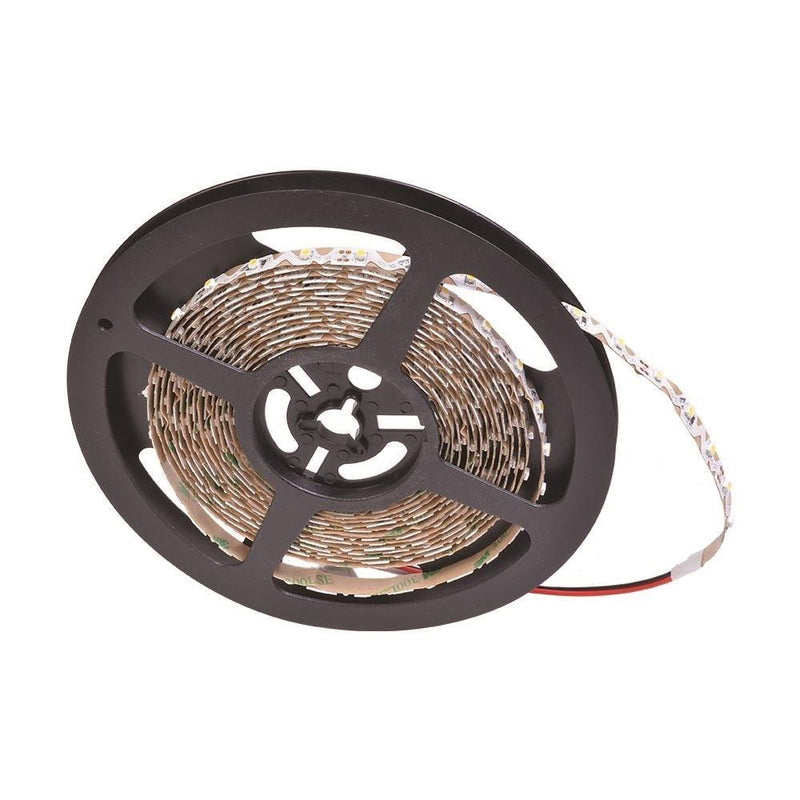

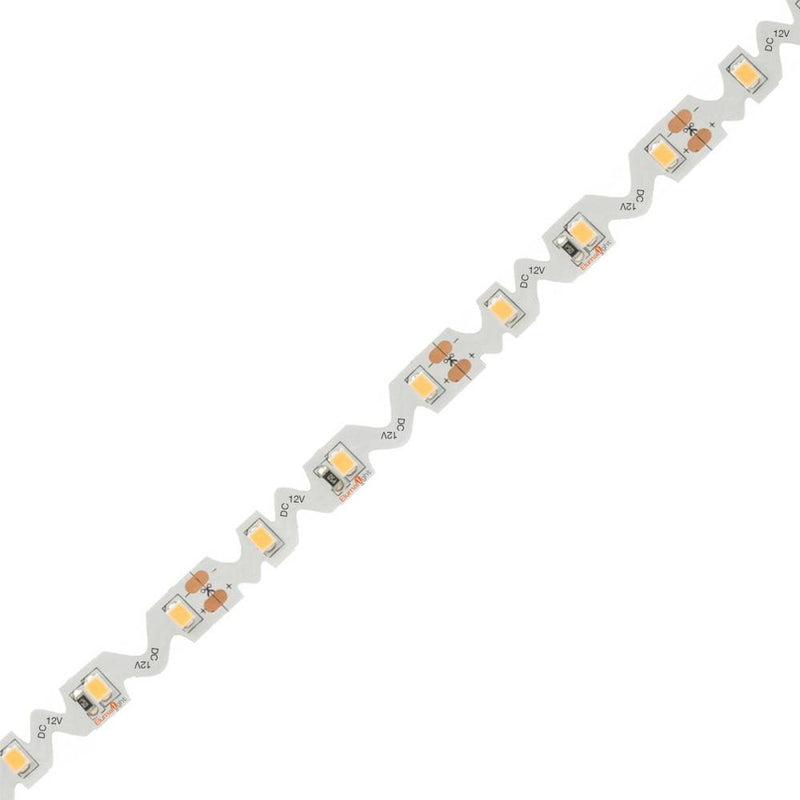

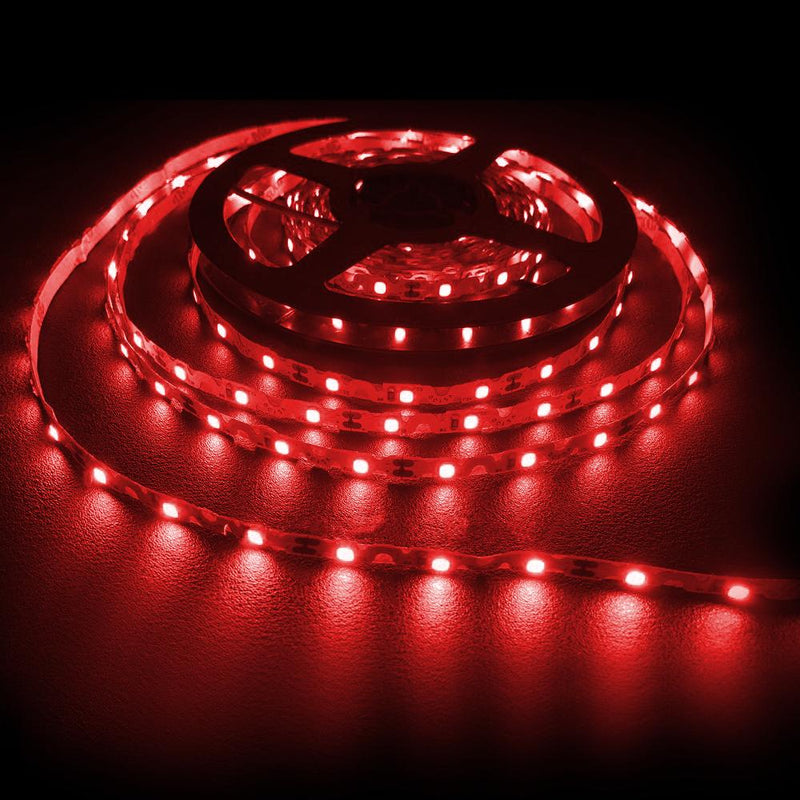

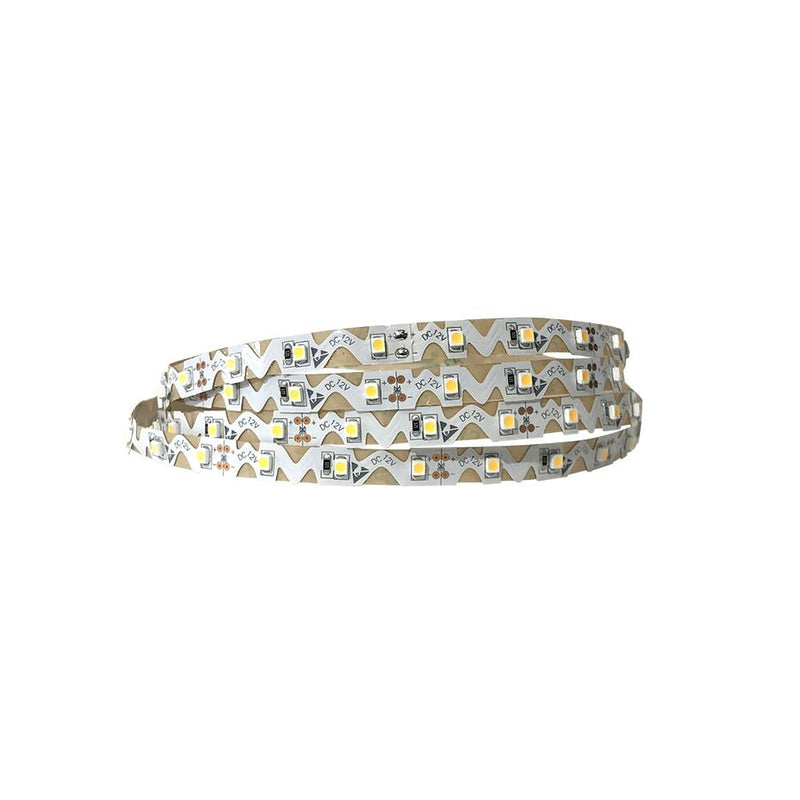

LED ZigZag Tape Lights 12V DC 16 ft Reel

SKU EL-FX-30K-16-12-NC
Original price $38.99 - Original price $65.00
Original price
$38.99
$38.99 - $65.00
Current price $38.99

ZigZag 12V DC Bendable Tape Lights are more flexible than the standard LED strip tape lights. It can be bent up to 90° horizontally without the need of using L shaped connectors and other accessories. The Zig-Zag LED Tape Lights gives you the flexibility to freely turn or twist on sharp corners and adhere to almost any surface or objects with exaggerated angles.

The LED Bendable Tape light is fully dimmable when used with LED Dimmable Drivers, see related products. It is UL listed to ensure the durability and safety of the LED tape light lifespan.

Additionally, each run of the LED Bendable Tape Light can be used for 3D Logo Letter Lighting, Sign Letter Lighting, Archway lighting, commercial lighting and more. The LED Bendable Strip Lights are made with wire leads on the ends of each 16.4 ft reel and can be cut every 2 inches at its cut marking points, allowing you to cut pieces to the length desired.

Required: Requires a non-dimming or dimming 12 volt DC driver.

Key Features

  • Maintenance-free
  • Solid-State Construction
  • High shock and Vibration Resistance
  • SMD 2835 LEDs Chipsets are high intensity, ultra-bright, and energy-efficient
  • No RF interference
  • Up to 50,000 hours Lifespan

Applications

  • Decorative Lighting for Tradeshows, Exhibition, Retail Displays
  • Architectural lighting for corridors, canopies, archways, or windows
  • Downlighting or Uplighting Applications
  • Backlighting or edge-lighting for sign letters
  • Under-cabinet, Under-Counter, or cove lighting
  • Custom DIY projects

Specifications

View Spec Sheet

Brightness 260 Lumens/ft
852.8 Lumens/meter
Power (Watts) 2.4 watt/ft
7.8 watt/meter
Input Voltage 12V DC
LED CCT & Colors 6000K Cool White
4100K Natural White
3000K Warm White
Red
Green
Blue
CRI 90+
IP Rating IP20
Environment Indoor Use - Dry Location
LED Beam Angle 120°
LED Density 18 LEDs/ft
300 LEDs/reel
LED Chip Size SMD 2835
LED Spacing 0.66 in / 16.7 mm
Length 16.4 ft / 5 meters long
Width 0.31 in / 8mm wide
Height 0.06 in / 1.6 mm thick
Cutting Increment 2 in / 50.8 mm
at cut marking
Adhesive Backing 3M Adhesive
Manufacturer Elumalight
Rating UL, ETL, RoHS
Avg. Lifetime ± 30,000 - 50,000 hours
Warranty 3 years limited
Power Supplies
12V DC Drivers
Accessories LED Tape Light Accessories
