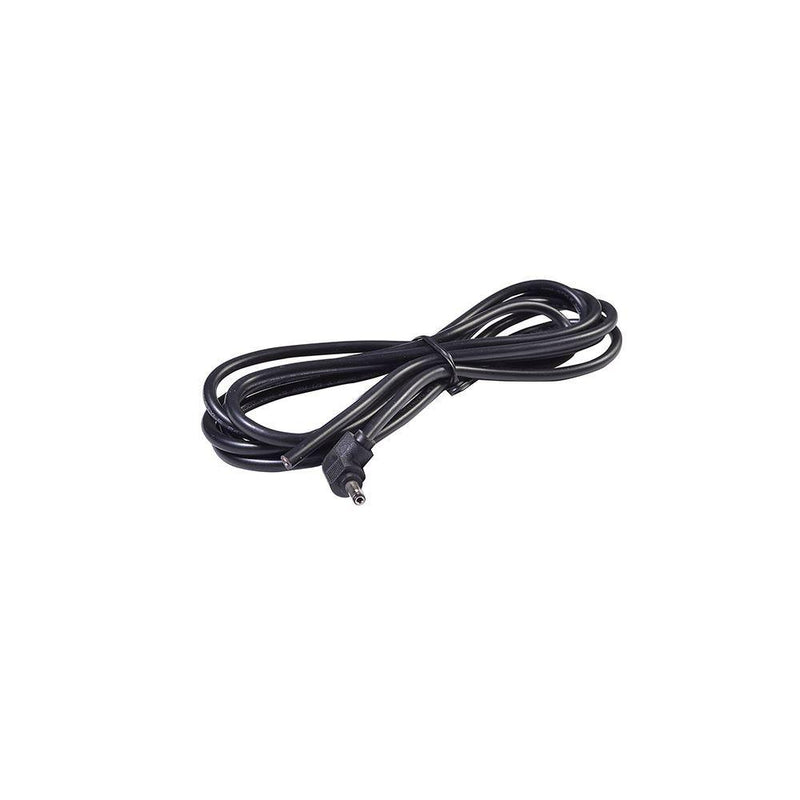

EL-N Titan Bar Angle Male Connector Hardwire Power Feed 36 in

SKU EL-N-AWPF-36

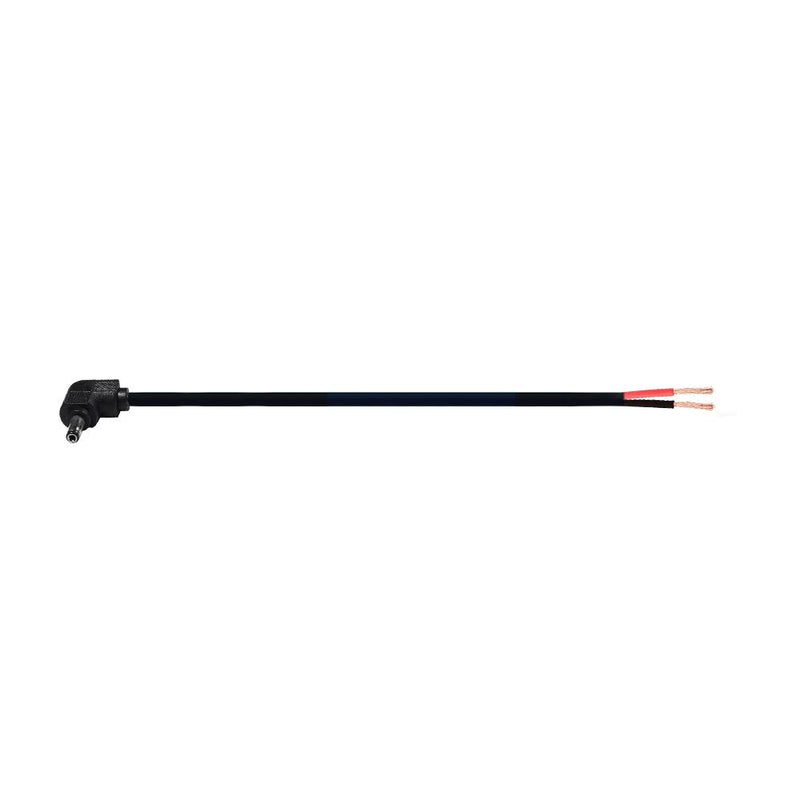

The DC Hardwiring Power Feed is made with 1.3 mm Coax-style in-line Male 90-degree angle DC Plug on one end and 22AWG 2 conductor wires (postive+ and negative-) on the other end.

Price per power feed. Available in 36 inches length. It can be custom cut to the desired length.

Easily connect the power feed angle male plug into the EL-N LED Titan Bar female end then hardwire spliced wires to the 12V DC dimmable or non-dimmable LED power supply.

Applications

  • For use with EL-N LED High Output Titan Bar Lights.

Specifications

  • Input Voltage: 12V DC
  • Male Plugs Outside Diameter: 3.3 mm (outer barrel)
  • Male Plugs Inside Diameter: 1.3 mm (inner barrel)
  • Wire Gauge: 22 AWG
  • Wire Lengths: 36 in
  • Wire Lengths (metric): 914 mm
  • Conductors: 2 (Positive + Wire, Negative - Wire)
  • Warranty: 1 year
