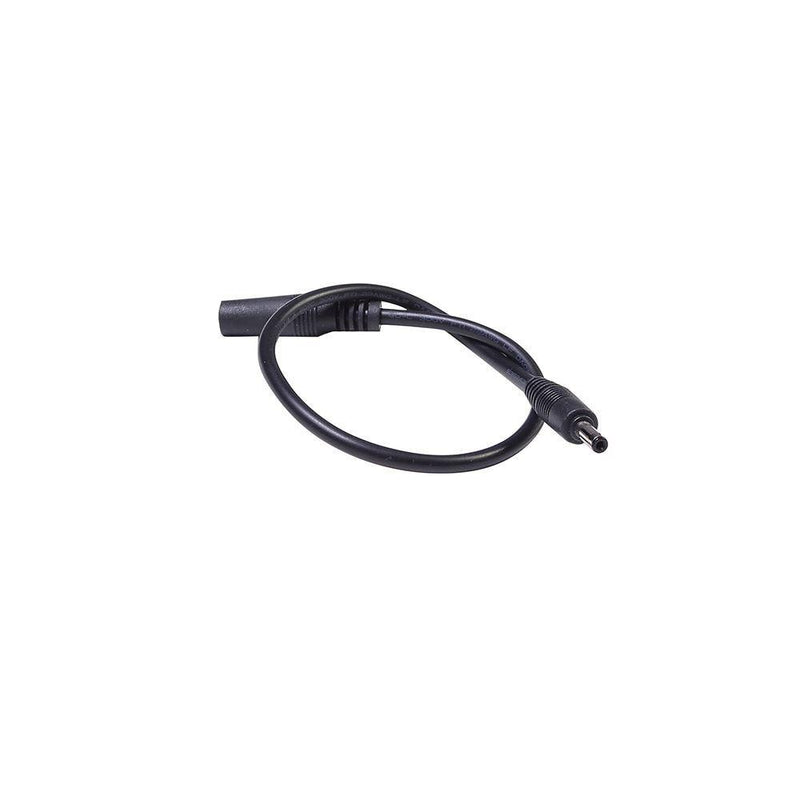

EL-N Titan Bar DC Power Feeds

SKU EL-N-DPF-8

The DC Power Feeds are made with 1.3 mm Coax-style in-line Male DC Plug on one end and 2.5 mm Female DC Barrel Plug on the other end.

Price per power feed. Available in 8, 16, or 36-inch cord length options.

Plug the power feed male connector to the female side of the LED Titan Bar then connect the power feed female connector to the male connector of 12V DC LED Plug N Play Driver.

Applications

  • For use with EL-N LED High Output Titan Bar Lights.

Specifications

  • Input Voltage: 12V DC
  • Male Plug Outside Diameter: 3.3 mm (outer barrel)
  • Male Plug Inside Diameter: 1.3 mm (inner barrel)
  • Female Plug Outside Diameter: 5.5 mm (outer barrel)
  • Female Plug Inside Diameter: 2.5 mm (inner barrel)
  • Wire Gauge: 22 AWG
  • Wire Lengths: 8 in, 16 in, or 36 in
  • Wire Lengths (metric): 203 mm, 406 mm, or 914 mm
  • Conductors: 2 (Positive + Wire, Negative - Wire)
  • Warranty: 1 year
