EL-N Titan Bar Male Connector Hardwire Power Feed 72 in

SKU EL-N-HWPF-72
Original price $7.43 - Original price $7.43
Original price
$7.43
$7.43 - $7.43
Current price $7.43

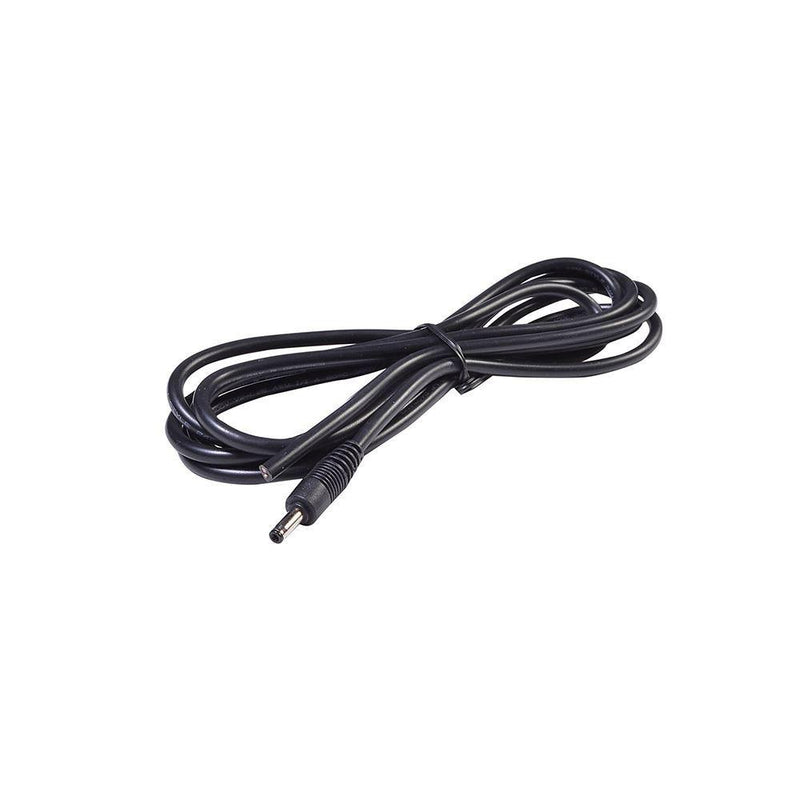

The DC Hardwiring Power Feed is made with 1.3 mm Coax-style in-line Male DC Plugs on one end and 22AWG 2 conductor wires (postive+ and negative-) on the other end.

Price per power feed. Available in 72 inches length. It can be custom cut to the desired length.

Easily connect the power feed male plug into the EL-N LED Titan Bar female end then hardwire spliced wires to the 12V DC dimmable or non-dimmable LED power supply.

Applications

  • For use with EL-N LED High Output Titan Bar Lights.

Specifications

  • Input Voltage: 12V DC
  • Male Plugs Outside Diameter: 3.3 mm (outer barrel)
  • Male Plugs Inside Diameter: 1.3 mm (inner barrel)
  • Wire Gauge: 22 AWG
  • Wire Lengths: 72 in
  • Wire Lengths (metric): 1829 mm
  • Conductors: 2 (Positive + Wire, Negative - Wire)
  • Warranty: 1 year
