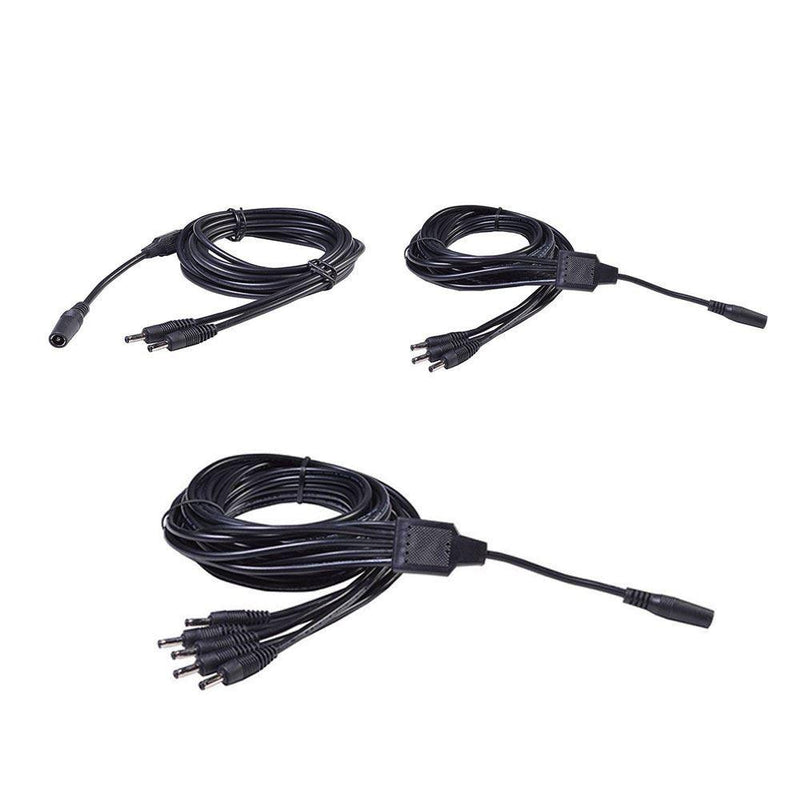

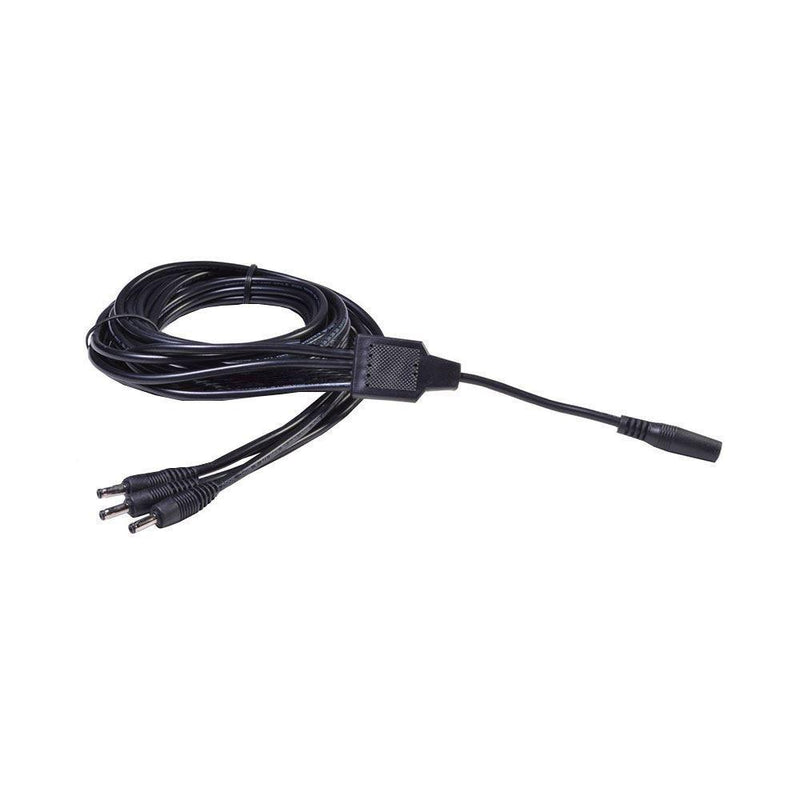

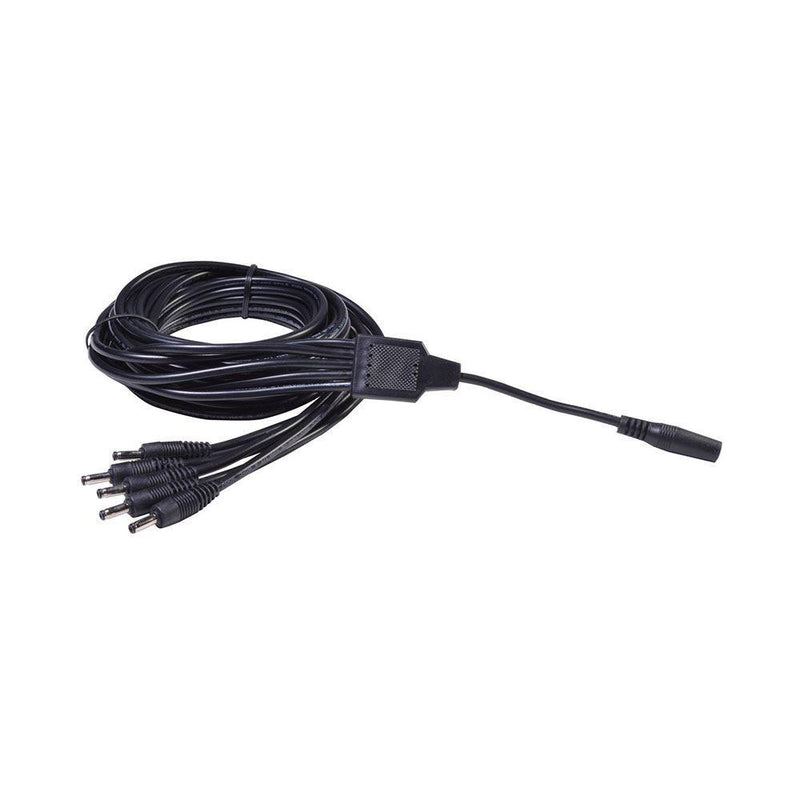

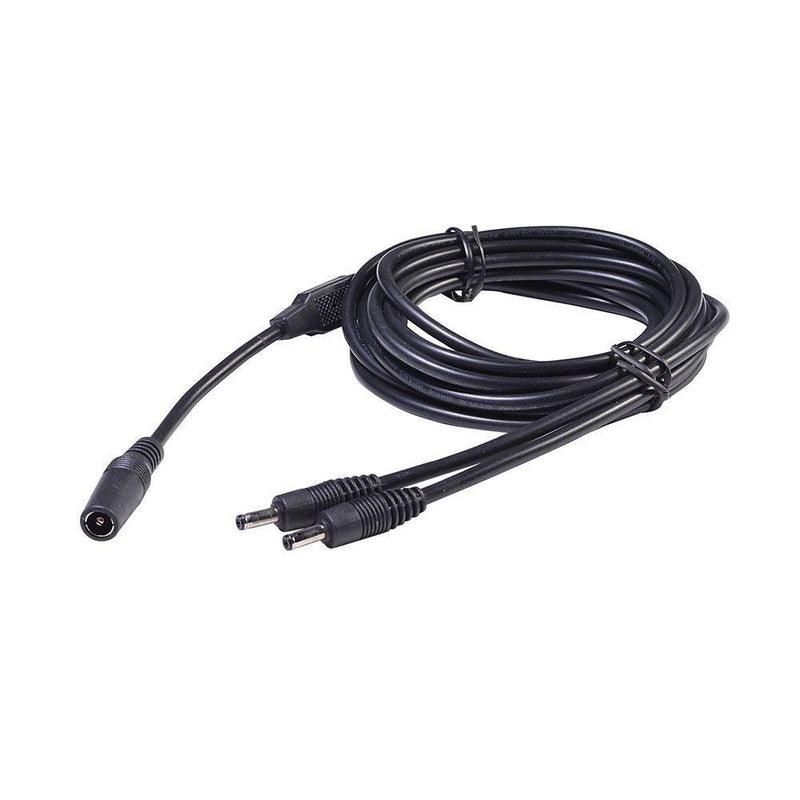

EL-N Titan Bar Male to Female Splitters


The DC Splitters are made with 1.3 mm Coax-style in-line Male DC Plugs on one end and 2.5 mm Female DC Plug on the other end.

Price per splitter. Available in 54 inches length. Easily plug multiple High Output LED Titan bars into these 2, 3, or 5-way splitters for simple and fast installation. The splitter female plug connects to the 12V DC Plug N Play power supply.


  • For use with EL-N LED High Output Titan Bar Lights to create multiple runs off one 12V DC Plug N Play driver.


  • Input Voltage: 12V DC
  • Male Plugs Outside Diameter: 3.3 mm (outer barrel)
  • Male Plugs Inside Diameter: 1.3 mm (inner barrel)
  • Female Plug Outside Diameter: 5.5 mm (outer barrel)
  • Female Plug Inside Diameter: 2.5 mm (inner barrel)
  • Wire Gauge: 22 AWG
  • Wire Lengths: 54 in
  • Wire Lengths (metric): 1.37 m
  • Conductors: 2 (Positive + Wire, Negative - Wire)
  • Warranty: 1 year
