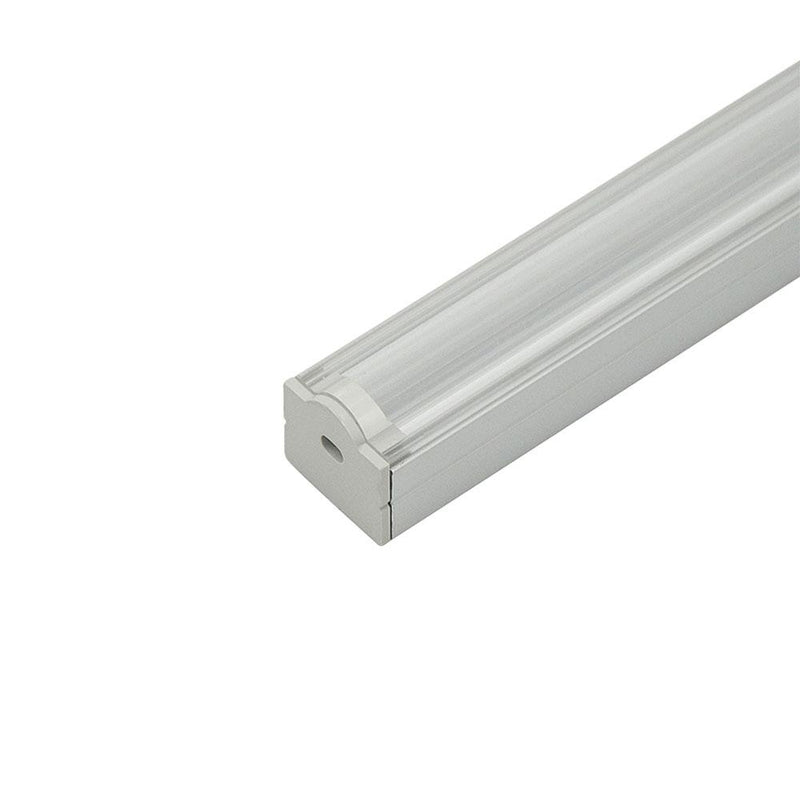

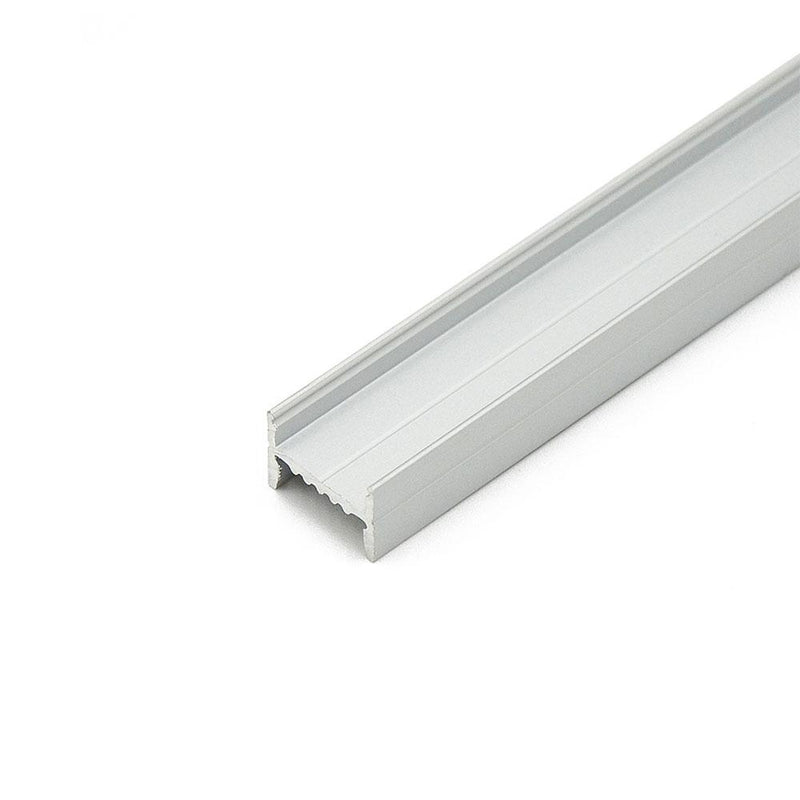

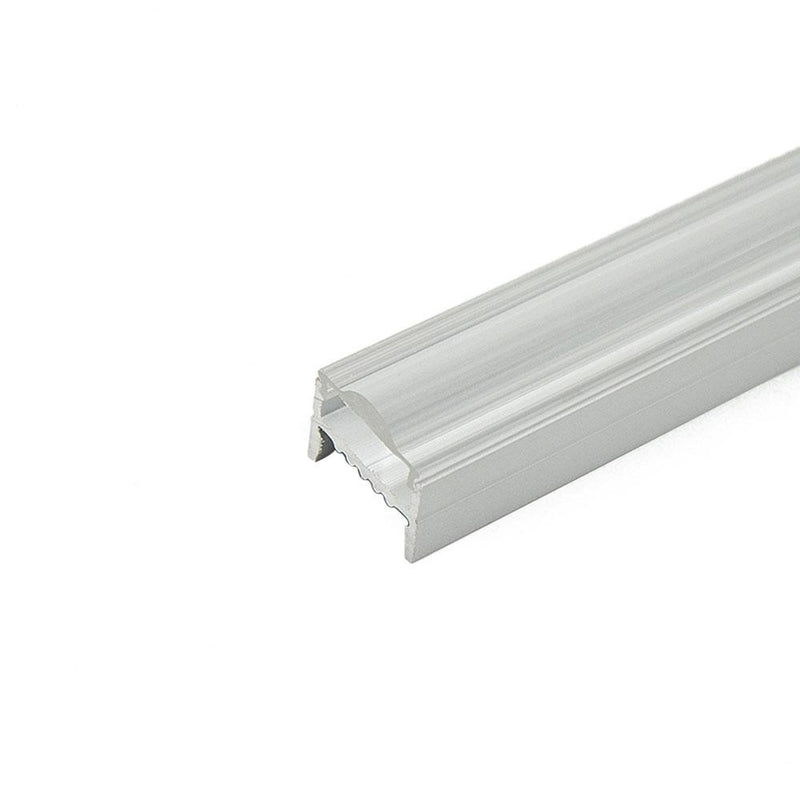

LED 30 Degree Wall Grazer Aluminum Channel

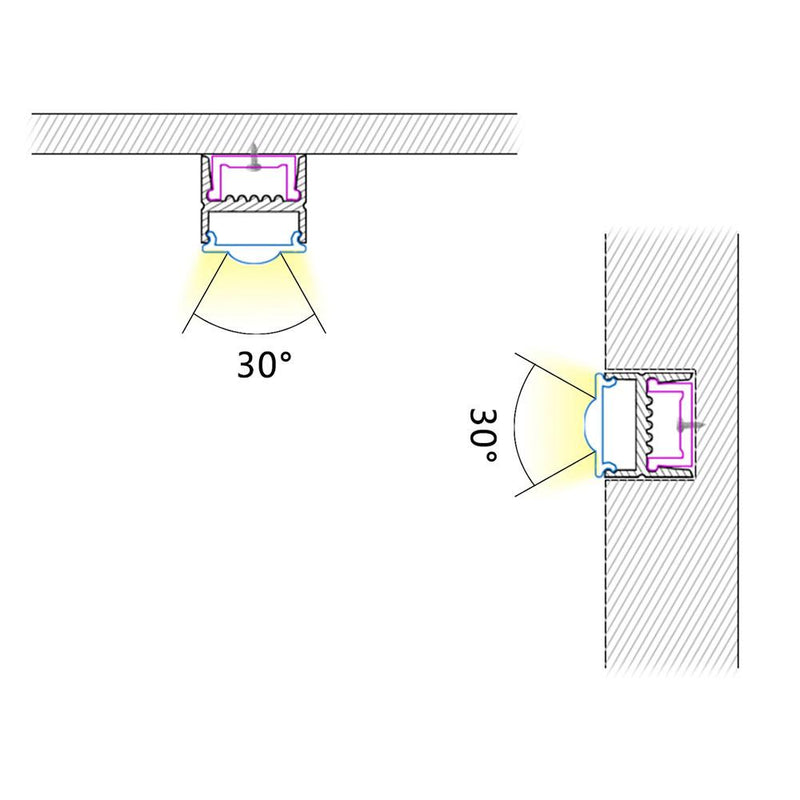

LED 30 Degree Wall Grazer Aluminum Channel includes our aircraft grade aluminum channel and compatible curve-shaped 30 degree beam angle clear lens. Creating a rigid, modern, and sleek style LED strip light installation has never been easier.

Key Features

  • It comes in 2-meter (78.74 in) sections and can be custom cut to any length.
  • 19.6 mm wide by 17.7 mm height.
  • Perfect for mounting LED Strip Light up to 16 mm in width.
  • Rigid and dustproof housing can be recessed or surface mounted.

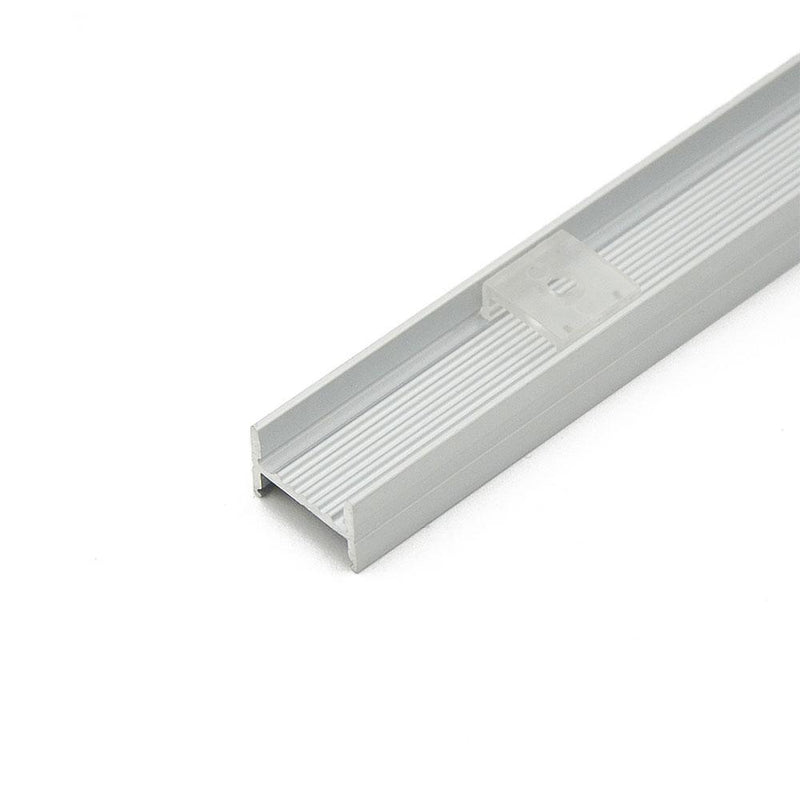

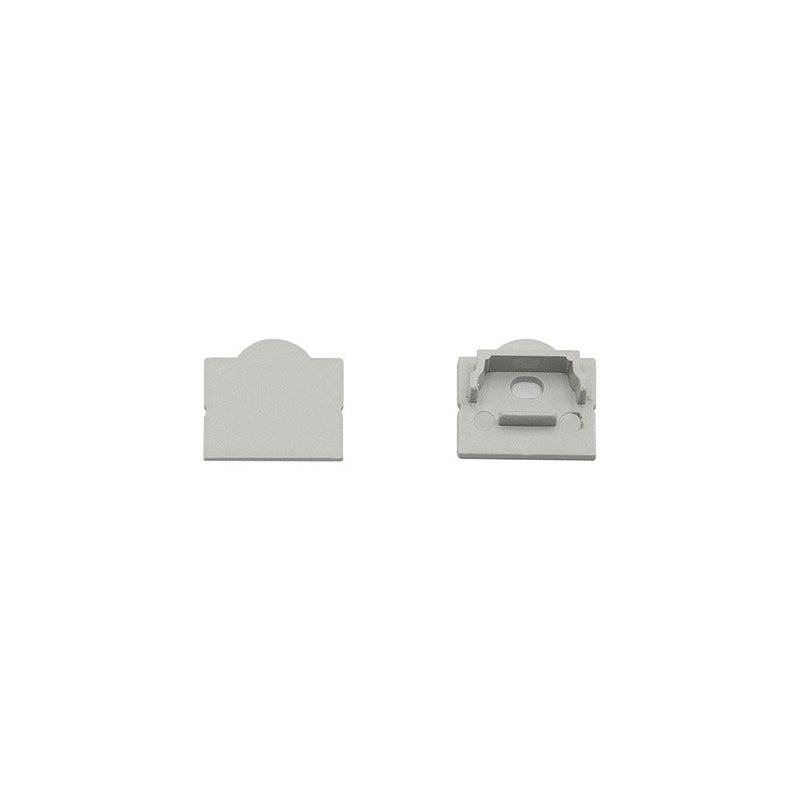

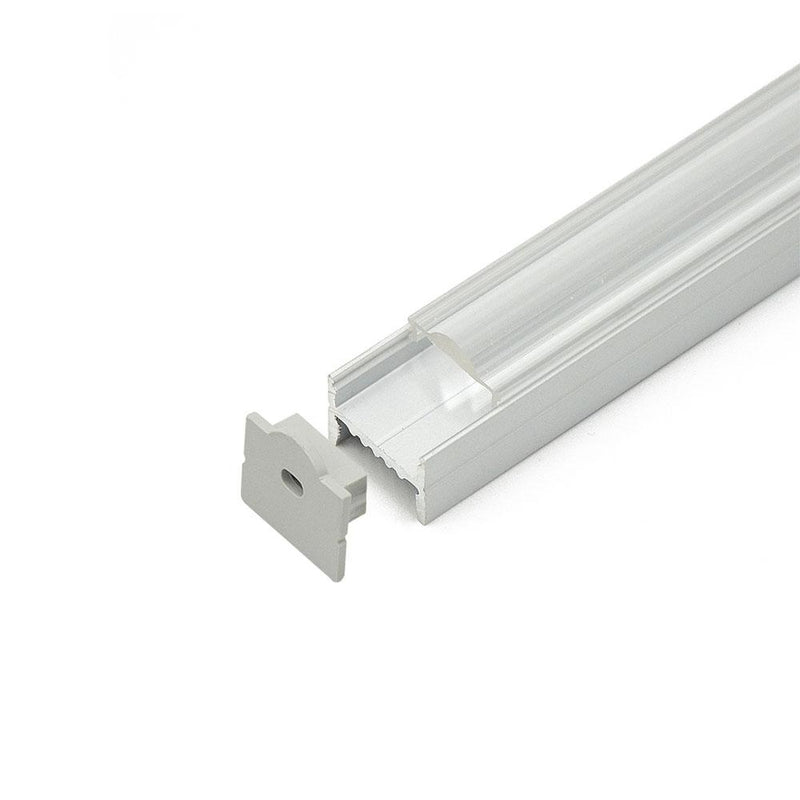

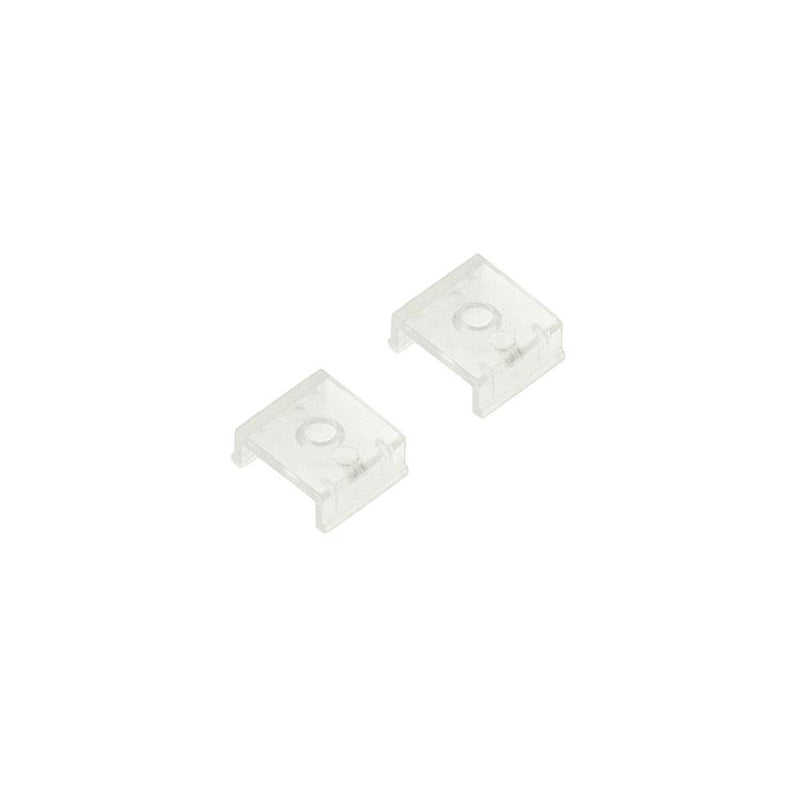

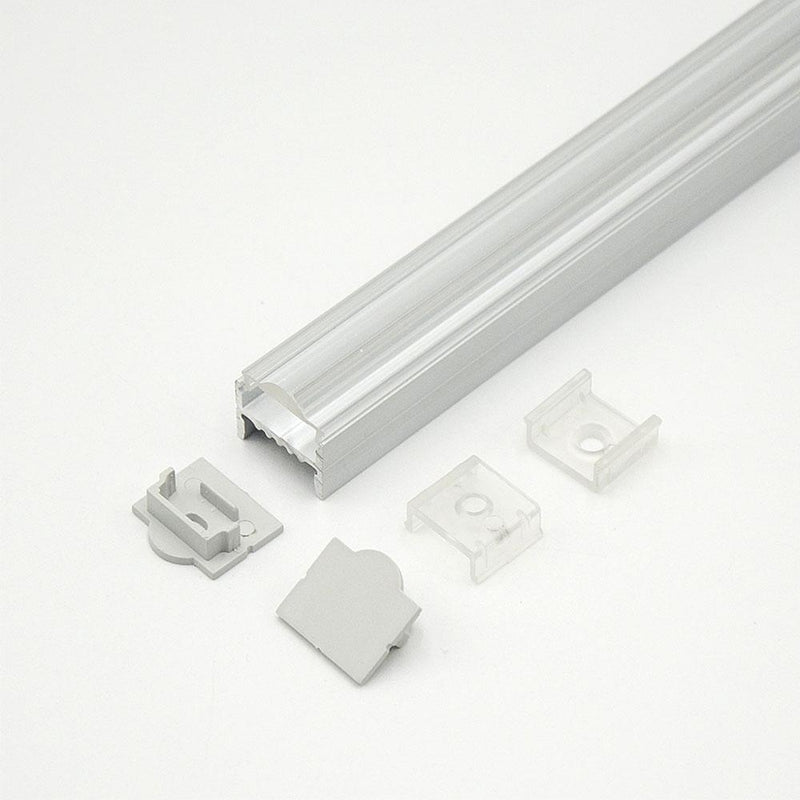

  • Includes aluminum channel, clear diffuser, 2 mounting clips, and 2 end caps.

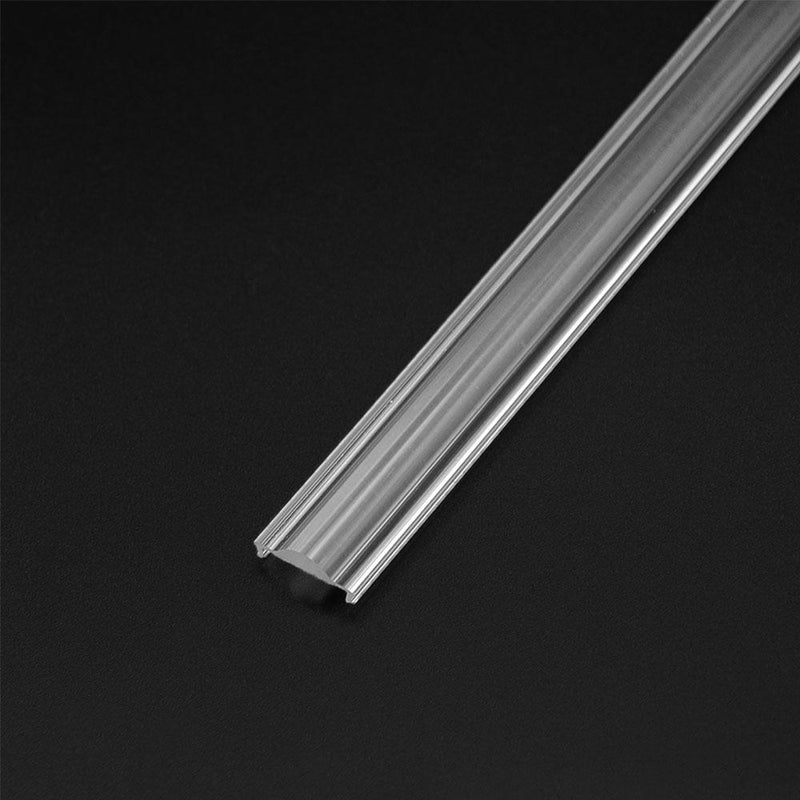

  • The channel lens protects LED strip light from the environment and creates diffused lighting effects. Easy to install, simply clip the diffuser lens into the aluminum channel.
  • LED Aluminum Mounting Channels does not qualify for Free Standard Shipping offer. Additional shipping charges will be billed separately.
  • Aluminum channels are not returnable due to the packaging and shipping costs.


  • For use with LED Strip lights up to 16 mm in width.


View Spec Sheet

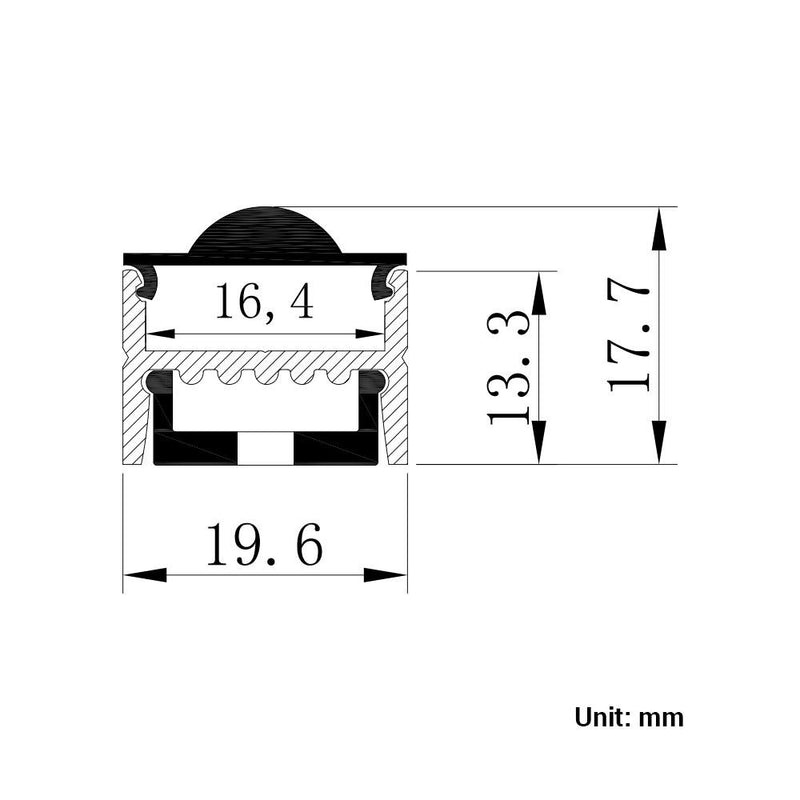

Channel Height 0.69 in / 17.7 mm thick
Inside Width 0.65 in / 16.4 mm wide
Outside Width 0.77 in / 19.6 mm wide
Length 78.74 in (2 m) Long
LED Strip Width 16 mm
Lens Finish Clear
Environment Indoor Use - Dry Location
Channel Finish Aluminum
Manufacturer Elumalight
