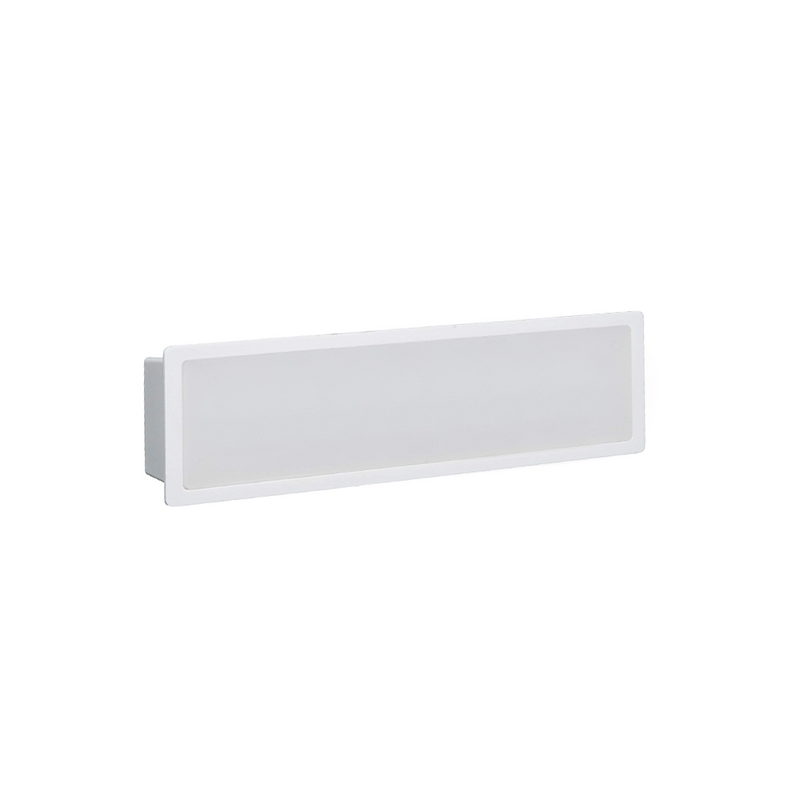

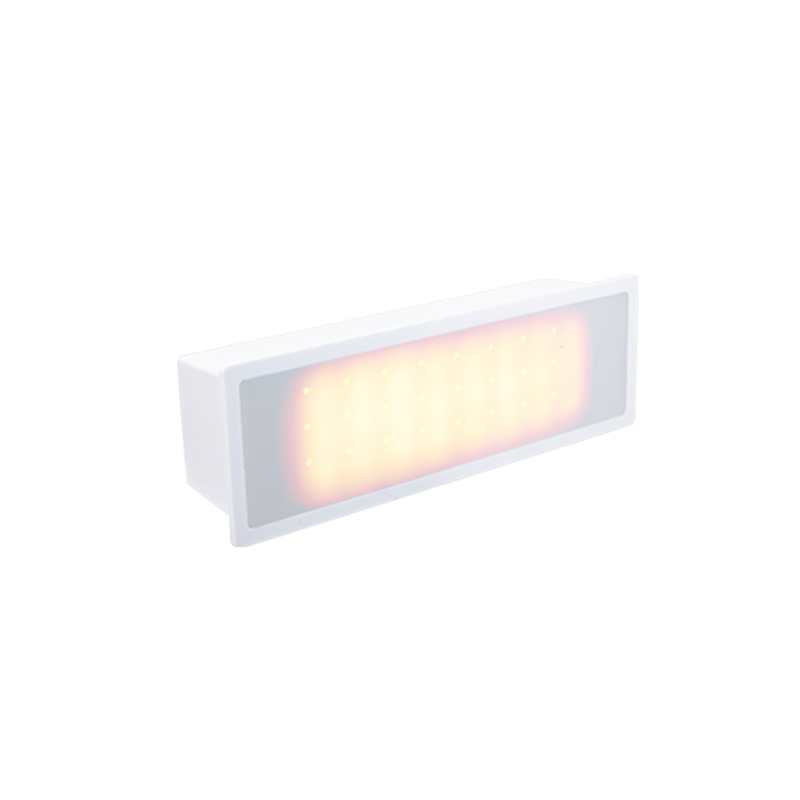

LED Brick Light Modules


The new LED Brick Light modules are used with our LED Brick Light Faceplates for indoor or outdoor applications and to efficiently illuminate a path, staircases, or can be used as a safety night light.

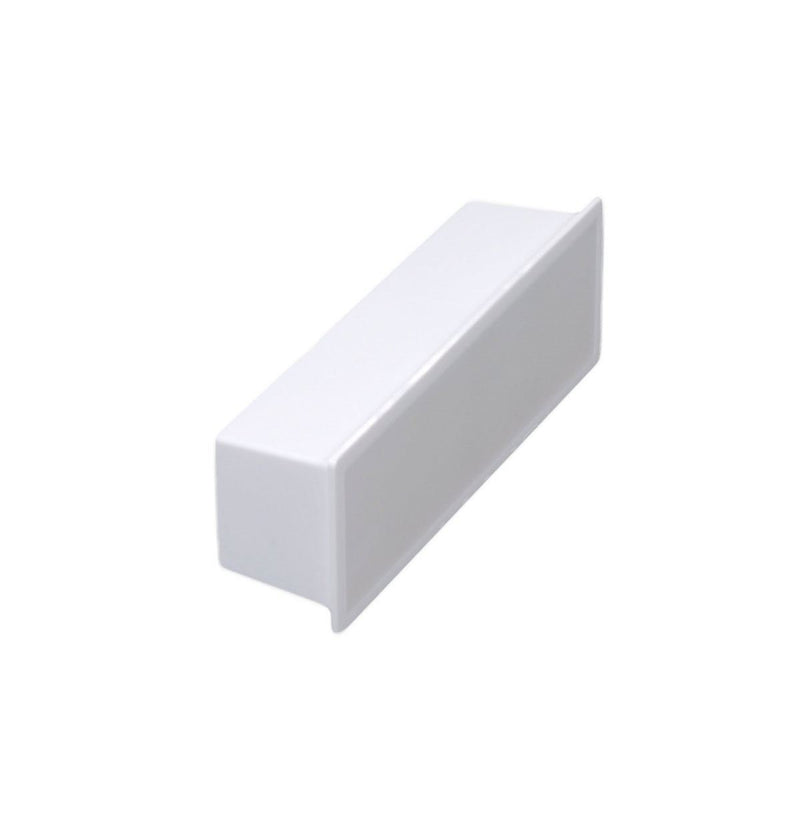

Compact size for simple wiring and easy installation into recessed rough-in housing. The rough-in housing allows wiring from center and side entry with feed-through power.

The architectural louvered and shroud die-cast zinc-magnesium trim plate creates a beautiful non-glare source of LED light to guide the way. They are available in white, stainless, or bronze finishes and sold separately.

Each LED Brick Light Module requires housing and faceplate. It is available in line voltage 120V AC dimmable, 120-277V AC non-dimmable, or 12V DC dimmable.

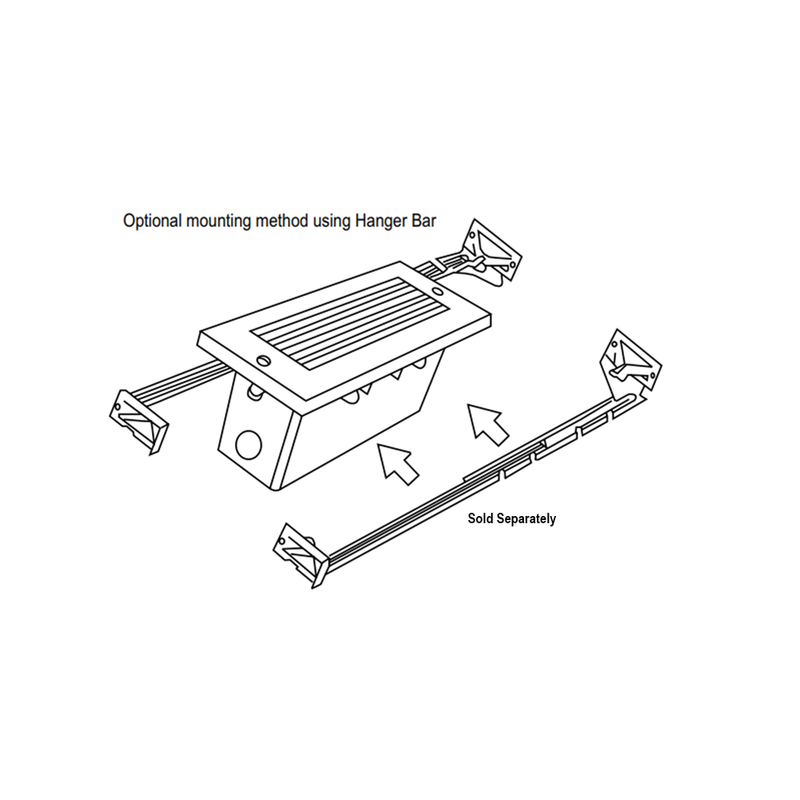

* Required: Requires LED Brick Light Faceplates, optional Housing, and Mounting Bracket. Sold Separately

Key Features

  • Low profile design, flush to wall aesthetics
  • Energy-efficient LED chipsets
  • Rated IP65 for indoor or Outdoor applications
  • The LED Brick Light Module is only compatible with Elumalight Faceplates
  • C/US UL Listed


  • Walls
  • Staircase
  • Stairways
  • Pathways


View Spec Sheet

Brightness 140 Lumens
Power (Watts) 3 watts
Input Voltage 120V, 120-277V AC, or 12V DC
LED CCT 3000K Warm White
CRI 70+
Dimmable Yes (except non-dimmable modules)
Environment IP65 - Wet Locations
Beam Angles 110°
7.06 in L x 2.19 in W x 2.38 in D

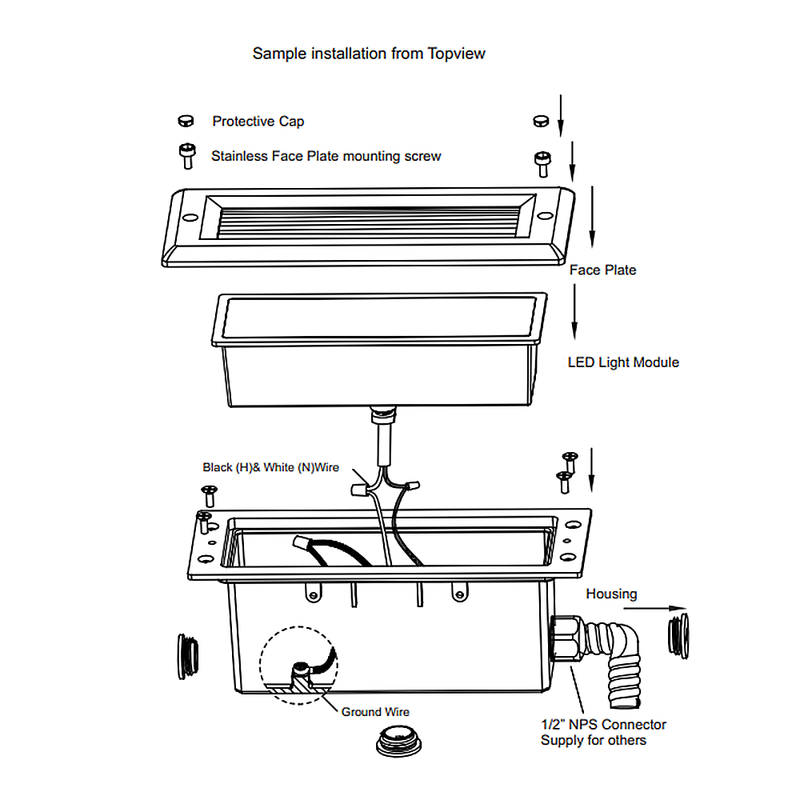

Mounting LED Brick Light can be recess mounted to the rough-in housing and bracket.
Finish White
Manufacturer Elumalight
Rating UL Listed,
Avg. Lifetime ± 30,000 - 50,000 hours
Warranty 5 Year Limited
