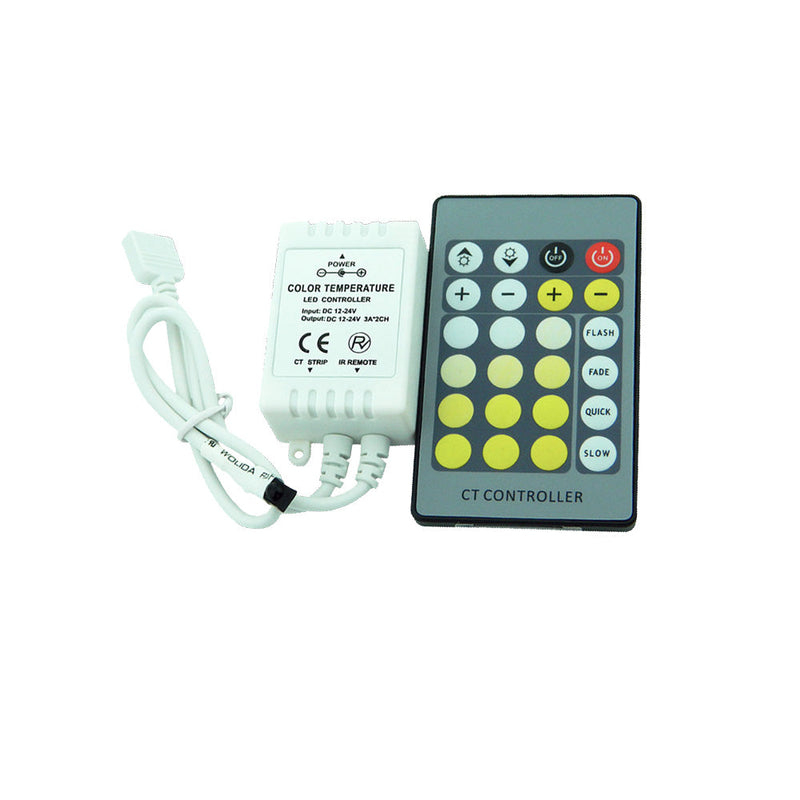

LED CCT Mini Controller with Remote

$14.06
SKU EL-12-CCT-ECO

The LED CCT Mini Controller is easy to install and use. It is perfectly designed for Step 1 Dezigns CCT Tunable White LED tape and flex sheets to mix warm and cool white LED lighting color temperatures.

Need help with your LED lighting applications? Our lighting experts are here to help! Contact us today for assistance with the lighting plans or installation instructions.

Requires a non-dimmable 12V DC or 24V DC Plug N Play LED Driver.

Key Features

  • Easy to connect Plug N Play controller
  • Small form factor to fit in tight spaces

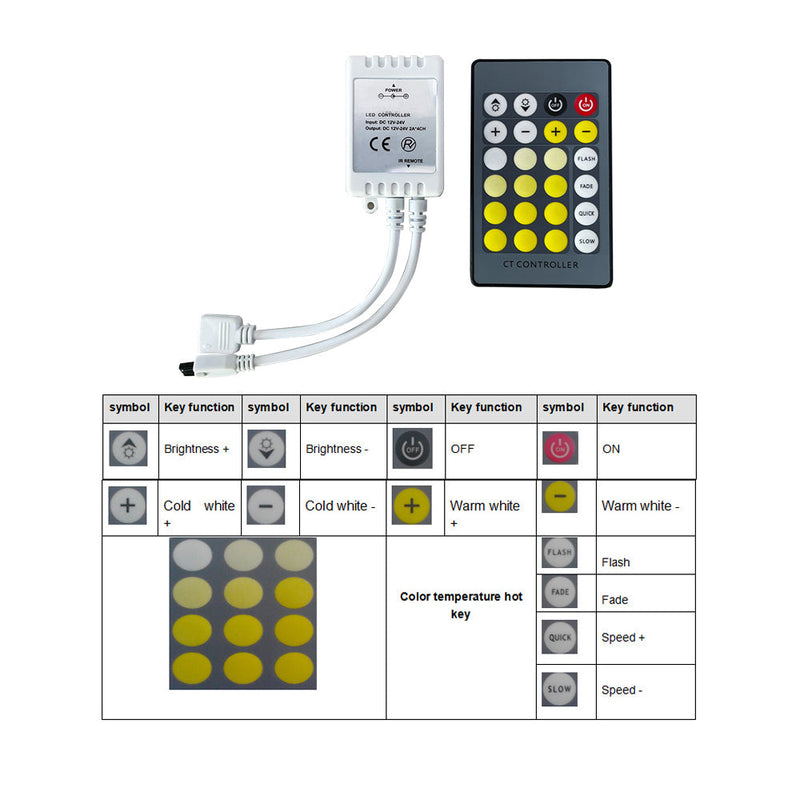

  • 24 keys Remote Control Included, Easy to use Function Modes
  • Compatible with LED CCT Tape Lights or Flex Sheet
  • Built-In Power off memory function.

Applications

  • Trade Show & Exhibit Lighting
  • Retail Display Lighting
  • Architectural Lighting
  • Hotels, Casinos, and Clubs
  • Custom Lighting Shows
  • Stage Lighting

Specifications

  • Input Voltage: 12V-24V DC
  • Connection Mode: Common Anode
  • Output Current: <6A
  • Static Power Consumption: 1 watt
  • Controller Size: 2.4 x 1.4 x 0.9 in (61 x 35 x 22 mm)
  • Remote Size: 3.3 x 2 x 0.27 in (85 x 52 x 7 mm)
  • Environment: Dry Location
  • IP Rating: IP20
  • Previous Mode on Power Cycle: Yes
  • Required: 12V DC or 24V DC Plug & Play LED Power Supply
  • Labels and Listings: CE, RoHS
