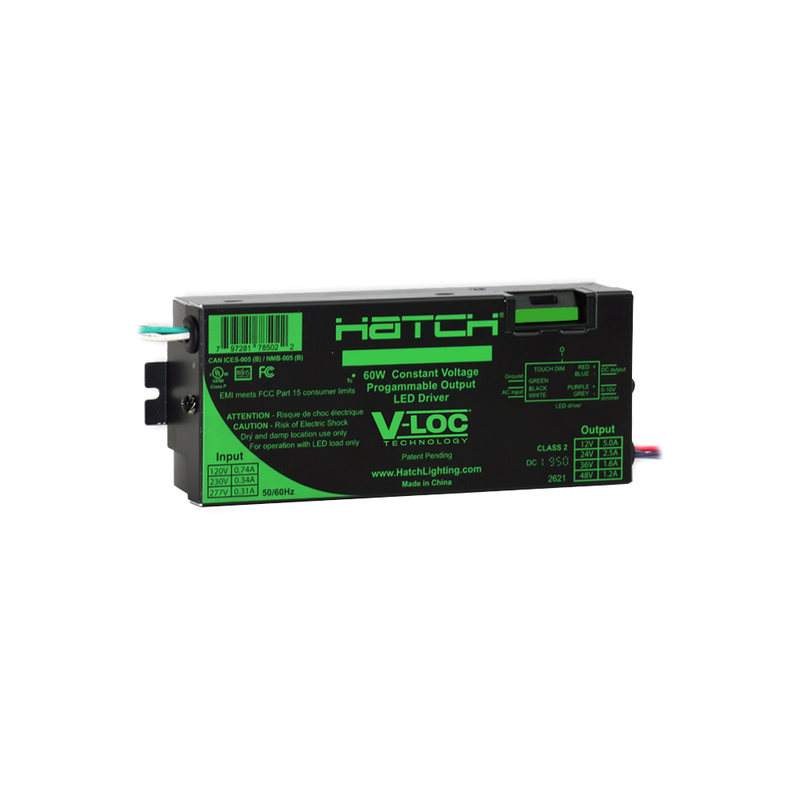

LED Constant Voltage Key Programmable Drivers

SKU EL-XWV-60-12-UNV-I
$55.45 - $65.34
$55.45
$55.45 - $65.34
$55.45

The programmable constant voltage LED driver would provide smooth, flicker-free dimming and excellent color quality reproduction with a wide variety of commercially available constant voltage LED loads. V-LOC was designed from the ground up to become the industry benchmark for delivering precise dimming control, excellent color reproduction, and unrivaled versatility.

Our unique proprietary dimming technology ensures high-quality color reproduction throughout the entire dimming range.

0-10V dimming is standard on all V-LOC models, providing consistent, flicker-free dimming down to 1% and dim-to-off capability.

V-LOC key technology enables output voltage programming from 12V to 48V with one driver.

Need help with your LED lighting applications? Our lighting experts are here to help! Contact us today for assistance with the lighting plan or installation instructions.

Key Features

  • Smooth, flicker-free dimming down to 1%
  • 0-10V dimming on all models†
  • Consistent color quality reproduction throughout the full dimming range
  • Dim-To-Off Capability
  • Universal Input: 90V AC-305V AC
  • Key Programmable Output via V-LOC Keys: 12V*, 24V, 36V & 48V
  • 60W or 96W Models*
  • No minimum load required
  • UL Class 2 outputs
  • UL8750 Supplement SF Compliant: Isolated 0-10V
  • UL/cUL Class P Listed
  • Field installable
  • * 96W does not support 12V DC

Applications

  • For use with compatible Dimmers and Constant Voltage 12V, 24V, 36V, or 48V DC LED lights.

Specifications

 View Spec Sheet
  • LED Driver Type: Key Programmable Constant Voltage, Class 2
  • Input Voltage: 120-277 (+/-10%)
  • Input Frequency:  50/60Hz
  • Programming Method: V-LOC Keys
  • Dimming Control: 0-10V
  • Dimming Range: Dims to Off
  • Dimensions: 6.04 in L x 2.45 in W x 1.31 in H
  • Power Factor @ Full Load: >0.95%
  • Efficiency @ Full Load: Up to 90%
  • Start-Up Time: <500ms**
  • Line Regulation: <3%
  • Load Regulation (Max Load): <3%
  • Output Overload Protection: Yes, Latch Mode***
  • Output Short-Circuit Protection: Yes, Latch Mode***
  • Over Temperature Protection: Yes, Latch Mode***
  • EMI Compliance: FCC Part 15 Class B
  • Minimum Operating Temp.: -30°C
  • Maximum Case Temp.: 77.5°C
  • Maximum Storage Temp.: 70°C
  • Maximum Relative Humidity: 85% non-condensing
  • Transient Protection: NEMA SSL1-2010 Non-Roadway 2.5kV
  • UL Environment Rating: Dry & Damp
  • Sound Rating: Class A
  • Manufacturer: Hatch
  • Warranty: 5-year limited warranty
