LED Deep Top Flange Aluminum Channel

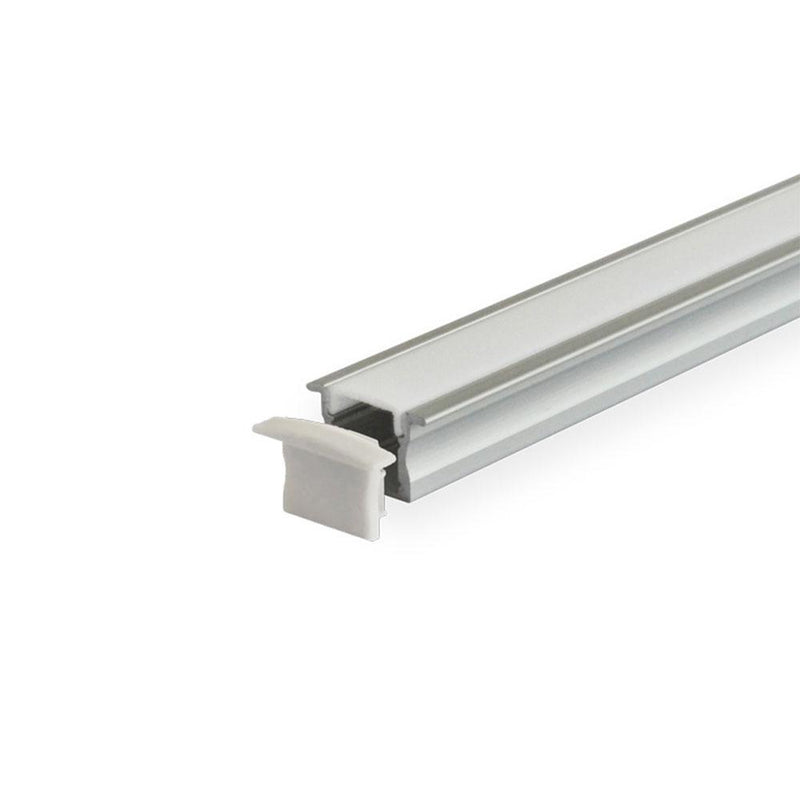

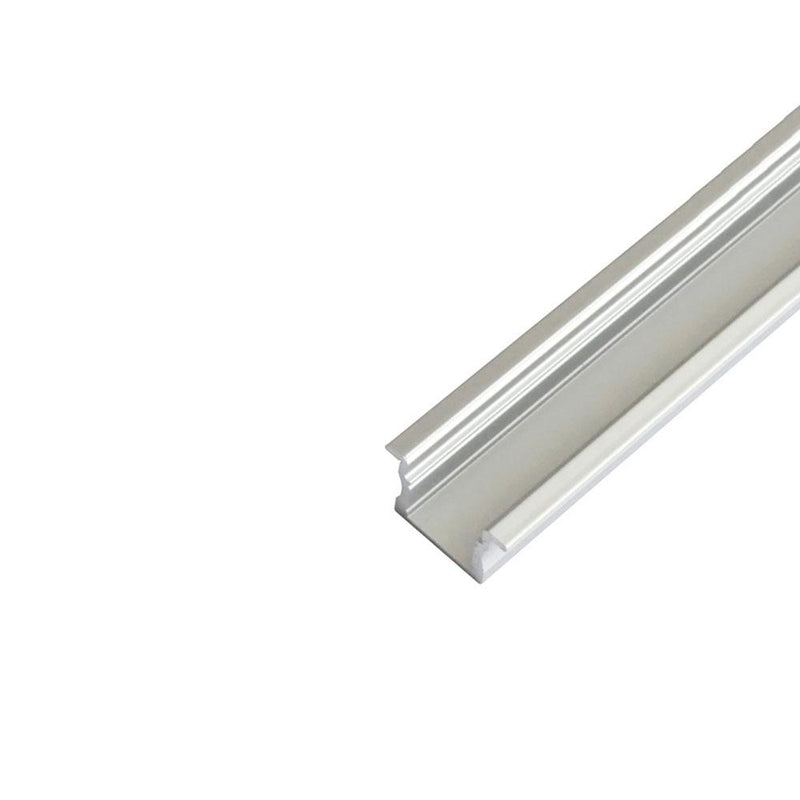

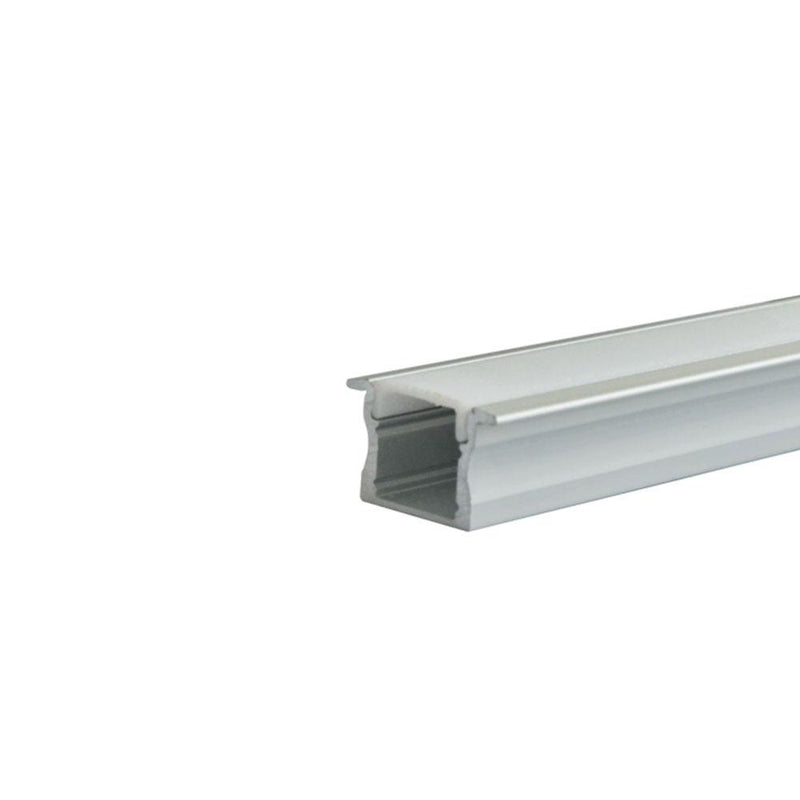

LED Deep Top Flange Aluminum Channel includes our aircraft grade aluminum channel and compatible frosted or opal white finish lens. Creating a modern and sleek style LED strip light installation has never been easier.

Key Features

  • It comes in 2-meter sections and can be custom cut to any length.
  • 23.1 mm wide by 15.2 mm height.
  • Perfect for mounting LED Strip Light up to 12 mm in width.

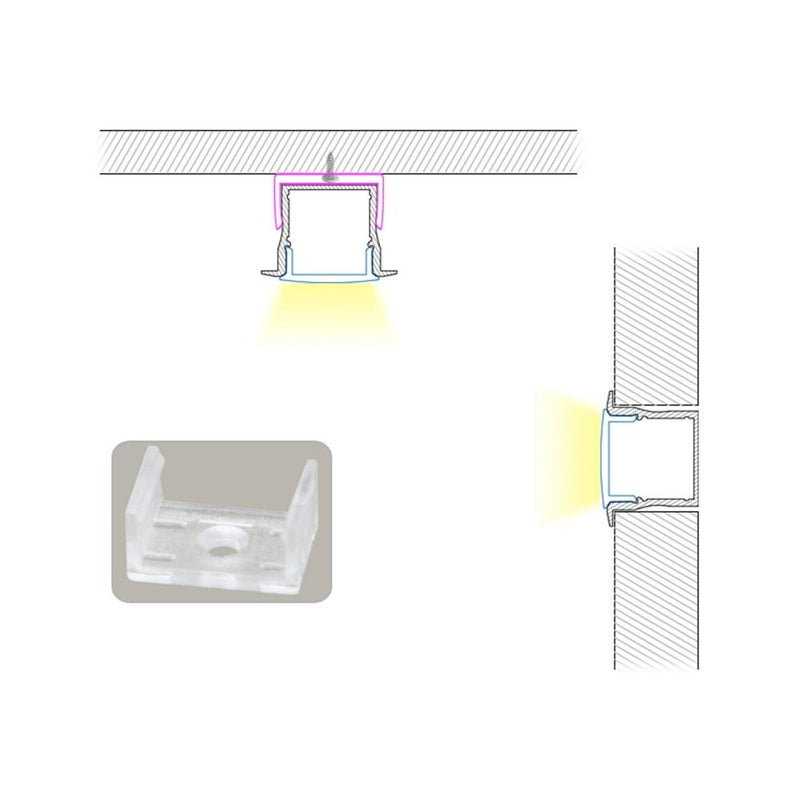

  • Rigid and dustproof housing can be surface or flush recess mounted.

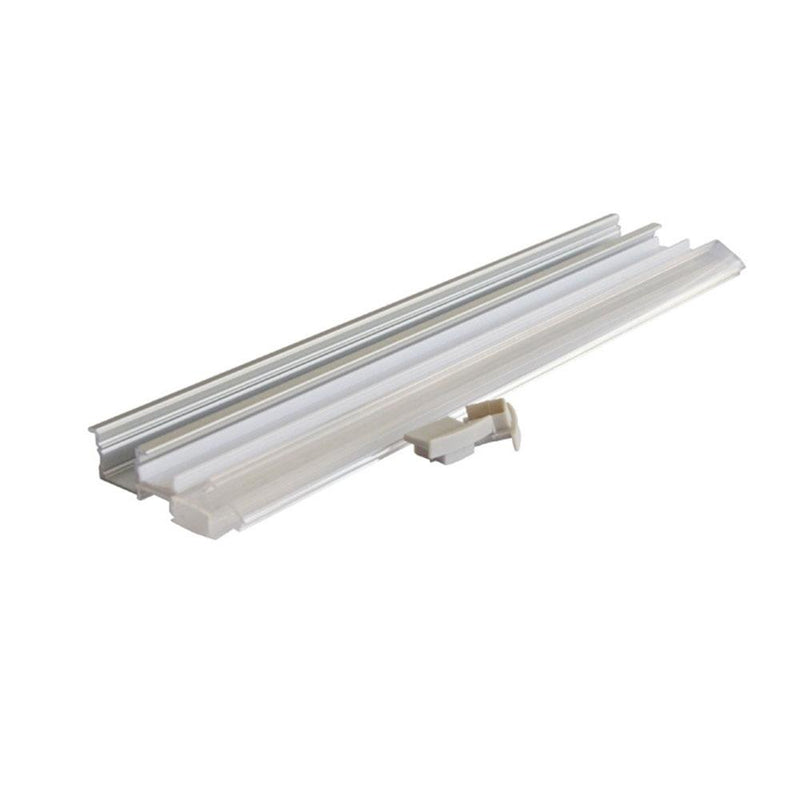

  • Includes aluminum channel, diffuser, and 2 end caps.

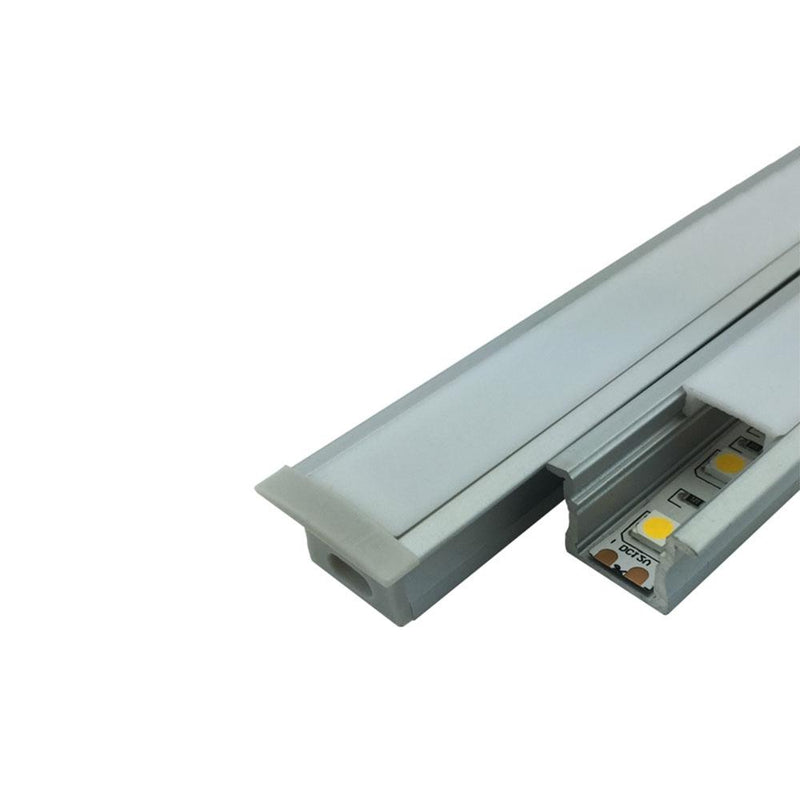

  • The Channel lens protects LED strip light from the environment and creates diffused lighting effects. Easy to install, simply clip the diffuser lens into the aluminum channel.
  • LED Aluminum Mounting Channels does not qualify for Free Standard Shipping offer. Additional shipping charges will be billed separately.
  • Aluminum channels are not returnable due to the packaging and shipping costs.


  • For use with LED Strip lights up to 12 mm in width.


View Spec Sheet

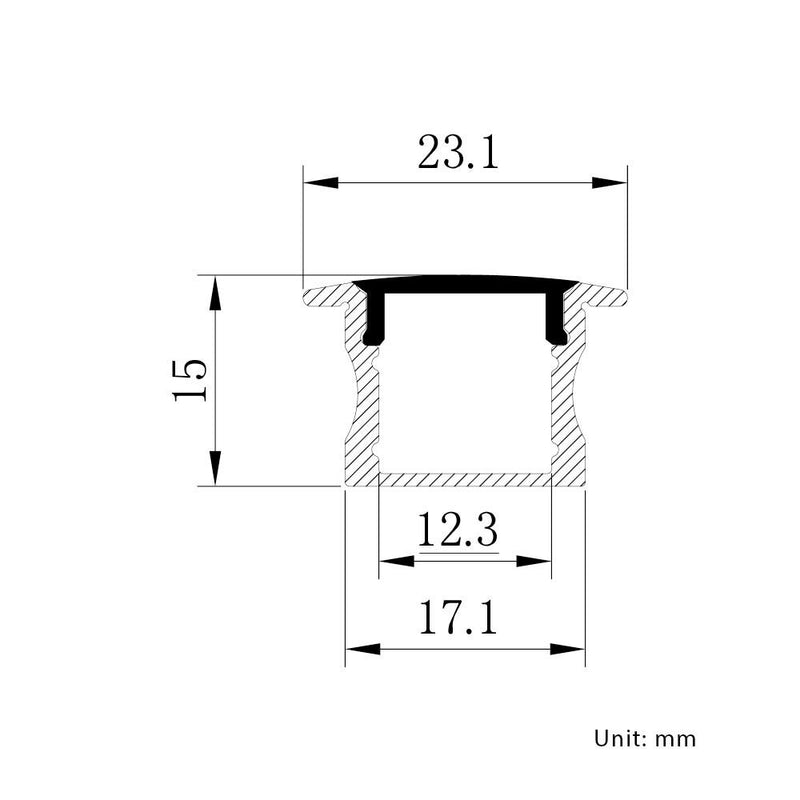

Channel Height 0.6 in / 15.2 mm thick
Inside Width 0.48 in / 12.3 mm wide
Outside Width 0.91 in / 23.1 mm wide
Length 78 in / 2 meters long
Recessed Depth
0.51 in / 13 mm deep
LED Strip Width 12 mm
Lens Finish Frosted or Opal White
Environment Indoor Use - Dry Location
Channel Finish Aluminum
Manufacturer Elumalight
