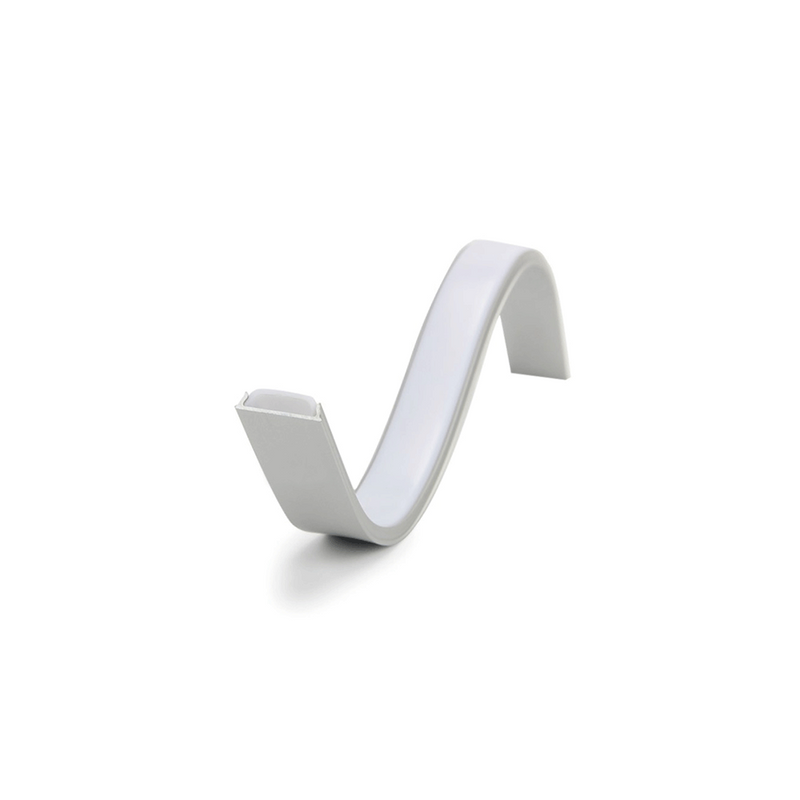

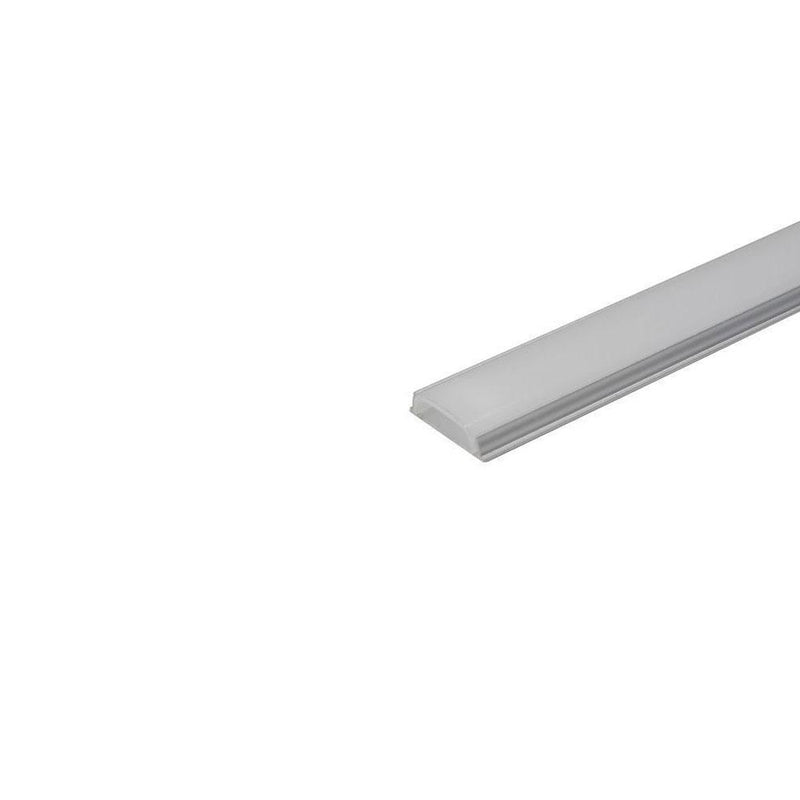

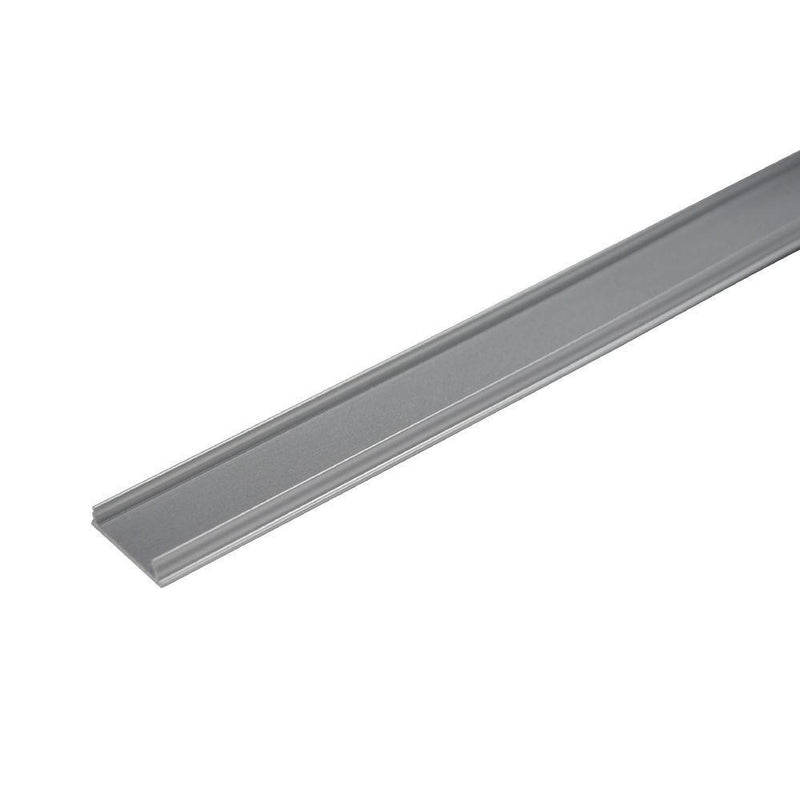

LED Flexible Aluminum Channel


LED Flexible Aluminum Channel includes our aircraft grade aluminum channel and compatible frosted lens. Creating a modern and sleek style LED strip light installation has never been easier.

Key Features

  • It comes in 2-meter sections and can be custom cut to any length.
  • 19 mm wide by 6.5 mm height.
  • Perfect for mounting LED Strip Light up to 12 mm in width.

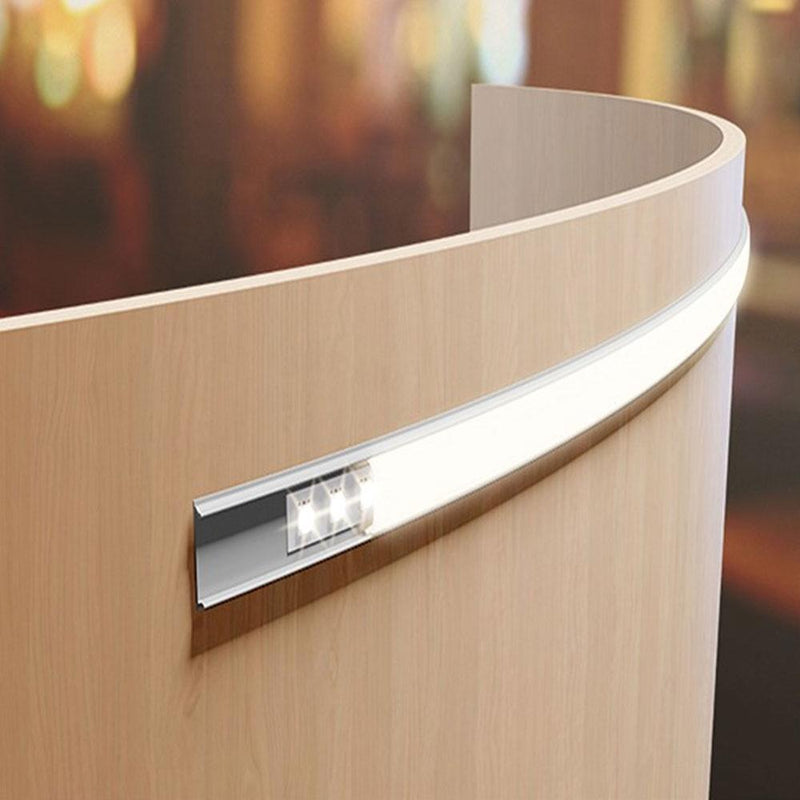

  • Rigid, Flexible, and dustproof housing can be mounted onto any flat surfaces or bend for curved lighting applications.

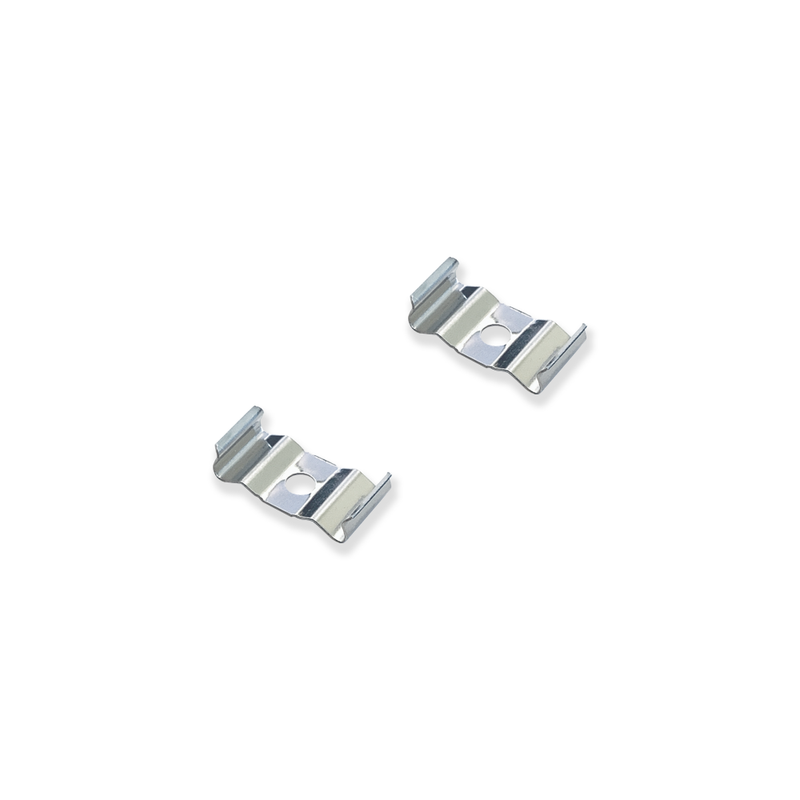

  • Includes aluminum channel, diffuser, 2 mounting clips, and 2 end caps.

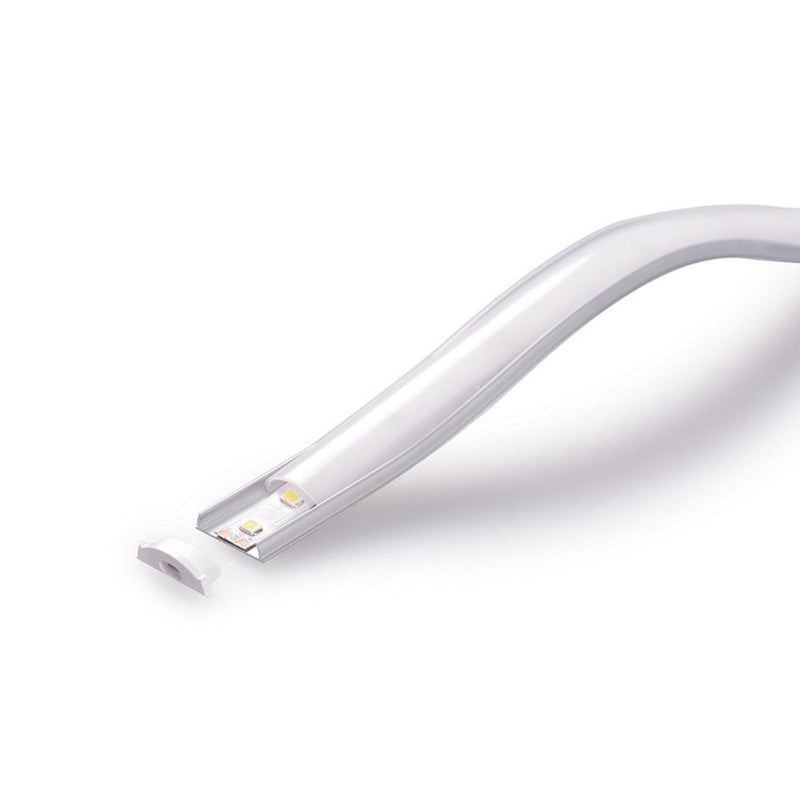

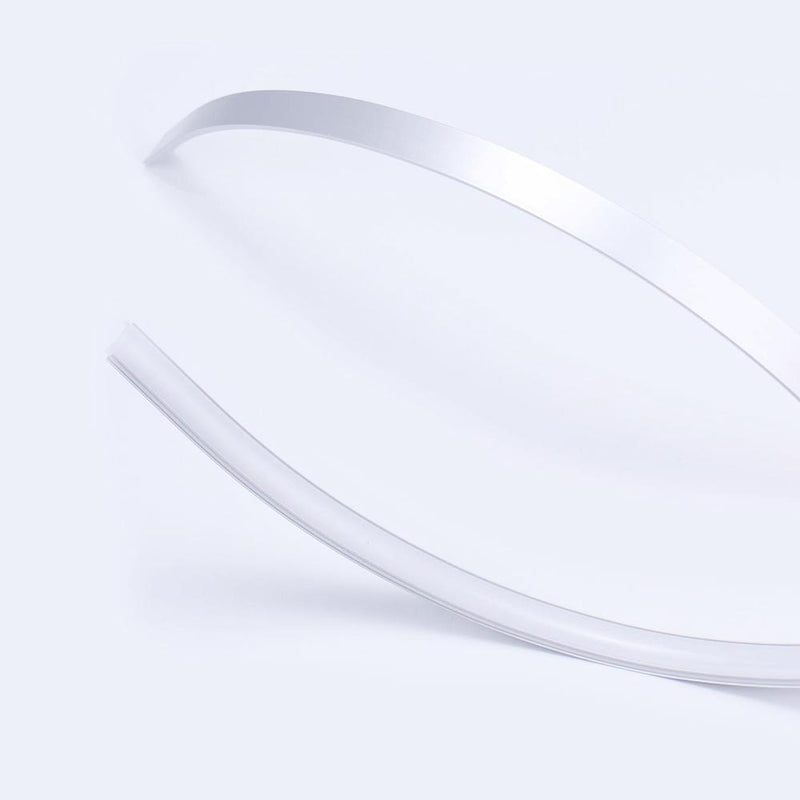

  • The Channel lens protects LED strip light from the environment and creates diffused lighting effects. Easy to install, simply clip the diffuser lens into the aluminum channel.
  • LED Aluminum Mounting Channels does not qualify for Free Standard Shipping offer. Additional shipping charges will be billed separately.
  • Aluminum channels are not returnable due to the packaging and shipping costs.


  • For use with LED Strip lights up to 12 mm in width.


View Spec Sheet

Channel Height 0.26 in / 6.5 mm thick
Inside Width 0.58 in / 14.8 mm wide
Outside Width 0.75 in / 19 mm wide
Length 78.74 in / 2 meters long
LED Strip Width 12 mm
Lens Finish Frosted
Environment Indoor Use - Dry Location
Channel Finish Aluminum
Manufacturer Elumalight
