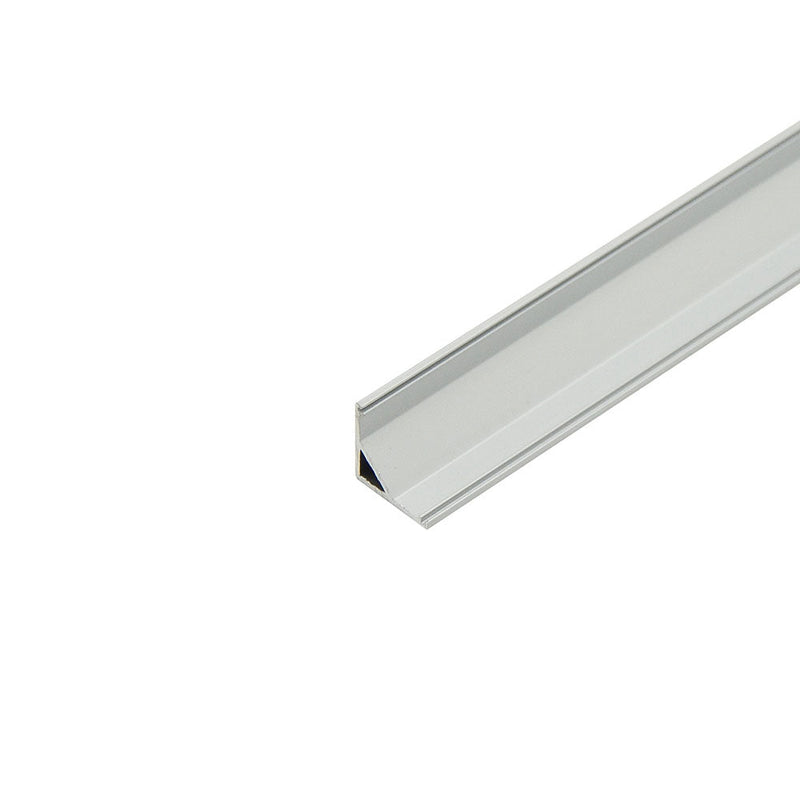

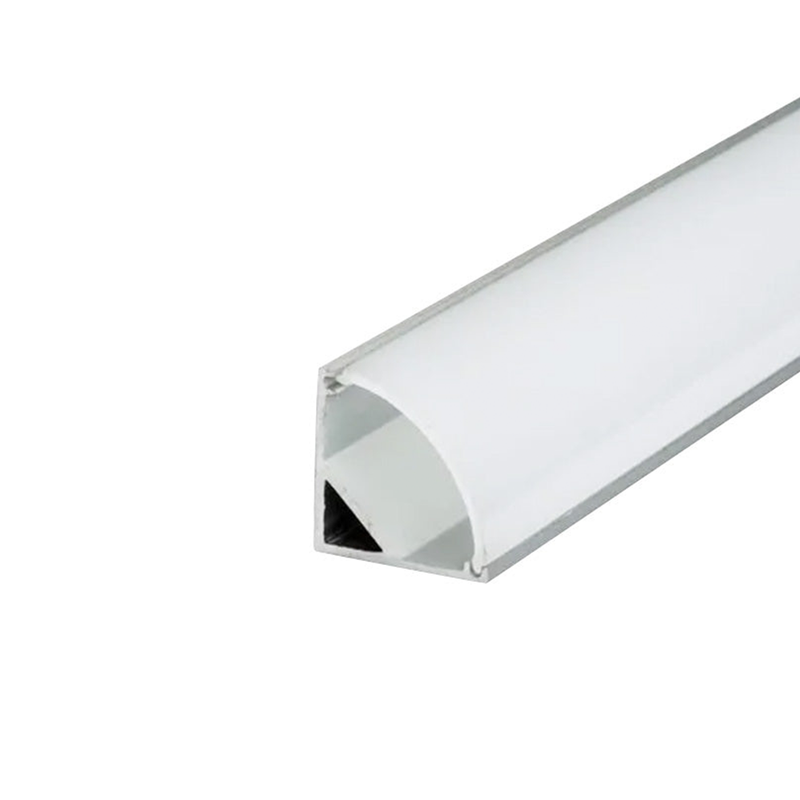

LED Full Angle Aluminum Channel 30 x 30

SKU EL-CH-3030

LED Full Angle Aluminum Channel 30 x 30 includes our v-shaped aircraft-grade aluminum channel and compatible frosted or opal white lens. Creating a rigid, modern, and sleek style LED strip light installation has never been easier.

Key Features

  • It comes in 2-meter sections and can be custom-cut to any length.
  • 30 mm wide by 30 mm height.
  • Perfect for mounting LED Strip Lights up to 19.7 mm in width.
  • V-shaped for angled or corner lighting applications.

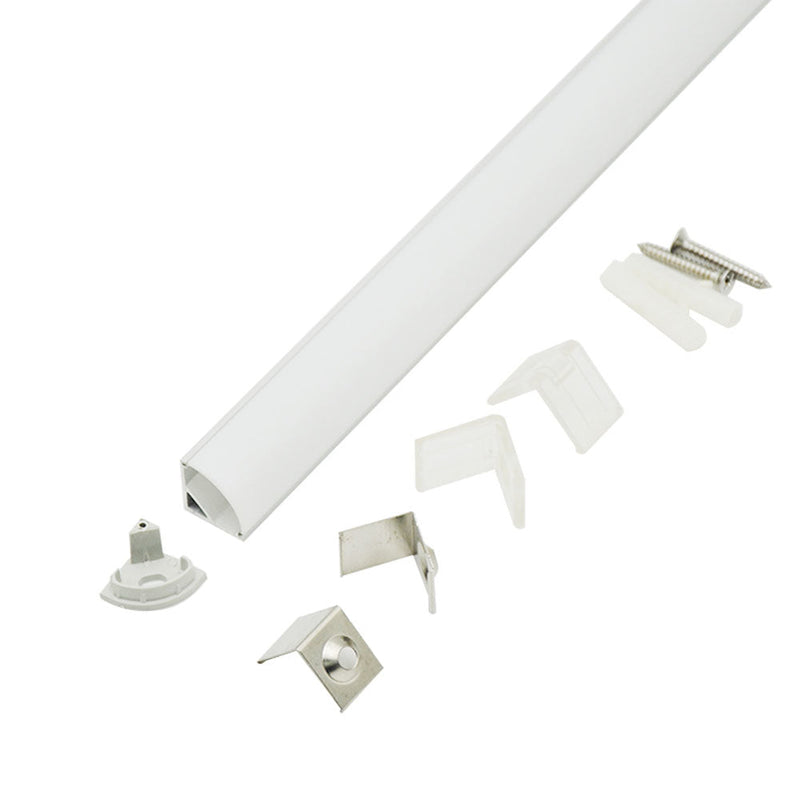

  • Includes aluminum channel, opal diffuser, 2 mounting clips, and 2 end caps.
  • The Channel lens protects LED strip light from the environment and creates diffused lighting effects. Easy to install, simply clip the diffuser lens into the aluminum channel.
  • The rigid and dustproof channel can be mounted onto any flat surface.
  • LED Aluminum Mounting Channels do not qualify for the Free Standard Shipping offer. Additional shipping charges will be billed separately.
  • Aluminum channels are not returnable due to the packaging and shipping costs.


  • For use with LED Strip lights up to 19.7 mm in width.

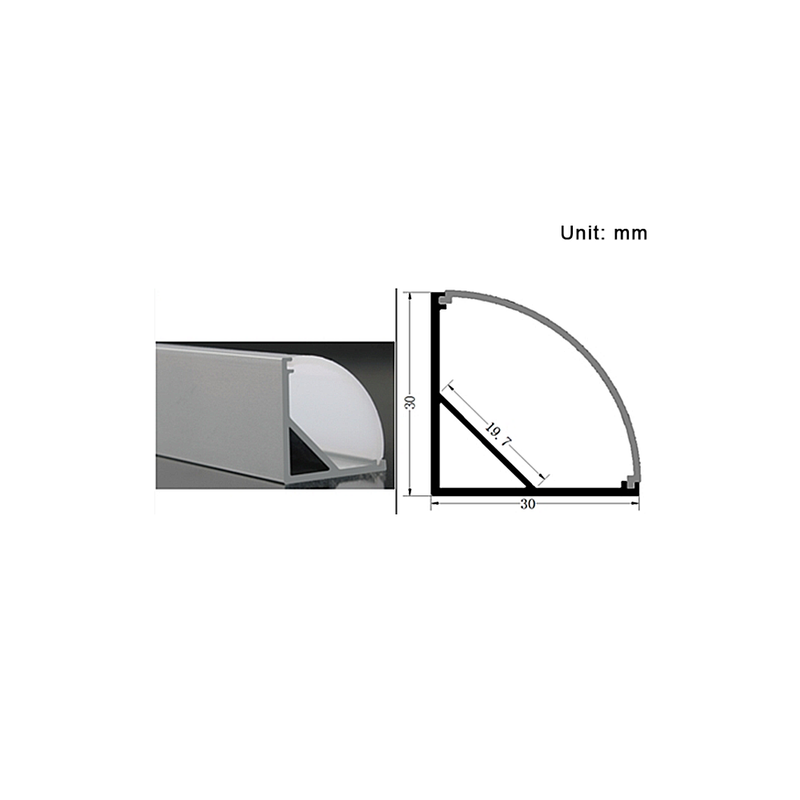

Channel Height 1.18 in / 30 mm thick
Inside Width 0.78 in / 19.7 mm wide
Outside Width 1.18 in / 30 mm wide
Length 78 in / 2 meters long
LED Strip Width 19.7 mm
Lens Finish Opal White
Environment Indoor Use - Dry Location
Channel Finish Aluminum
Manufacturer Elumalight
