LED RGBW Rotary Knob Controller with Remote

$81.00
SKU EL-R-RGBW-12-24

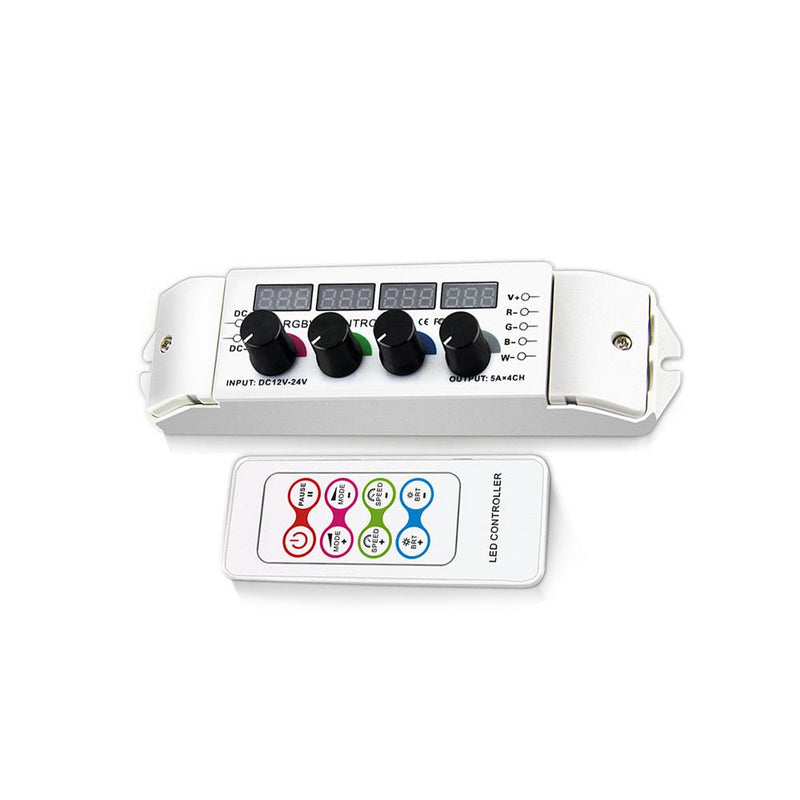

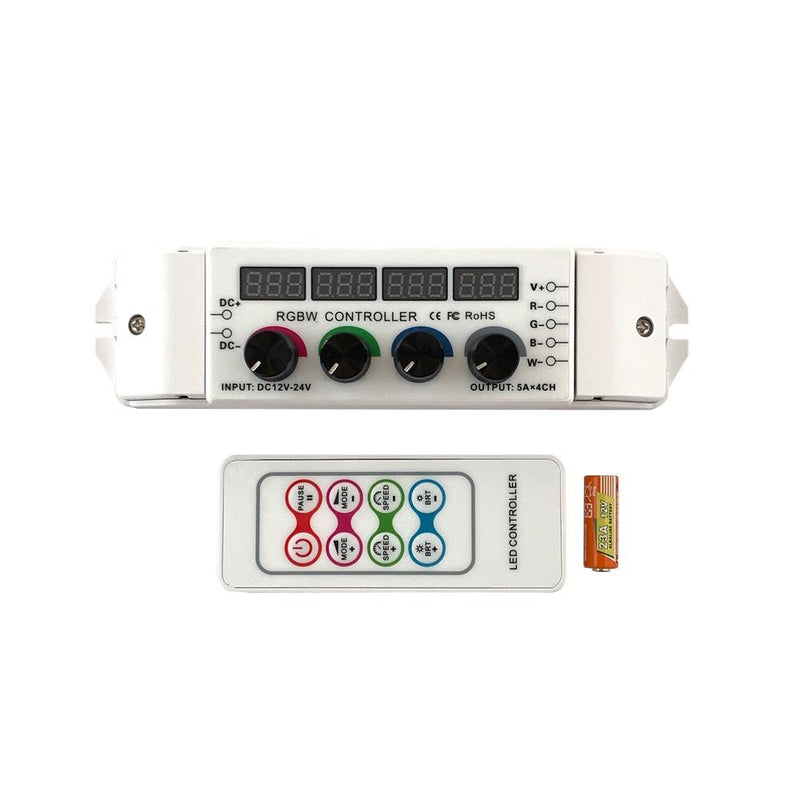

The RGBW LED Rotary Knob Controller with Remote is easy to install and use. It is designed perfectly for Elumalight RGB or RGBW LED tape lights, led modules, etc.

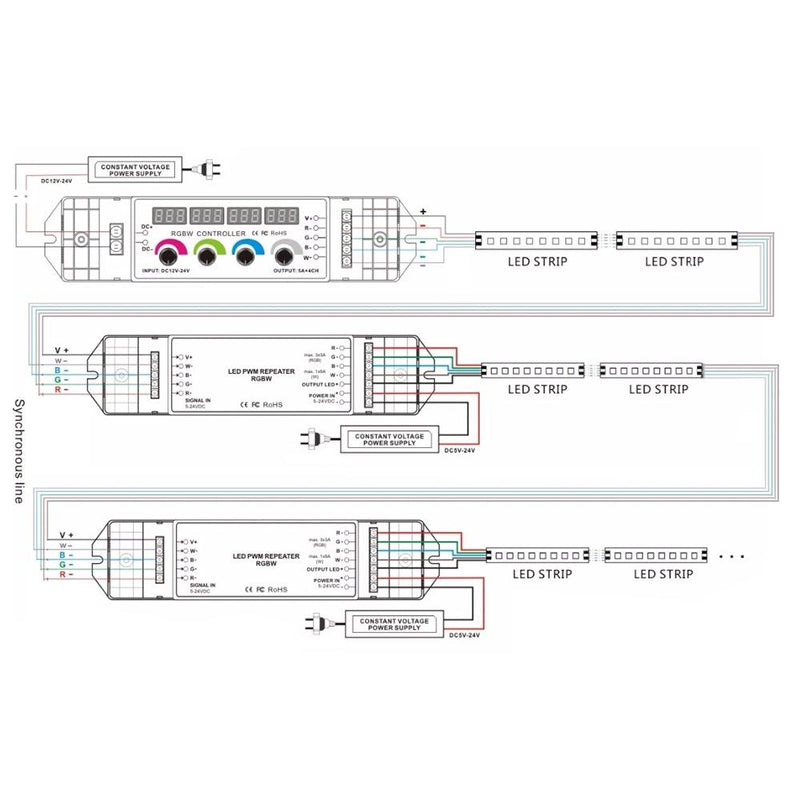

This 4 rotary knobs RGBW LED controller can be used to control up to 4 channels of RGBW or RGB LED tape lights, LED modules, or 12V DC - 24V DC constant voltage lights. The digital displays on top of each rotary knob let you see the 0-255 dimming output levels of RGBW output levels.  With all the features available on this controller you can create up to 4 trillion various color hues and fine-tune to the LED colors desired.

It has 37 built-in color-changing effects with brightness and speed controls by using the included wireless RF remote controller. Each of the 4 color RGBW can control up to 5 amps of LED lights, or 120 watts using 24V DC, 60 watts using 12V DC. Multiply it over the 4 channels and you can control up to 480 watts max at 24V DC or 240 watts max at 12V DC.

Need help with your RGBW LED lighting applications? Our lighting experts are here to help! Contact us today for assistance with lighting plan or installation instructions.

* Required: Requires a non-dimmable 12V DC or 24V DC LED Driver.

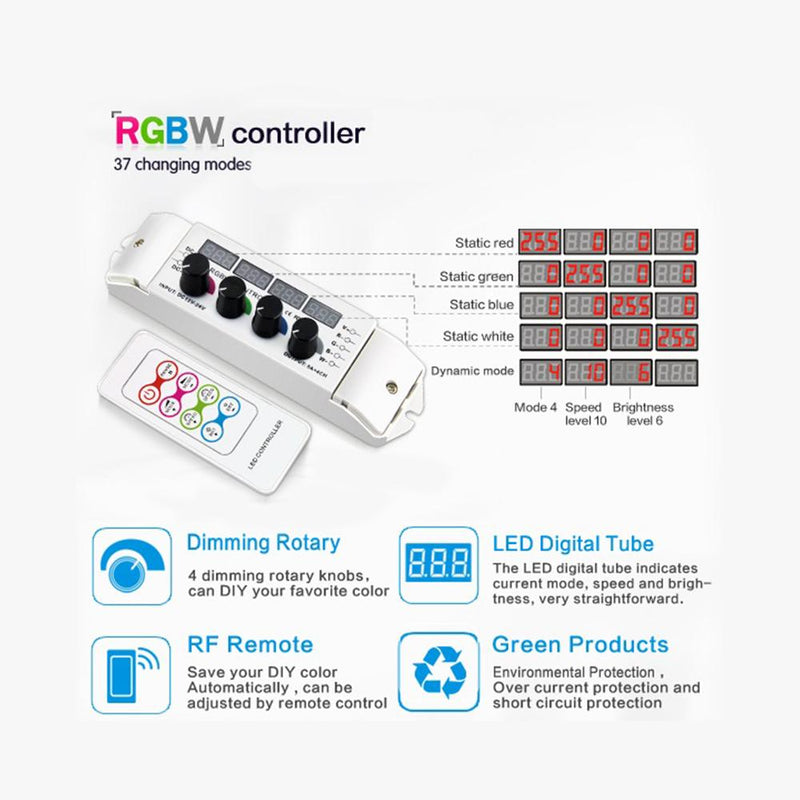

Key Features

  • 12V and 24V DC Operation
  • Built-in digital display with rotary knobs
  • 16 Speed and Brightness Levels
  • 37 changing modes such as skipping, smooth, etc.
  • 0-255 dimming values of your Red, Green, Blue, and White output levels.
  • Save your DIY color Automatically
  • It can be adjusted by supplied remote control.
  • Over-current protection and short circuit protection

Applications

  • Trade Show & Exhibit Lighting
  • Retail Display Lighting
  • Architectural Lighting
  • Hotels, Casinos, and Clubs
  • Custom Lighting Shows
  • Stage Lighting

Specifications

View Spec Sheet
  • Input Voltage: 12V-24V DC
  • Output Power: 5A x 4CH
  • Output Channels: 4
  • Input Connection: 2 Wire (Positive + / Negative -)
  • Output Connection: 5 Wire RGBW (Positive+)
  • Max Load: 240 Watts (12V DC), 480 Watts (24V DC)
  • Working Temperature: -4° F ~ 140° F
  • Environment: Dry Location
  • IP Rating: IP20
  • Control Range: RF Remote Control Radius up to 90 feet (line of sight)
  • Previous Mode on Power Cycle: Yes
  • Static Color Choices: 4 trillion +
  • Color Changing Modes: 37 Modes
  • Required: 12V DC or 24V DC LED Power Supply

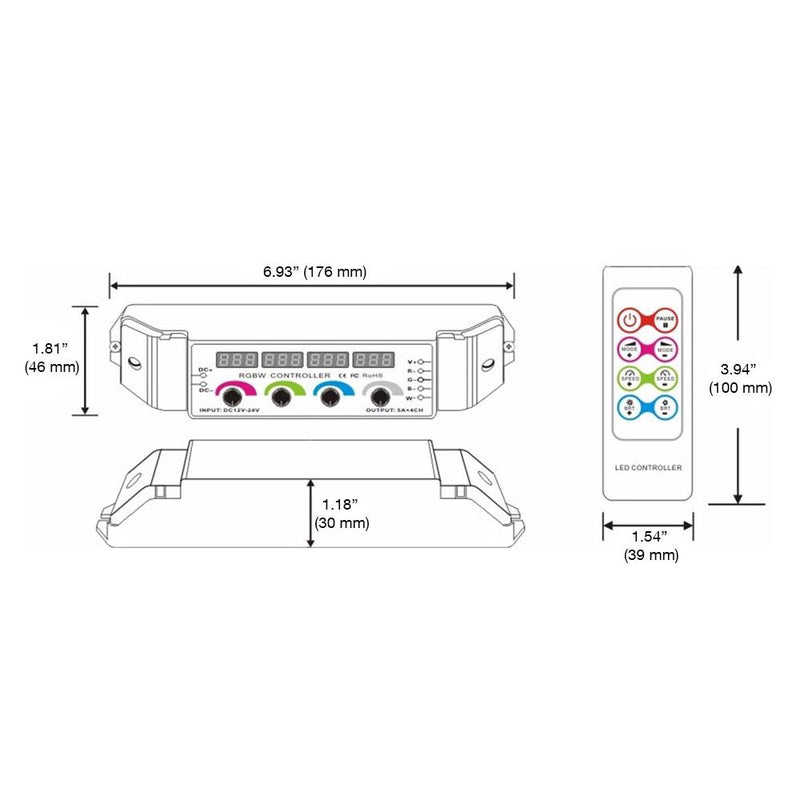

  • Controller Dimensions: 6.9 in. L x 1.8 in. W x 1.8 in. H
  • Controller Dimensions (metric):  176 mm L x 45 mm W x 30 mm H
  • Remote Dimensions: 3.94 in. L x 1.54 in. W x 0.25 in. H
  • Remote Dimensions (metric):  100 mm L x 39 mm W x 6 mm H
  • Labels and Listings: CE, FCC, RoHS
  • Warranty: 2 Year Limited
