LED RGBW Touch Controller with Remote

$29.68
SKU EL-FLRGB-W-CON

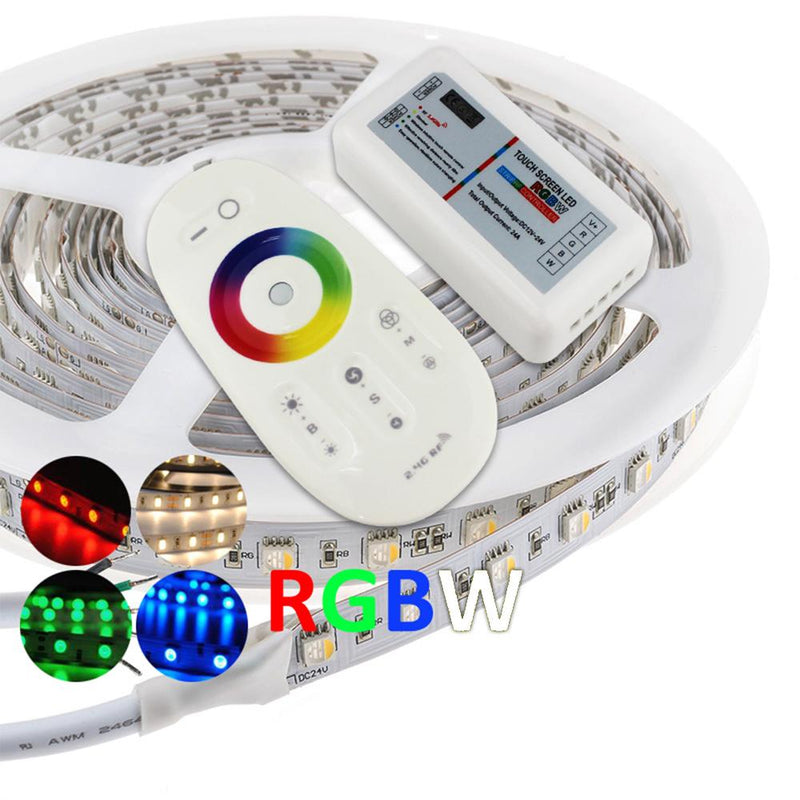

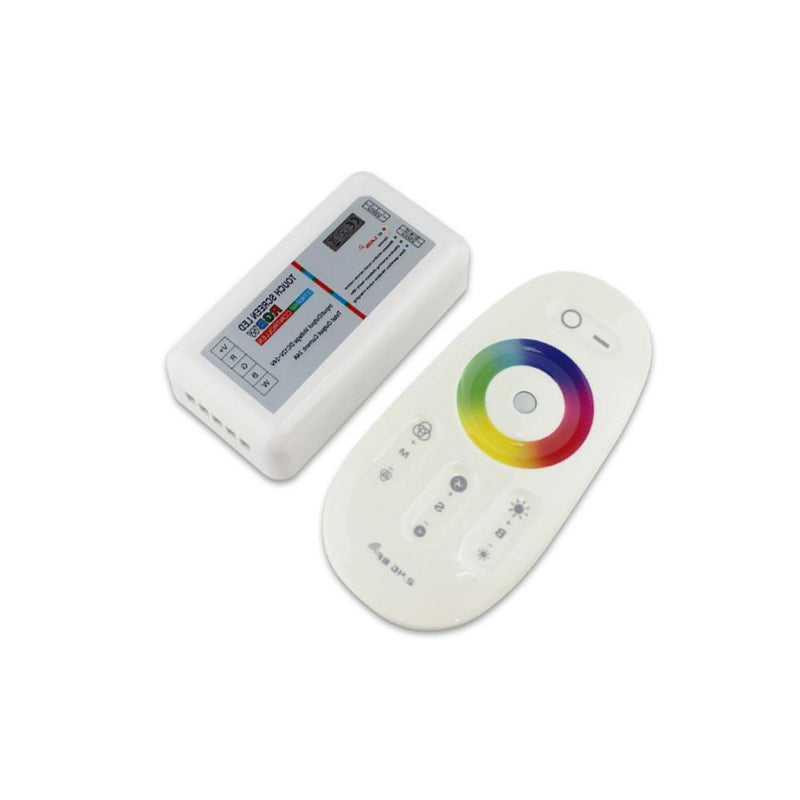

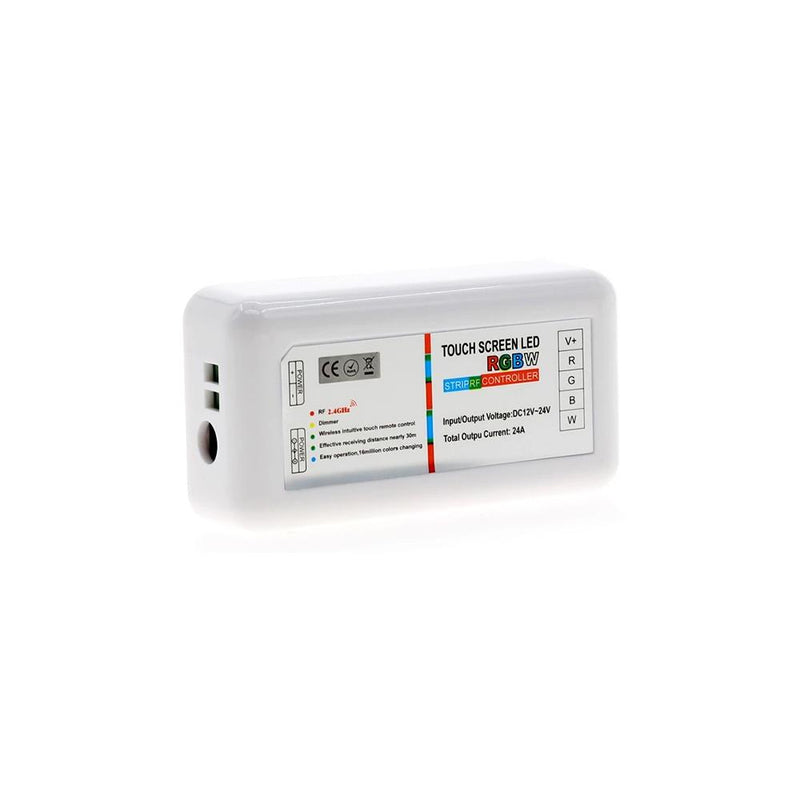

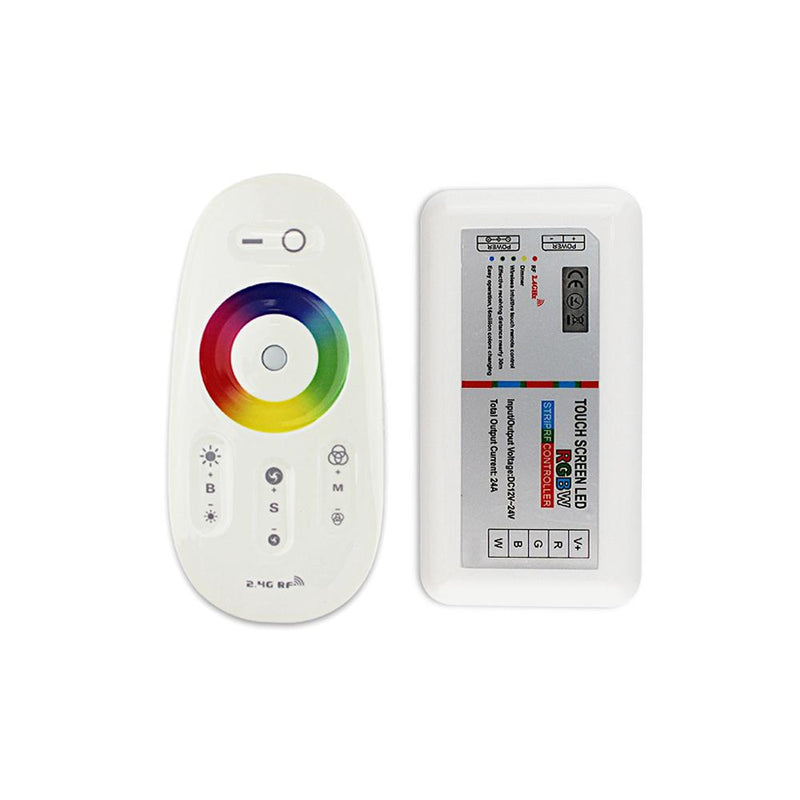

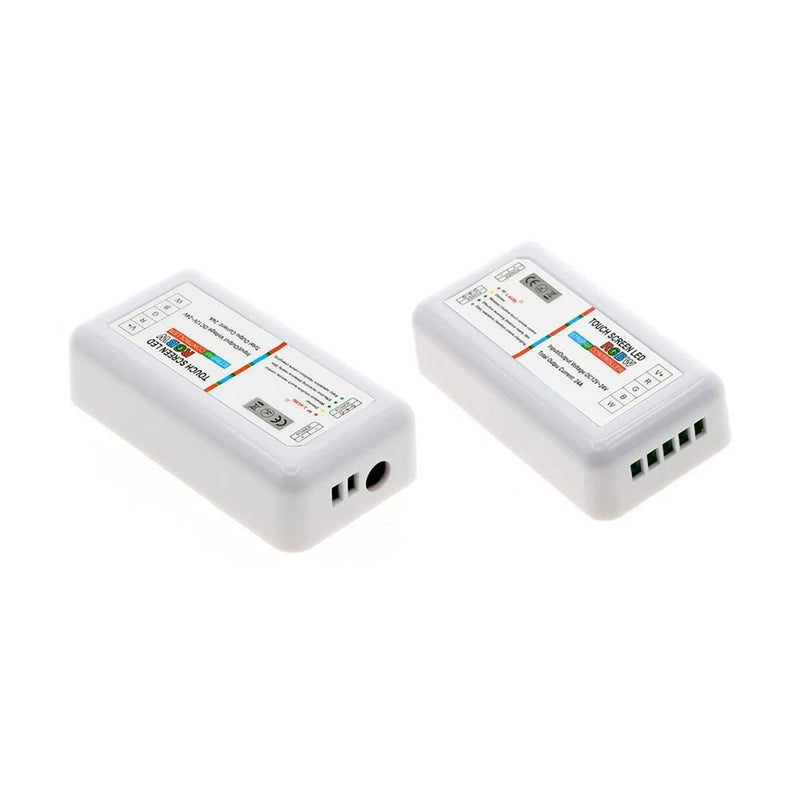

The RGBW Touch Controller is easy to install and use. It is perfectly designed for Elumalight RGB or RGBW LED tape and strip lights, mixing RGB and white. The RGBW Touch Controller with Remote Unit contains 12 dynamic modes, 8 dimming scales, 8 dimming speeds and comes with a remote.

Need help with your RGBW LED lighting applications? Our lighting experts are here to help! Contact us today for assistance with lighting plan or installation instructions.

* Required: Requires a non-dimmable 12V DC or 24V DC LED Driver.

Key Features

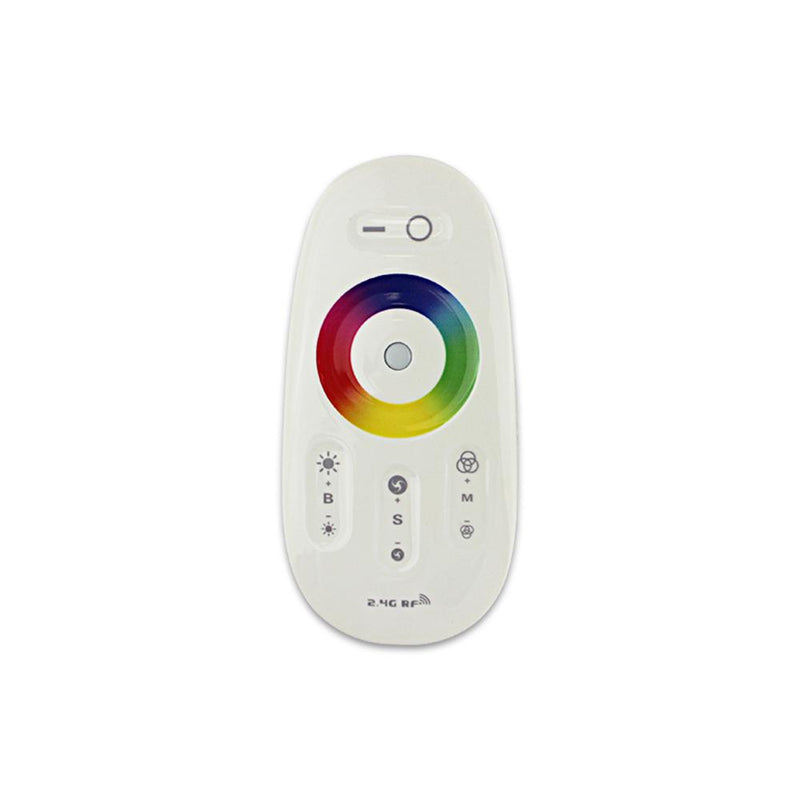

  • The remote controller allows for real-time color adjustment of RGB or RGB+W lights.
  • The touch-sensitive color selector wheel allows you to set your lights to any desired color.
  • Select custom LED colors with the color wheel remote, fade or step through colors, cycle through modes, adjust speed and brightness.
  • Radiofrequency remote control works through walls with a range up to 100 feet.
  • Built-In Power off memory function.

Applications

  • Trade Show & Exhibit Lighting
  • Retail Display Lighting
  • Architectural Lighting
  • Hotels, Casinos, and Clubs
  • Custom Lighting Shows
  • Stage Lighting

Specifications

View Spec Sheet
  • Input Voltage: 12V-24V DC
  • Output Power: 6A x 4CH
  • Output Channels: 4

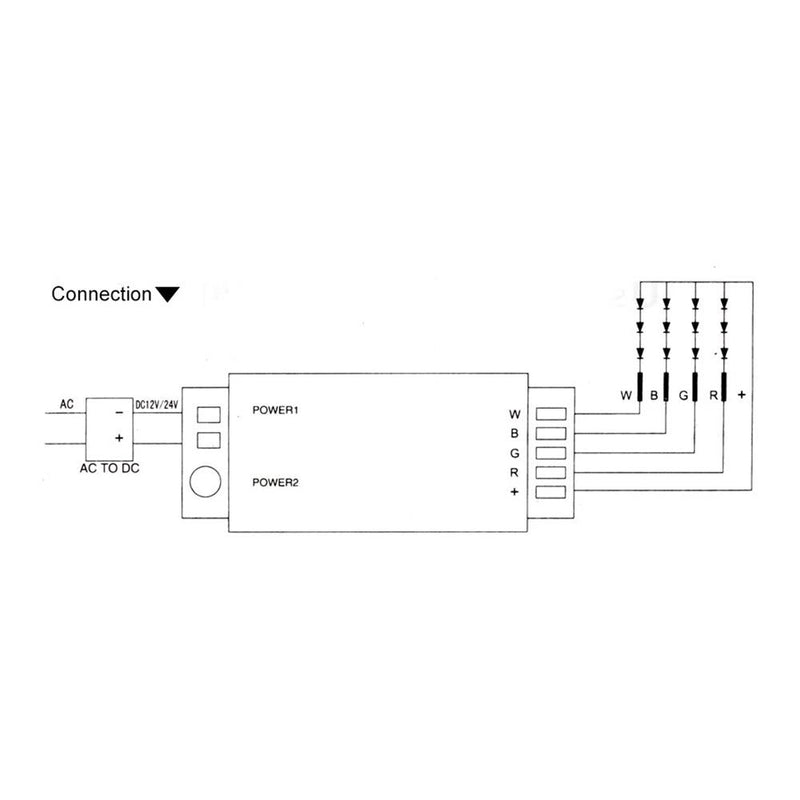

  • Input Connection: 2 Wire (Positive + / Negative -)
  • Output Connection: 5 Wire RGBW (Positive+)
  • Max Load: 288 Watts (12V DC), 576 Watts (24V DC)
  • Environment: Dry Location
  • IP Rating: IP20
  • Remote Battery Type: 2 x AAA
  • Control Range: RF Remote Control Radius up to 100 feet (line of sight)
  • Previous Mode on Power Cycle: Yes
  • Required: 12V DC or 24V DC LED Power Supply
  • Controller Dimensions: 3.3 in. L x 1.8 in. W x 0.8 in. H
  • Controller Dimensions (metric):  85 mm L x 45 mm W x 20 mm H
  • Remote Dimensions: 4.3 in. L x 2 in. W x 0.8 in. H
  • Remote Dimensions (metric):  110 mm L x 52 mm W x 20 mm H
  • Labels and Listings: CE, RoHS
  • Warranty: 2 Year Limited
