LED CCT Flex Grid Light Sheet

SKU EL-FGP-CCT-24V-10W
Original price $78.75 - Original price $78.75
Original price
$78.75
$78.75 - $78.75
Current price $78.75

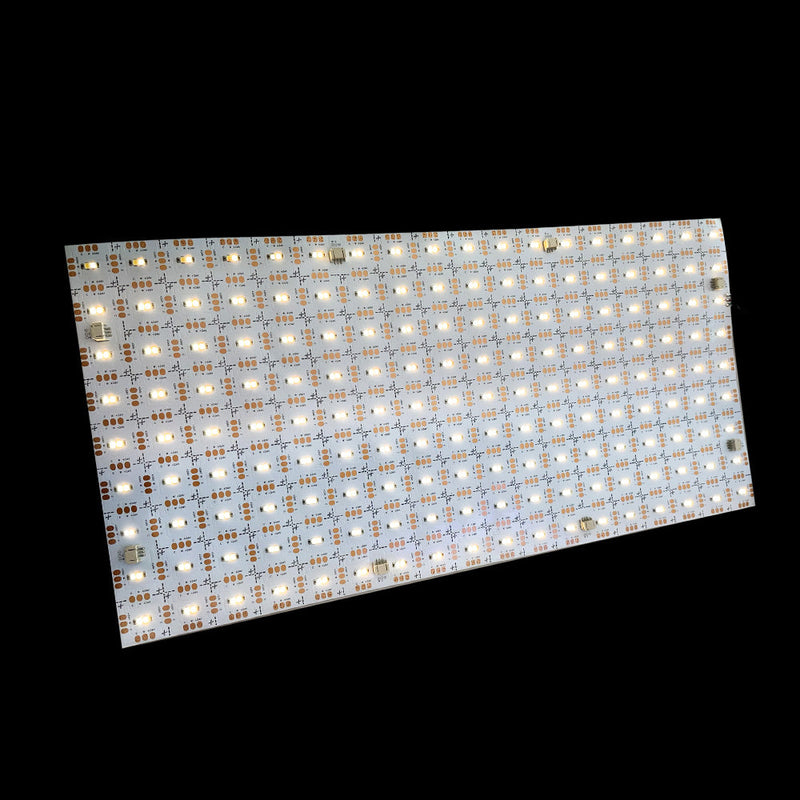

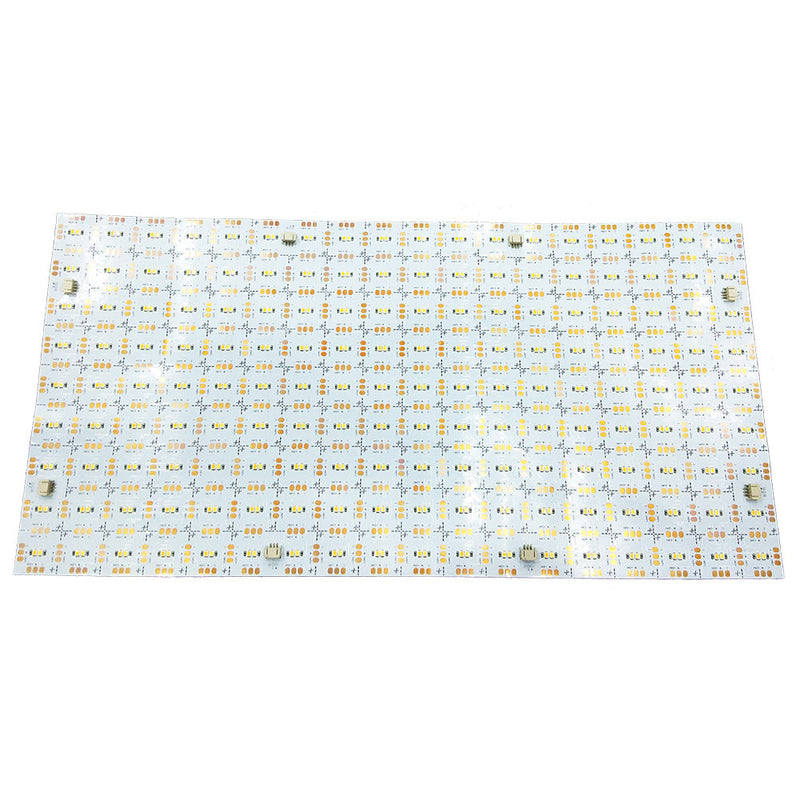

The LED CCT Flex Grid Light Sheet is flexible and can be used where any continuous light source is needed. It is field-cuttable vertically or horizontally at its cut marking, in unique shapes, or around obstructions.

With a profile of less than 1/8”, these sleek LED CCT Flex Grid Light Sheets allow installers to utilize them in areas less than 1/2” deep and go where traditional fluorescents and other bulky light sources cannot.

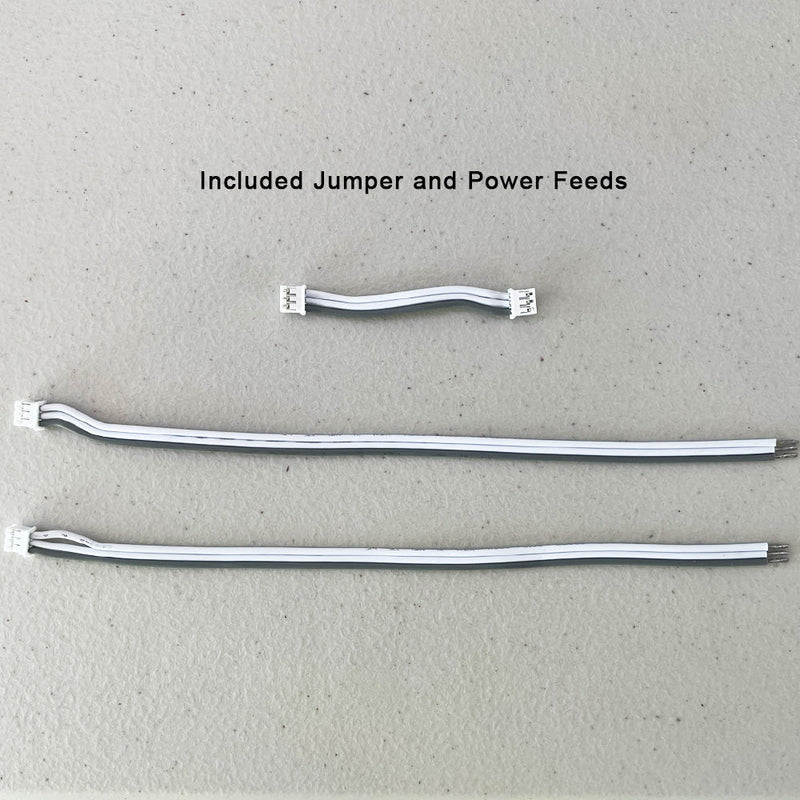

Powers easily by daisy-chaining with integral push-in connectors or power from any square at the soldering points provided. 3M-construction adhesive adheres to most surfaces (flat or curved). Available in 2700K-6500K CCT Tunable.

Need help with your LED lighting applications? Our lighting experts are here to help! Contact us today for assistance with the lighting plans or installation instructions.

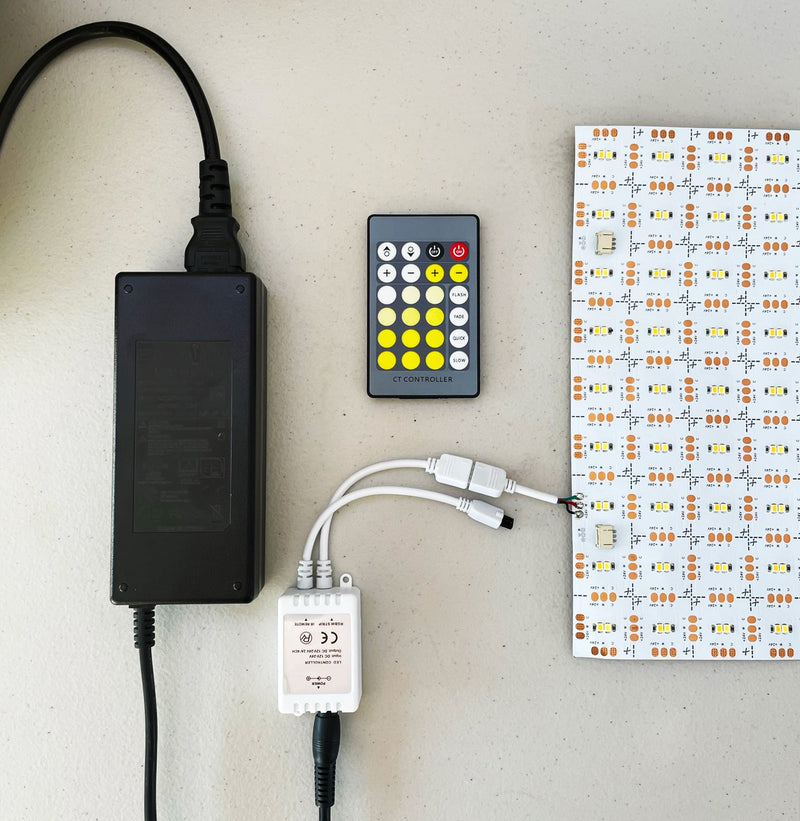

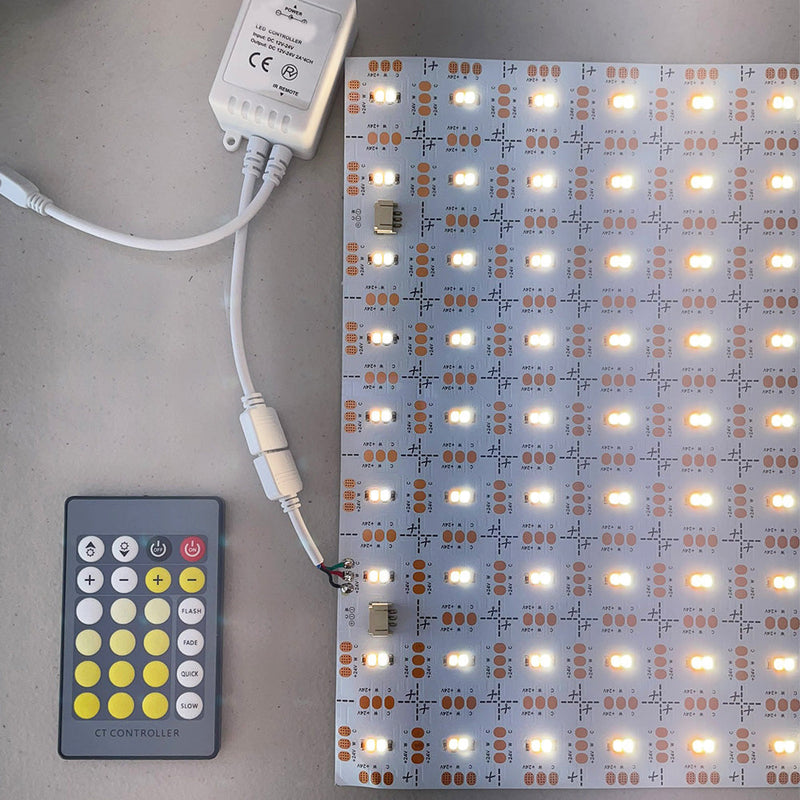

Requires EL-12-CCT-ECO LED CCT Mini controller and a 24-volt DC driver

Key Features

  • Commercial-grade flexible light sheet creates a uniform and linear illumination
  • Easy installation in any minimal-size application with no heat sink needed.
  • Field-cuttable vertically or horizontally
  • Versatile mounting options with 3M adhesive backing
  • Can be installed in either exposed or fully enclosed spaces
  • Specially rated for installation in the storage area of a clothes closet.

Applications

  • Lighting for Tradeshows, Exhibition, and Retail Displays
  • Retail Stores, Restaurants, Casinos, Lounges, and Residential Homes
  • Backlighting Graphics or Signage
  • Custom DIY projects

Specifications


Brightness 6600-6800 Lumen
Power (Watts) 10W or 72W per sheet
Input Voltage 24V DC
LED CCT Selectable 2700K-6500K
CRI 95+
LED Chip Size
SMD 2835
Amount of LED Chips
324 per sheet
Dimmable
Yes, with a dimmable driver
IP Rating IP20
Environment Indoor Use - Dry Location
LED Beam Angle 120°

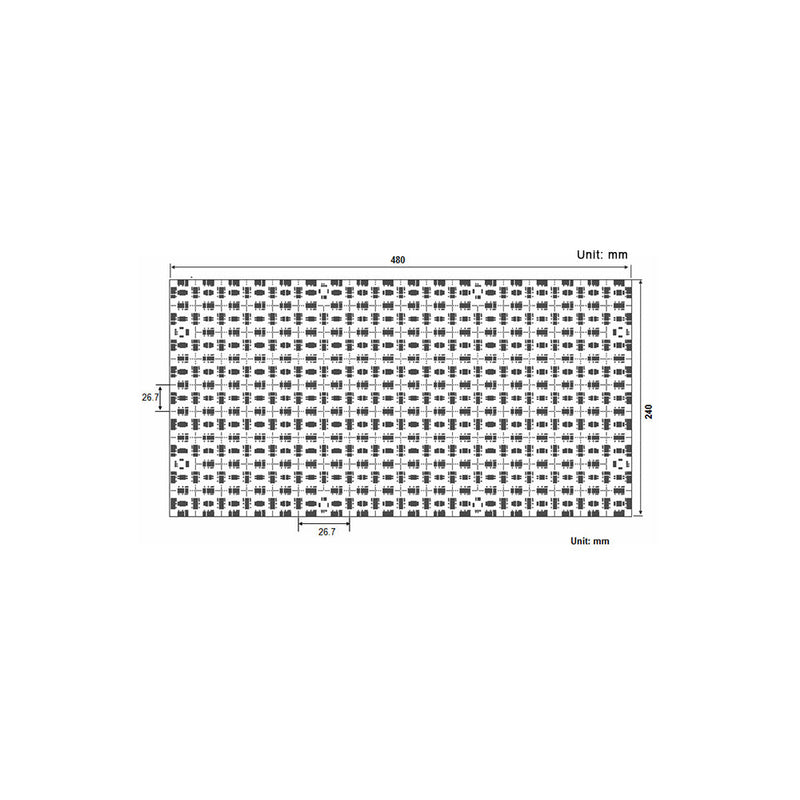

Length 18.89 in / 480 mm long
Width
9.45 in / 240 mm wide
Thickness
>1 mm
Required Power Supply
24V DC LED Drivers
Manufacturer Elumalight
Rating ETL Listed
Avg. Lifetime ± 30,000 - 50,000 hours
